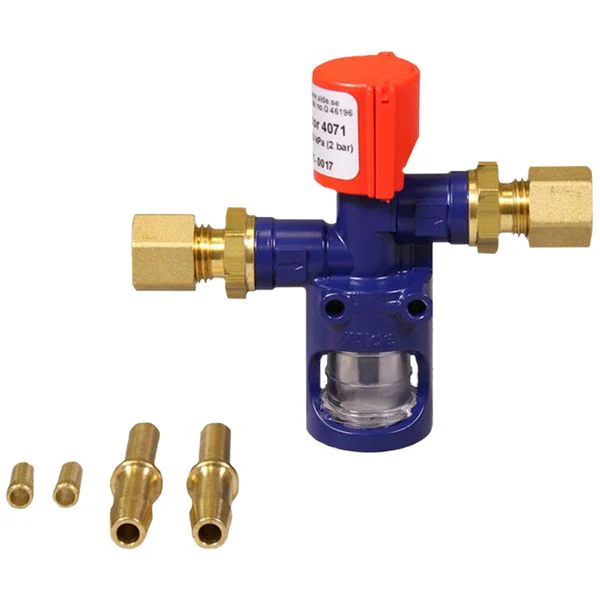

Alde Gas Bubble Leak Detector

This leak detector is designed to be connected close to the outlet side of the gas regulator. It then provides an instant visible check for leaks. Bubbles in the sightings chamber indicate a leak downstream of the bubble tester. Supplied complete with fluid. It may be used in boats, caravans and other applications. The Boat Safety Scheme states that "an approved bubble tester is highly recommended".

Technical Specification:

Dimensions (HxWxD): 90 x 60 x 30mm

Max. working pressure: 2 bar (29.4psi)

Capacity: 12kW

Pipe connections: 8mm/10mm compression inlet & outlet

Part No. N-29001 - 8mm

Part No. N-29002 - 10mm

Spare Fluid: N-29003

Capacity Description	12kW
Material	Copper
Compression Fitting Size	8mm
Thread Connection	Compression
Thread Gender	Male
Pressure Rating	Max Operating: 29.4 PSI (2 Bar)
Brand	Alde
Height Description	90mm (3.54")
Width	60mm
Depth	30mm
