Allen Deck Bush with Stainless Insert

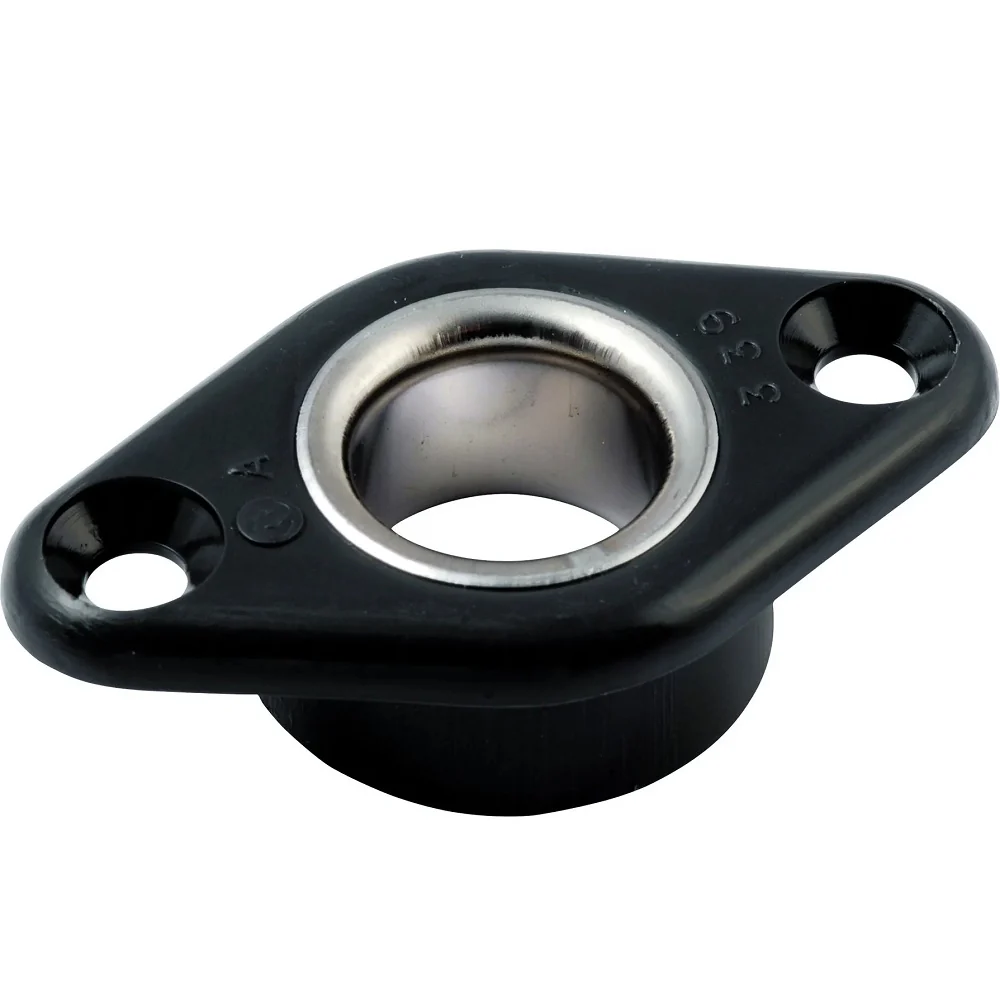

Flanged nylon deck bush with stainless steel insert.
Also known as a through deck fairlead or bush, rope guide and thru-deck bush.
Flanged deck bushes feature a wider surface area for more protection and two fixing holes. This style of bush allows for a simple installation which only requires two screws and no messy bonding agent or silicone.
Typically used to guide a rope or wire through a surface whilst protecting both the rope and the surface from wear.
To install, simply drill a hole to match the external diameter of the bush and then push the bush into the hole. Use two screws or bolts to hold this style of bush in place.

Injection moulded for a lightweight and economical product. The stainless steel insert protects the nylon bush from additional wear. Making it a good choice for pairing with fast running lines, or lines which are turning an angle through the bush.

• A4039 Fixing Centres 29.3mm, dia 3.9mm, ID 6.6mm, OD 19mm
• A4239 Fixing Centres 32.5mm, dia 4.5mm, ID 11.4mm, OD 21.5mm
• A4339 Fixing Centres 35.4mm, dia 4.5mm, ID 13.8mm, OD 24.5mm
• A4139 Fixing Centres 44.5mm, dia 3.95mm, ID 20.5mm, OD 33mm
