Barton Size 3 45mm Single Stanchion Block 03190

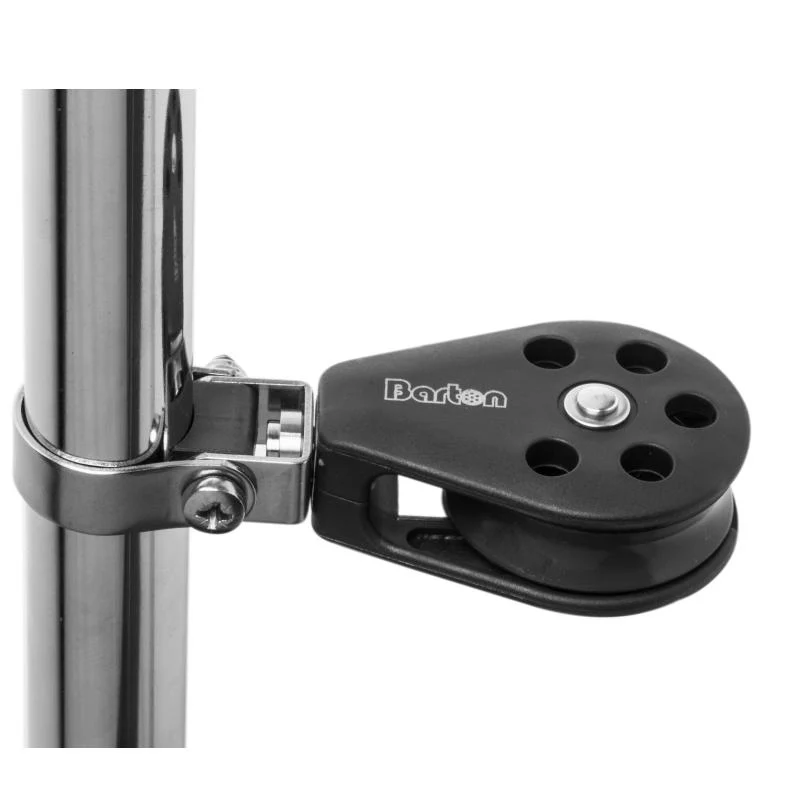

Barton Marine Size 3 Single Block with Stanchion Lead – Ball Bearing Sheave (Part No. 13190)

Precision-engineered for performance and durability, the Barton Marine Size 3 Single Block with Stanchion Lead features a smooth-running ball bearing sheave and a compact design, making it ideal for use on dinghies, dayboats, and lightweight cruisers. Part of the latest Barton Marine block range, it benefits from a modern aesthetic and rugged build — including dark slate glass-loaded nylon side plates and a continuous stainless steel frame for enhanced strength and reliability.

With a 45mm ball bearing sheave and a stanchion lead for clean deck layouts, this block excels in applications such as mainsheets, vangs, and lead blocks, or wherever a lightweight yet powerful purchase system is needed.

---

Key Features:

• Size 3 single block with stanchion lead
• Ball bearing sheave for reduced friction and smooth operation
• Sheave size: 45mm x 13mm
• Max rope diameter: 10mm
• Safe working load: 400kg
• Break load: 800kg
• Max rolling load: 270kg
• Length: 110mm
• Weight: 96g
• Colour: Dark Slate
• Barton Marine Part Number: 13190
• EAN: 5035088083152

---

Combining compact form with dependable power handling, the Barton 13190 block is a reliable choice for high-performance small craft rigging systems.
