Blue Sea Mini Switch On/Off with Knob 300A

M-Series Battery Switch
300 Amp continuous rating for outboards and small gasoline or diesel engines.
Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
One-piece terminal stud design never loosens over time
7/8" (22.22mm) stud length accepts multiple cable terminals
Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction

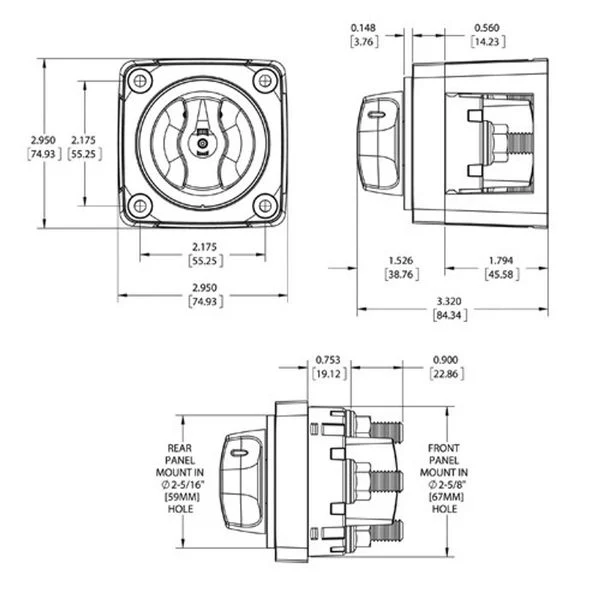

Case design allows surface, rear, or front panel mounting options
Paralleling Link BUS 8-29159

Specifications:

• Terminal Stud Size: 3/8" 16 (M10)
• Terminal Stud Torque: 120 in-lbs
• Mounting Holes: Accept #10 screw
• Cable Size to Meet Ratings: 4/0 AWG (95mm2)
• Cable Clearance: 1.12" (28.4mm)
