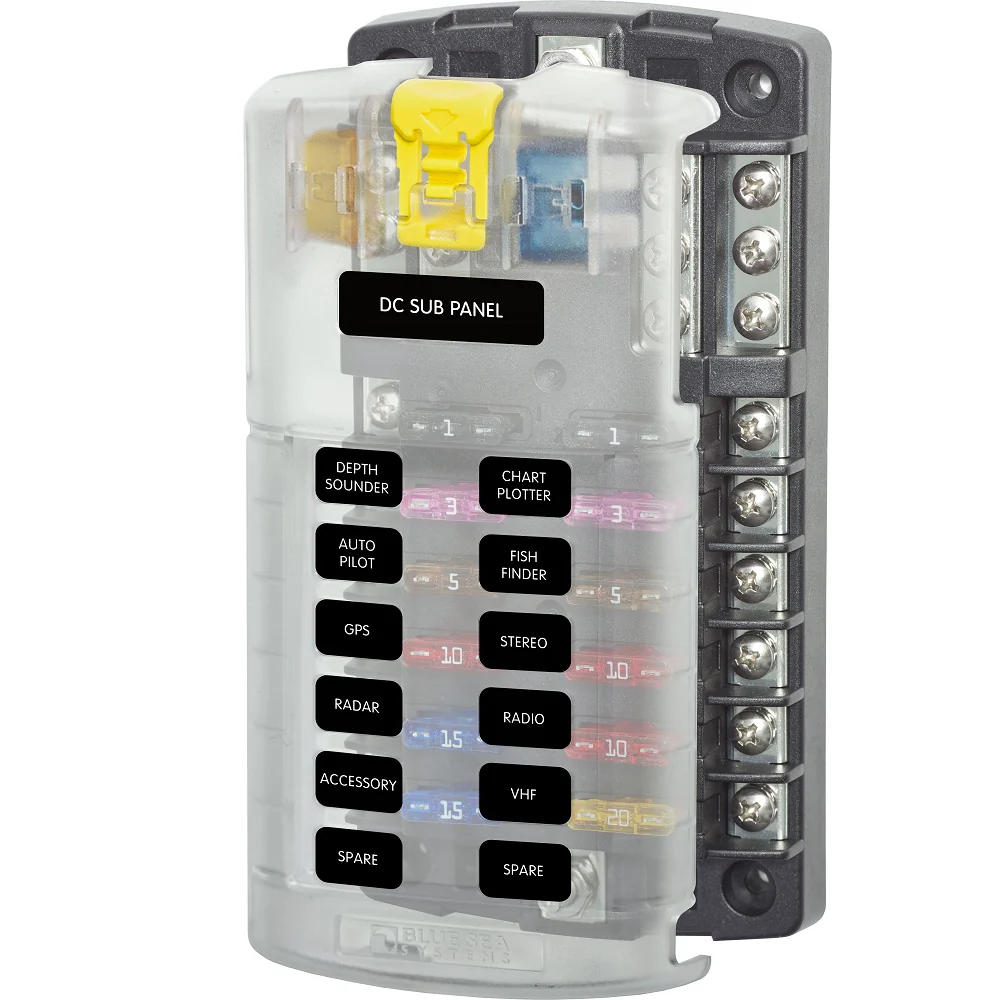

Blue Sea Systems ST Blade Fuse Block - 12 Circuits with Negative Bus and Cover
ST Blade Fuse Block - 12 Circuits with Negative Bus and Cover
5026
Consolidates branch circuits and in-line fuses
Positive distribution bus with #10-32 stud
Can be used for 24-hour circuits
Models available with or without a cover
Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification
Fuse blocks with covers include 20 write-on circuit labels
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Accepts ATO® and ATC® fast acting blade fuses
Fuses sold separately
5026
Consolidates branch circuits and in-line fuses
Positive distribution bus with #10-32 stud
Can be used for 24-hour circuits
Models available with or without a cover
Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification
Fuse blocks with covers include 20 write-on circuit labels
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Accepts ATO® and ATC® fast acting blade fuses
Fuses sold separately
| Circuits | 12 |
Maximum Amperage
|
100A per block 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Negative Bus | #10-32 Stud |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N·m) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
| Weight | 0.75lb (0.34 kg) |
$92.50
Blue Sea Systems ST Blade Fuse Block - 12 Circuits with Negative Bus and Cover—
$92.50
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
ST Blade Fuse Block - 12 Circuits with Negative Bus and Cover
5026
Consolidates branch circuits and in-line fuses
Positive distribution bus with #10-32 stud
Can be used for 24-hour circuits
Models available with or without a cover
Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification
Fuse blocks with covers include 20 write-on circuit labels
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Accepts ATO® and ATC® fast acting blade fuses
Fuses sold separately
5026
Consolidates branch circuits and in-line fuses
Positive distribution bus with #10-32 stud
Can be used for 24-hour circuits
Models available with or without a cover
Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification
Fuse blocks with covers include 20 write-on circuit labels
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Accepts ATO® and ATC® fast acting blade fuses
Fuses sold separately
| Circuits | 12 |
| Maximum AmperageÂ
|
100A per block 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Negative Bus | #10-32 Stud |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N·m) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
| Weight | 0.75lb (0.34 kg) |
