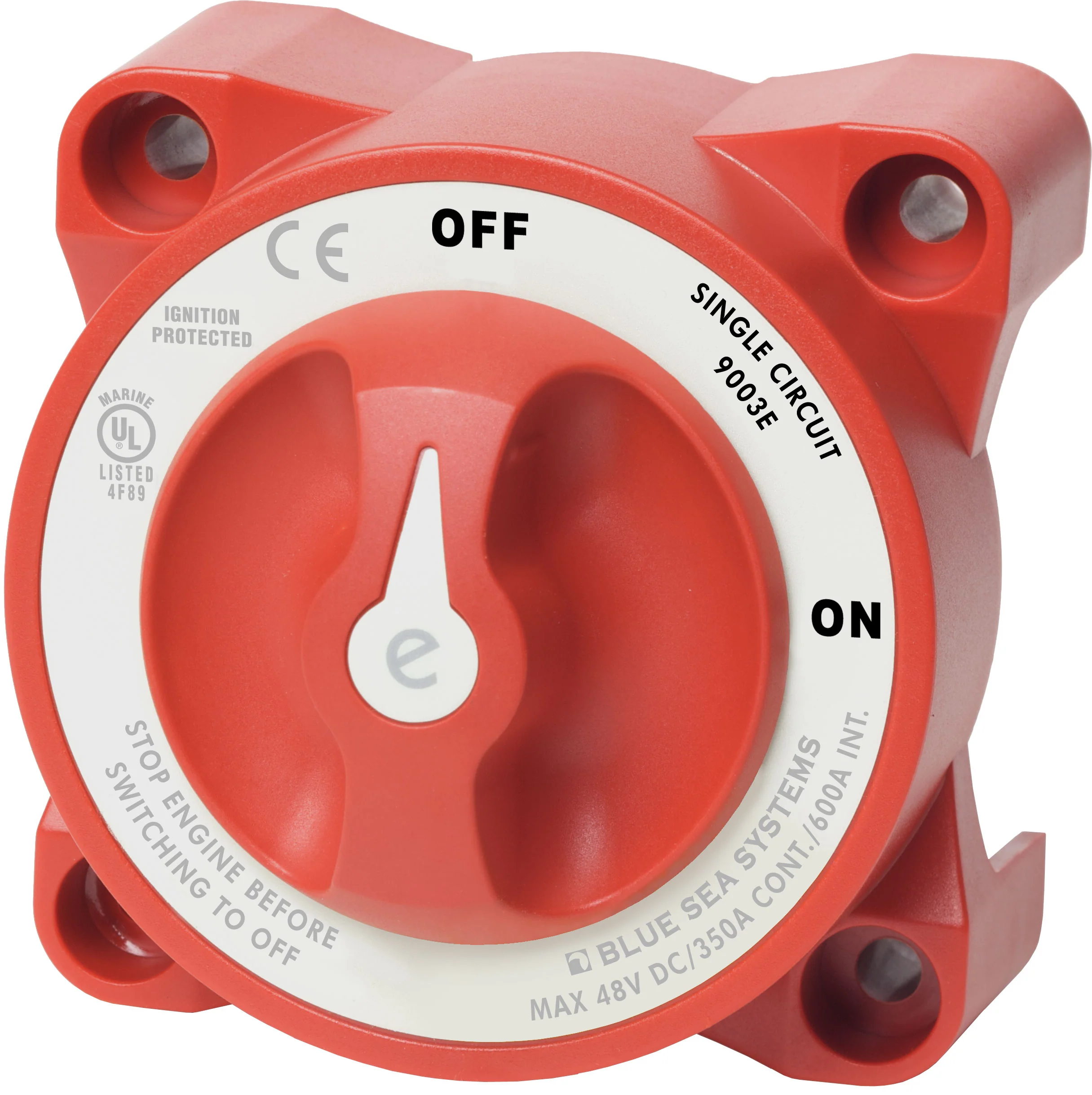

Blue Seas e-Series On Off Battery Switch

e-Series On Off Battery Switch
9003e
Switches a single battery to a single load group
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting

Specifications
Switch Type	Single Circuit ON-OFF
Color	Red
Switch Positions	2
Battery Combine	No
Alternator Field Disconnect	No
Maximum Voltage	48V DC
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous Rating	350A
Intermittent Rating	600A (5 min)
Cranking Rating 30 sec	1200A
Battery Inputs	1
Cable Clearance For 4/0 AWG Cables	1.10in (27.94 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²)
Mounting Holes	Accept 1/4" (M6) Screw
Stud Material	Tinned Copper
Terminal Stud Size	3/8" - 16 (M10)
Weight	0.95lb (0.43 kg)
Weight	1.30lb (0.59 kg)
