Fusion MS-RA60 Stereo and EL Classic Speaker Kit

MS-RA60 Stereo and EL Classic Speaker Kit

The MS-RA60 is the most economical marine stereo from Fusion yet, featuring modern aesthetics, Multi-Zone™ Technology in two zones and advanced connectivity options in a compact form factor.

• MS-RA60 marine stereo

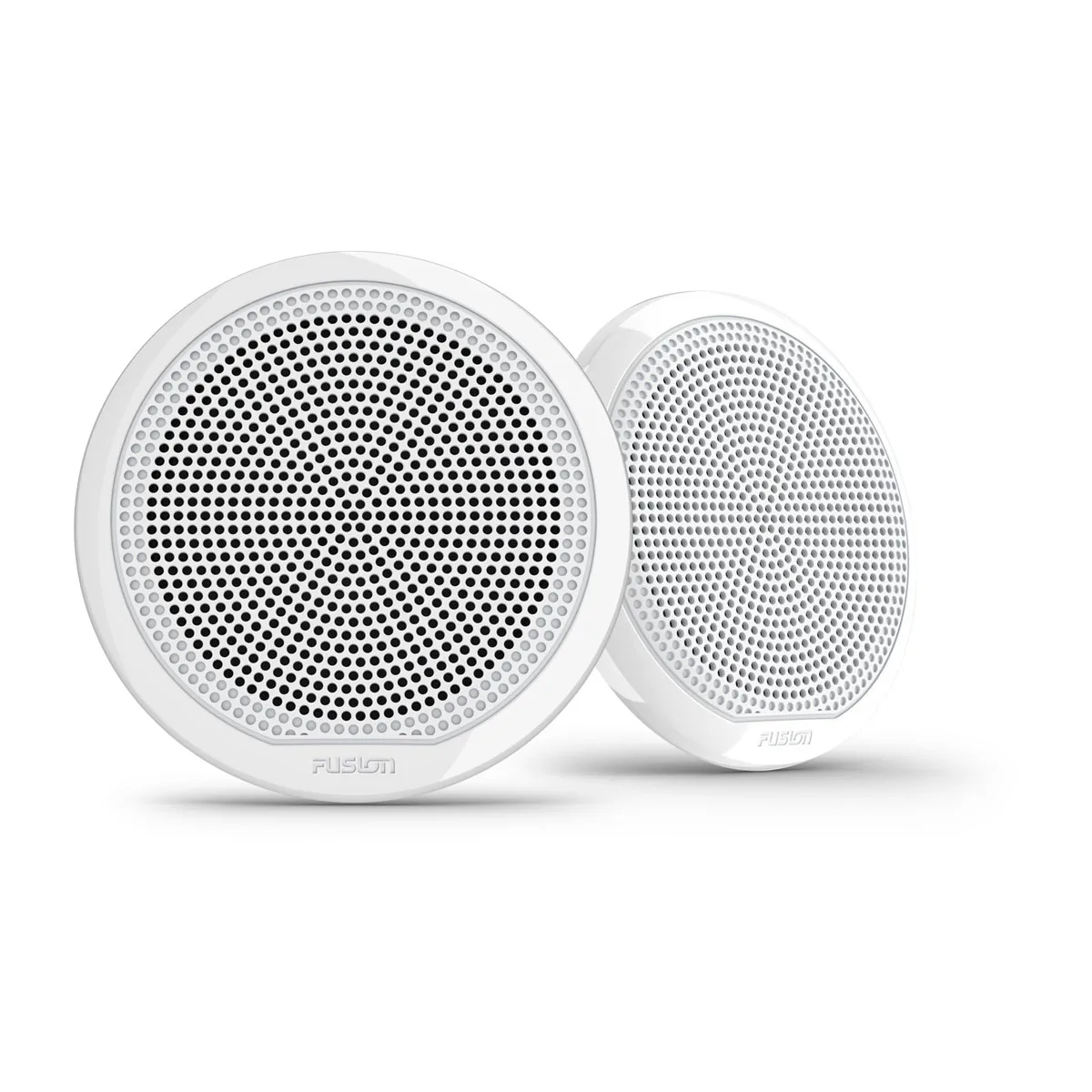

• One pair of EL Series classic white marine speakers
• AM/FM stealth antenna
• Two 19 ft (6 metres) speaker wires
• Dust cover
• Wiring harnesses and mounting accessories
  • Mounting gasket
  • Four 6-gauge, self-tapping screws
  • Two screw covers
  • Power and speaker wiring harness
  • Auxiliary-in, line-out, and subwoofer-out wiring harnesses
  • 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1″))

• Physical dimensions (HxWxD)	MS-RA60: 2.68″ x 6.18″ x 4.06″ (68 x 156.9 x 103.2 mm)
  Weight	MS-RA60: 11.1 oz (316 g)
  Water rating	IPX6 and IPX7 (front panel only, when properly installed)
  Power input	10.8-16 VDC
  Operating temperature range	32° to 122° F (0° to 50° C)
  Current (max.)	15 A
  NMEA 2000® LEN	MS-RA210: 1 (50 mA)
  Bluetooth® wireless range	Up to 30 ft (10 metres)
  ANT wireless range	Up to 10 ft (3 metres)
  Wireless frequencies/protocols	Bluetooth 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal
  Compass-safe distance	5.9″ (150 mm)
  Display	MS-RA60: 2.3″ perimeter bonded monochrome dot matrix LCD
  Built-in amplifier	Class-D (minimum 4 Ohm impedance)
  Peak power	MS-RA60: 180 W
  Rated power output (4 Ohm)	MS-RA60: 22 W rms x 4 @ 14.4 V input < 10% THD
  Fusion-Link™ control	MS-RA60: Yes (with smartphone and Garmin watch)
  Multi-Zone™ technology	2 zones
  Bluetooth wireless technology	Yes
  ANT wireless technology	Yes
  DAB+ ready	MS-RA60: Yes (DAB tuner built in)
  Multi-language interface	MS-RA60: Dutch, English, French, German, Italian, Spanish
  Software updates	MS-RA60: Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app
  Warranty	1 year
  Sources	MS-RA60: AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only)
  Auxiliary input	One RCA input (AUX)
  AM/FM radio	One Motorola antenna connector port
  Speaker	MS-RA60: 4 x speaker connections (2 zone amplified)
  RCA Pre-out (left, right and subwoofer)	MS-RA60: 1 zone (requires external amplification)
  Line out	MS-RA60: Zone 1 (L + R, requires external amplification)
  Subwoofer out	MS-RA60: Zone 1 (requires external amplification)
  Line out	MS-RA60: Zone 1 (L + R, requires external amplification)
  Subwoofer out	MS-RA60: Zone 1 (requires external amplification)

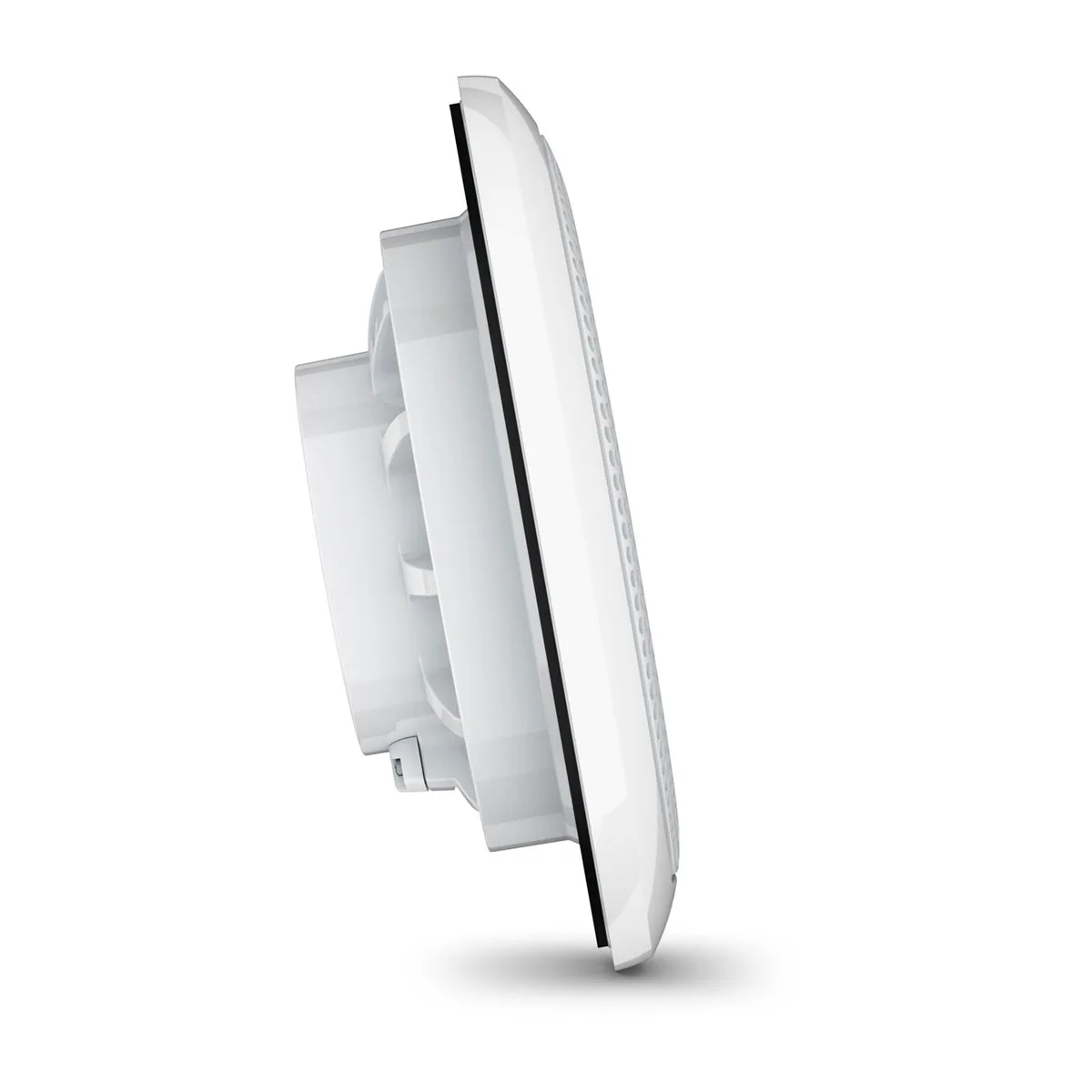

  Speaker Specifications
  Physical dimensions (HxWxD)	EL Classic Speaker: 6.93″ x 2.26″ (176 x 57.5 mm)
  Water rating	IP65
  Configuration	EL Speaker: Full range XS Speaker: Coaxial
  Speaker size	6.5″
  Peak power (Watts)	EL Speaker: 80 W
  RMS power (Watts)	EL Speaker: 20 W
  Sensitivity (1 watt/1 metre)	EL Speaker: 88 dB
  Frequency response	EL Speaker: 45 Hz-16 kHz
  Nominal impedance	4 ohm
  Recommended amplifier power (RMS)	EL Speaker: 20-40 W/Ch XS Speaker: 20-150 W/Ch
  Operating temperature range	32° to 122° F (0° to 50° C)
  Voice coil diameter	EL Speaker: 0.79″
  Cone material	Polypropylene cone with cloth surround
  Compass-safe distance	EL Speaker: 100″ (254 cm)
  Warranty	EL Speaker: 1 year
  Mounting diameter clearance	EL Speaker: 5.12″ (130 mm)
  Mounting depth clearance	EL Speaker: 1.69″ (43 mm)
