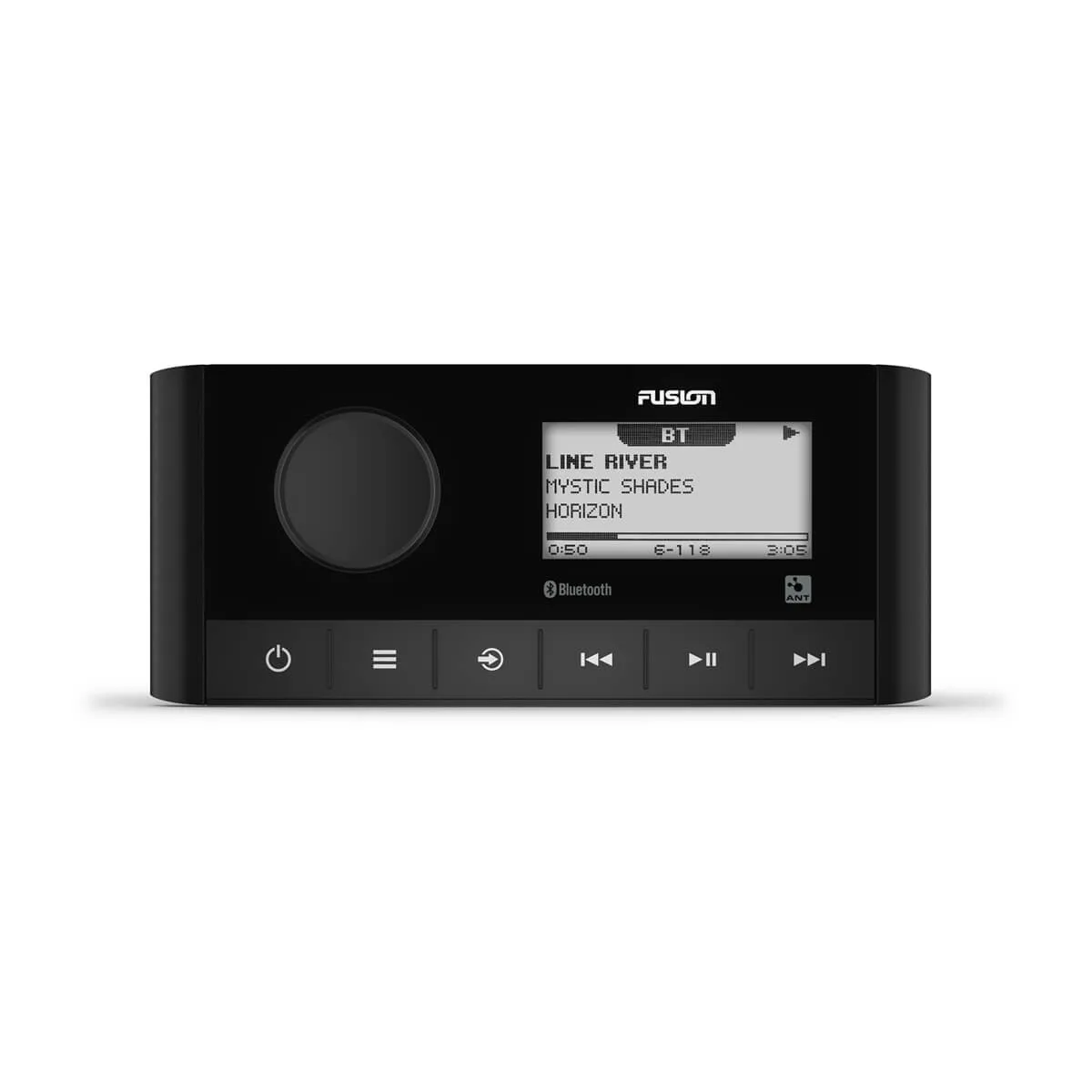

Fusion® MS-RA60 Marine Stereo
Upgrade your onboard music experience with Fusion® MS-RA60 Marine Stereo. With marine-specific design, this stereo is built to withstand harsh marine environments. Enjoy crystal clear sound and convenient control options, like Bluetooth connectivity and USB playback. Enhance your boating journey with Fusion® MS-RA60.
Bonded LCD improves durability and protection against condensation and fogging.
Built-in Class-D amplifier delivers higher efficiency and greater output.
Enjoy convenient over-the-air software updates via Bluetooth® technology from the Fusion® Audio app1.
Multi-Zone Technology gives you control of two separate audio zones.
Control your music from your compatible smart device or Garmin watch.
IN THE BOX
- Fusion® MS-RA60 Marine Stereo
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- Documentation
| Dimension | 156 x 68 x 103.2 mm (6.18″ x 2.68″ x 4.06″) |
|---|---|
| Weight | 316 g |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Display | 2.3″ perimeter bonded monochrome dot matrix LCD |
| Operating temperature | 0° to 50° C |
| Current (max) | 15 A |
Networking |
|
| Bluetooth® wireless range | Up to 30 ft (10 metres) |
|---|---|
| ANT® wireless range | Up to 10 ft (3 metres) |
| Wireless frequencies/protocols | Bluetooth®: 2.4 GHz @ +12 dBm nominal ANT®: 2.4 GHz @ +7 dBm nominal |
Audio |
|
| Amplifier | Class-D (4 ohm) |
|---|---|
Electrical features |
|
| Power Input | 10.8 - 16 VDC |
|---|---|
| Compass safe distance | 150 mm (5.9″) |
Stereo features |
|
| Peak power | 180 watts |
|---|---|
| Rated power output (4 Ohm) | 22 watts RMS x 4 @ 14.4 V input < 10% THD |
| Control | Yes (smart device and Garmin watch) |
| Multi-Zone™️ technology | 2 zones |
| Bluetooth® wireless technology | |
| ANT® wireless technology | |
| DAB+ ready | |
| Multi-language interface | Dutch, English, French, German, Italian, Spanish |
| Software updates | Over-the-air updates via Fusion-Link™ app |
Sources |
|
| Supported sources | AM, FM, Bluetooth®, AUX x1 DAB+ (available in Europe and Australia only) |
|---|---|
Connections |
|
| Auxiliary inputs (RCA) | 1 |
|---|---|
| AM/FM ports (Motorola antenna connector) | 1 |
| Speaker connections | 4 (2 zone amplified) |
| RCA Pre-out (left, right and subwoofer) | 1 zone (requires external amplification) |
| Line out | Zone 1: L + R (requires external amplification) |
| Subwoofer out | Zone (requires external amplification) |
Security Information |
|
| Security updates until at least (YYYY-MM-DD) | 2023-06-28 |
|---|---|
