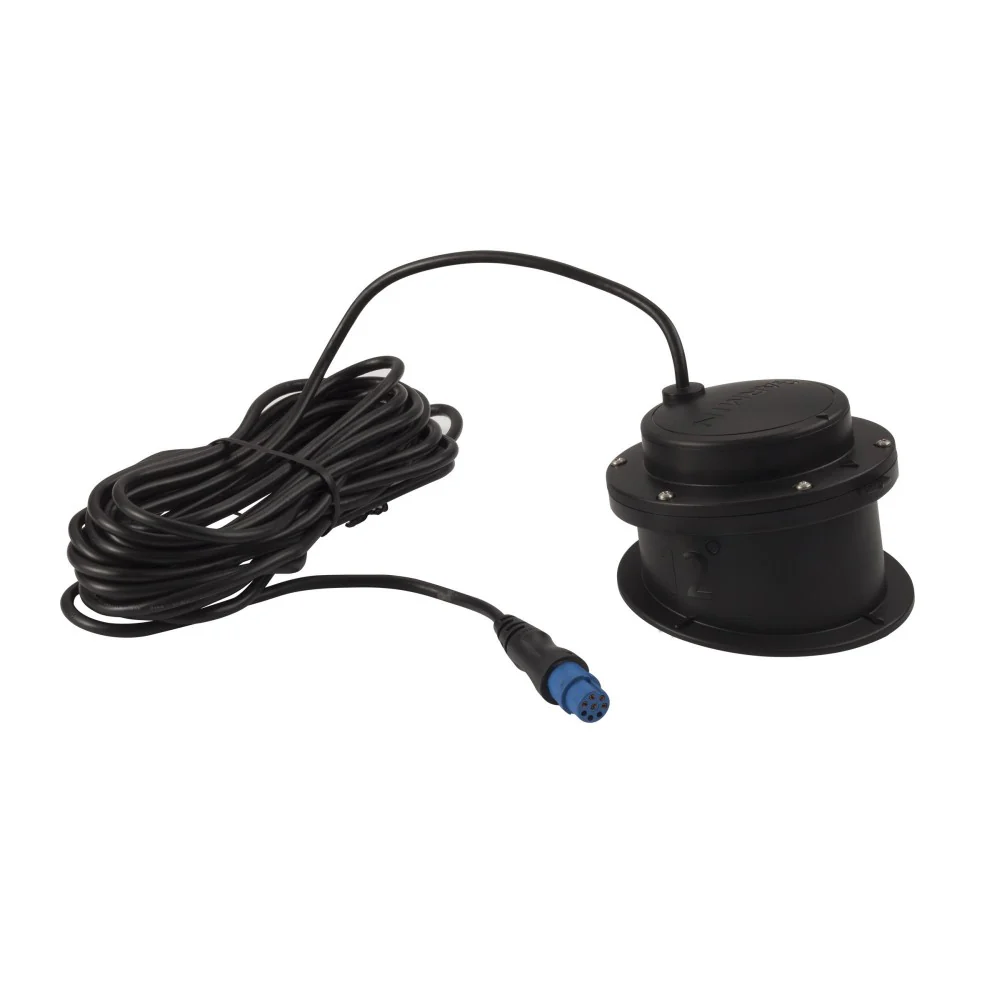

Garmin GT15M-IH Plastic In Hull Mid CHIRP Transducer 80-160khz

Garmin Plastic In Hull Mid-DHIRP Transducer GT15M-IH 80-160kHz

The Garmin GT15-IH is ideal for boaters who want to install the tranducer inside a fiberglass hull and not on the transom where cavitation could cause problems. It can be used with a hull deadrise angle between 0 and 25 degrees and is excellent for boats that want accurate depth reading whilst travelling at high speed.

The 8-pin tranducer with 4 plastic tanks features mid-band CHIRP traditional sonar i.e. 85-165kHz and has a power rating of 600W. It can be used in conjunction with a GT30-TM transducer and an adapter cable to maintain depth at high speeds and scanning capabilities at trolling speeds.

• Cable length: 20'
• Power: 600W
• Frequency: CHIRP Mid-band (85-165 kHz)
• Maximum depth: 1900' freshwater

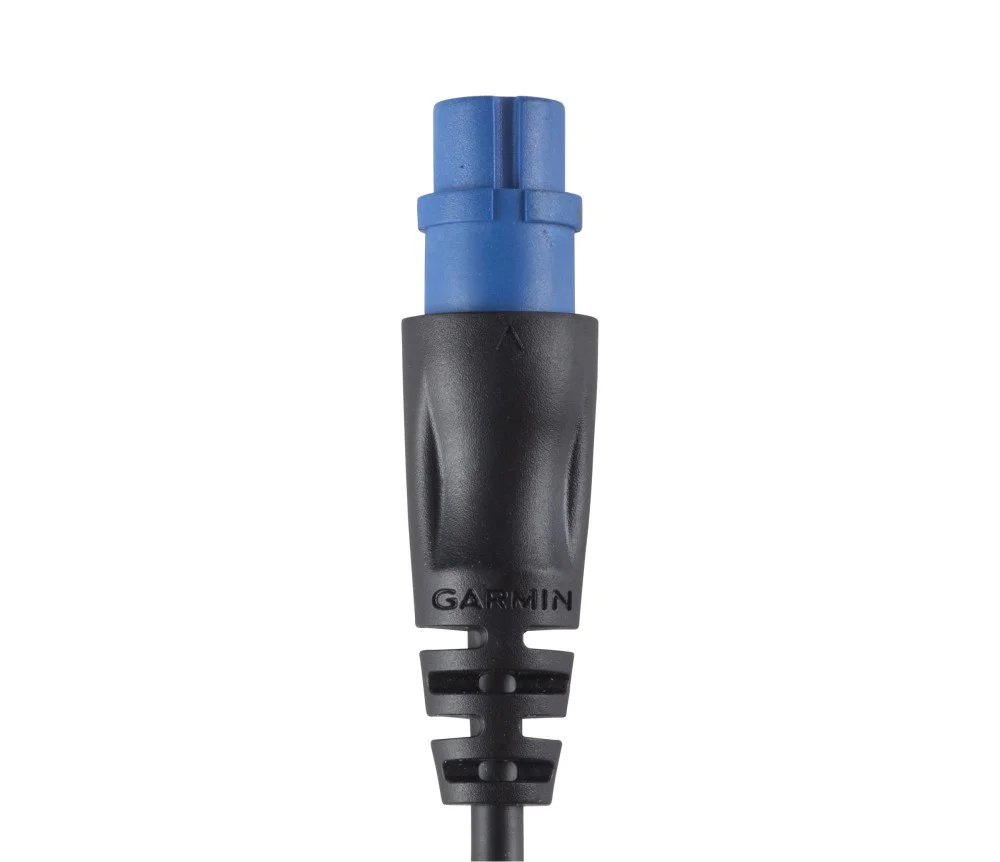

• Number of pins: 8
• Beamwidth: 24-13
• Depth/speed/temp: Depth
• Supported deadrise/Transom angles: 0-25 deadrise

Package includes;

• GT15M-IH transducer
• 4 plastic tanks
• Mounting hardware
• Documentation
