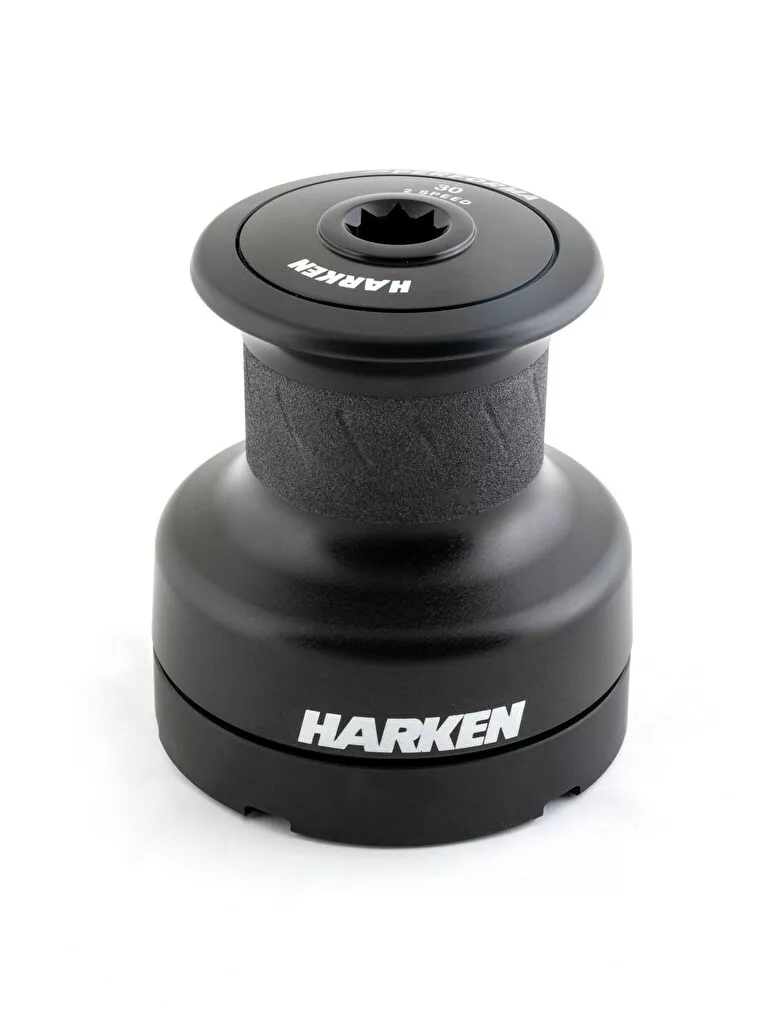

Harken 30 Plain-Top Performa™ Winch — AL/2 Speed
The Harken 30 Plain-Top Performaâ„¢ Winch combines lightweight aluminium construction with a robust two-speed mechanism, delivering exceptional performance for demanding sailing applications. Its plain-top design offers a sleek, unencumbered surface ideal for smooth line handling, while the advanced gearing ensures powerful, efficient trimming under varied loads. Engineered for reliability and precision, this winch supports expert sailors in maintaining optimal control and responsiveness on the water.
The new Performa 30.2 plain top winch is Harken's smallest two-speed winch. It was originally designed to meet the power requirements of the increasingly powerful Mini Transat 6.5 fleet. This version will replace our 32.2A winches which relied on previous generation engineering aboard boats like the J80.
Â
| Drum Ø (mm) | 73 mm |
| Drum Ø (in) | 2 7/8 in |
| Base Ø (mm) | 120 mm |
| Base Ø (in) | 4 3/4 in |
| Line entry height (mm) | 59 mm |
| Line entry height (in) | 2 3/10 in |
| Minimum line Ø (mm) | 6 mm |
| Maximum line Ø (mm) | 10 mm |
| Fastener circle (in) | 4 in |
| Fastener circle (mm) | 100 mm |
| Fasteners (mm) | M6 SH mm |
| Fasteners (in) | 1/4 SH in |
| Number of fasteners | 5 |
| Gear ratio - 1 | 1.1 |
| Gear ratio - 2 | 4.25 |
| Power ratio - 1 | 7.8 |
| Power ratio - 2 | 29.8 |
