Hawkeye Depthtrax Boat Mount Depth Finder

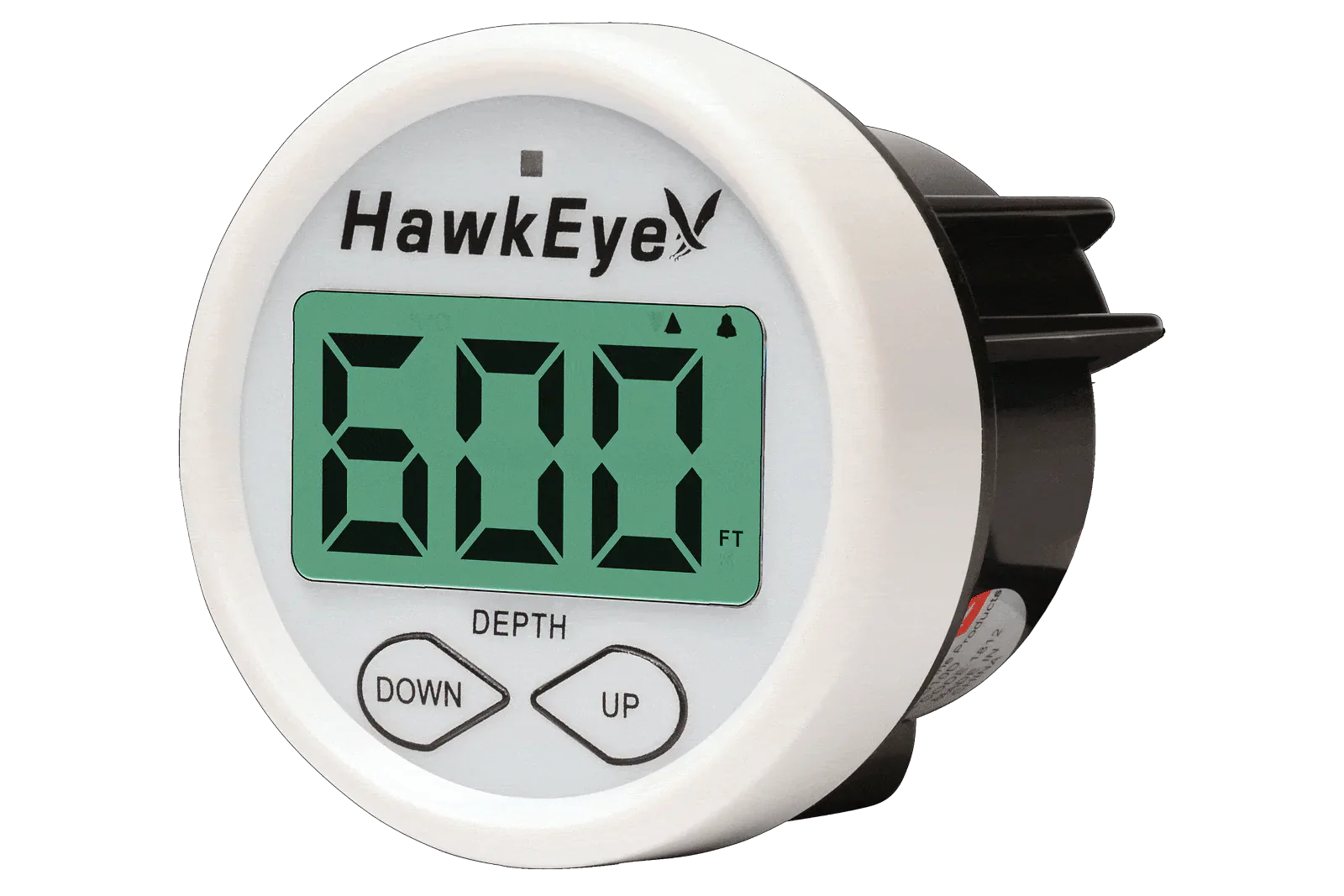

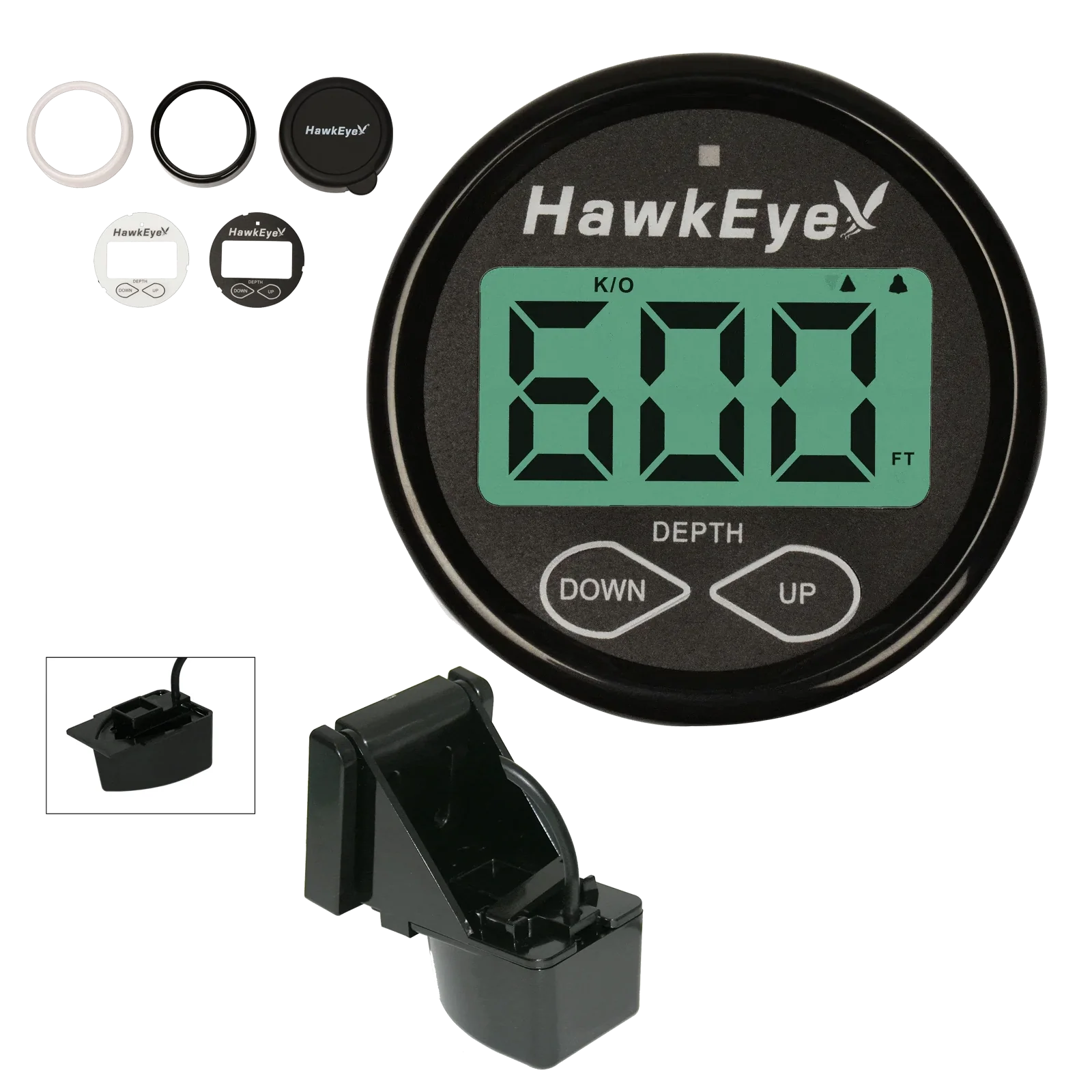

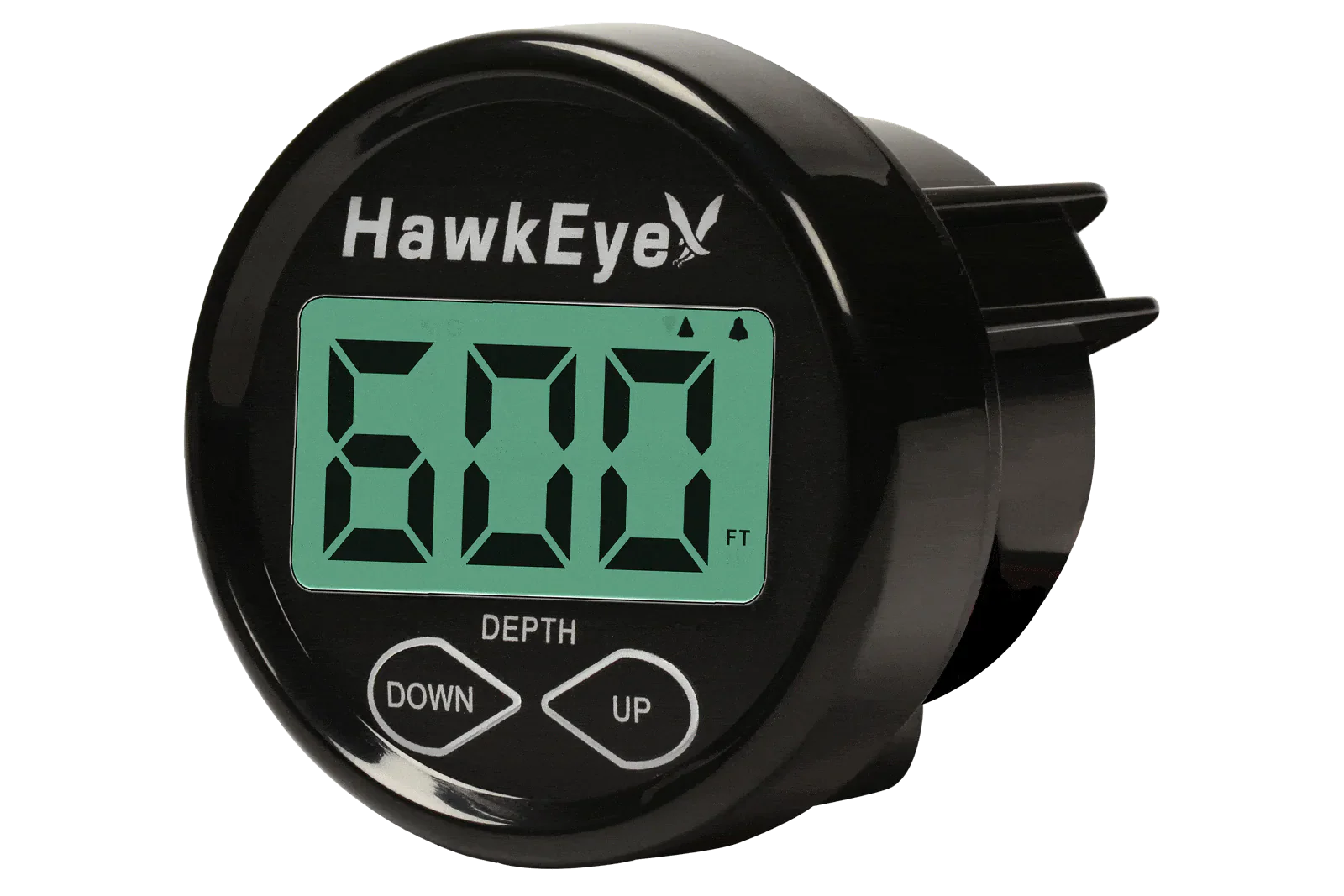

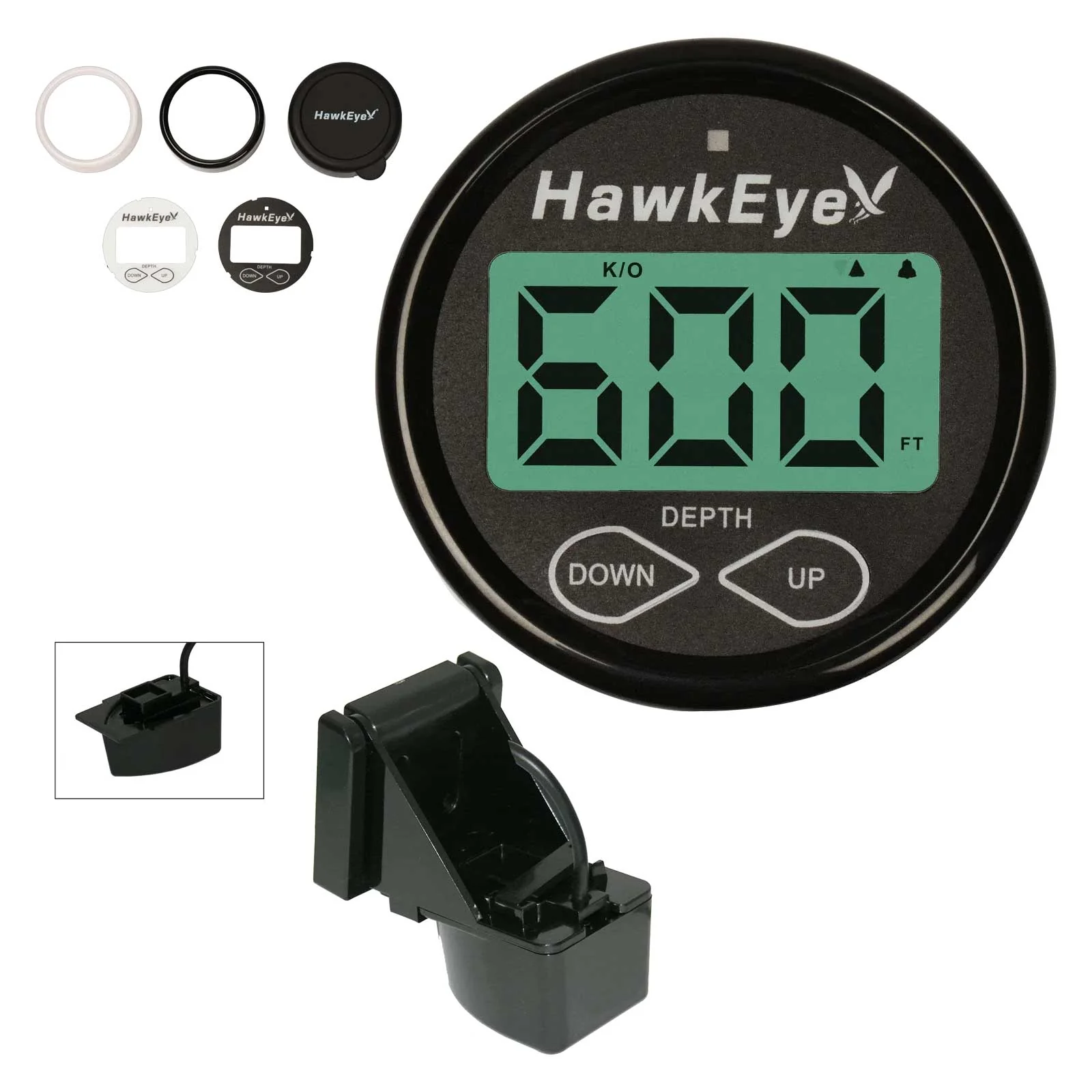

The HawkEye 1B Dashboard Depth Sounder is an advanced yet versatile depth sounder designed for use in marine vessels. It features a three-stage depth alarm system with customizable shallow and deep alarms and a ‘Keel-Offset’ feature to adjust readings based on vessel draft.

This depth sounder also offers easy-touch digital programming and an illuminated LCD display that provides accurate readings from 2.5 feet (0.5m) up to 600 feet (90m) in depths of water.

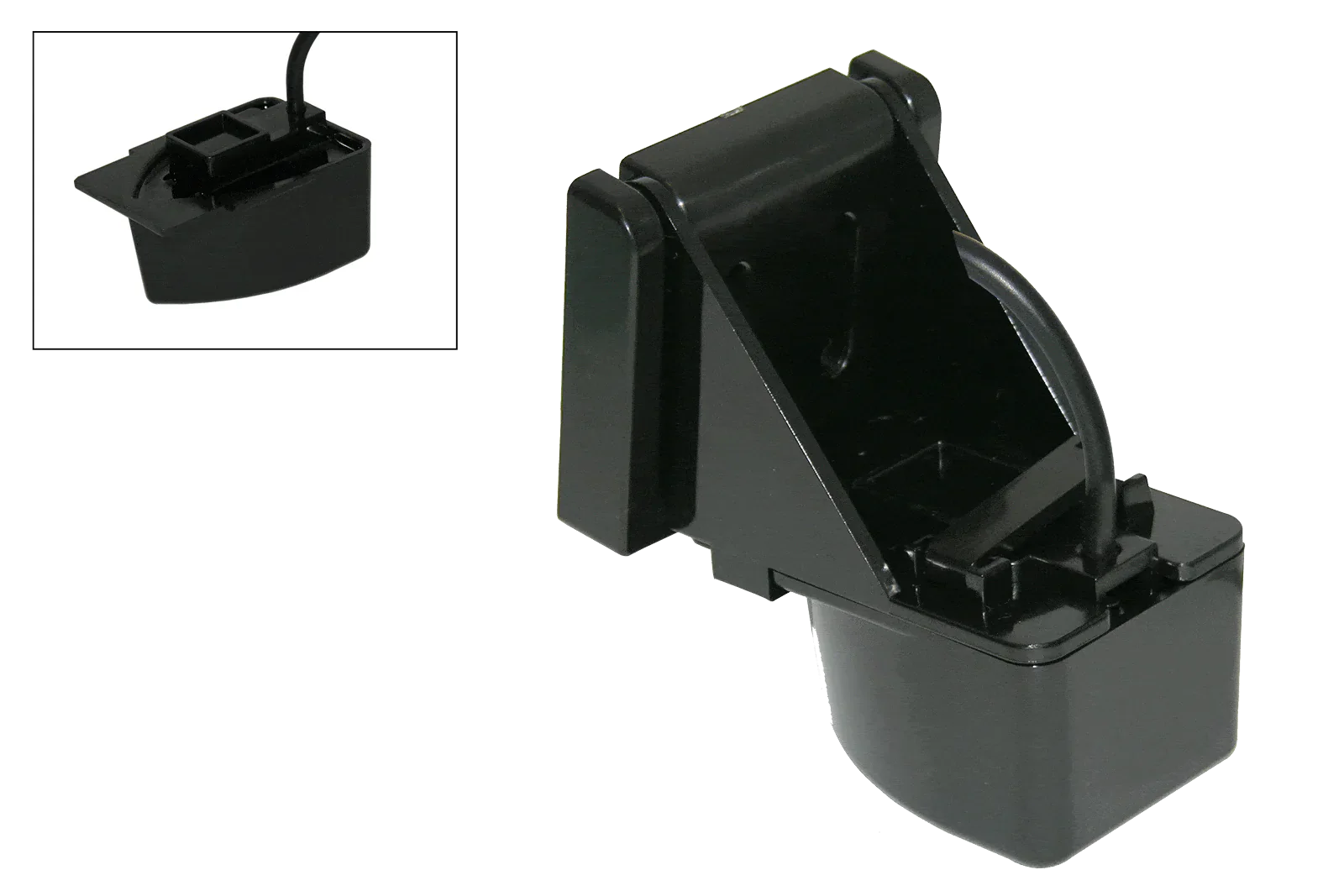

Installation can be done either with the transom mount or glued inside the hull according to the instructions provided; this sounder includes a 30-foot cable length for optimal connectivity.

The waterproof front face and white and black face plates with trim rings make this device both attractive and secure.

The HawkEye Dashboard Depth Sounder makes it easy to quickly read water depths and prevent accidents due to shallow waters or sudden drops. With its advanced technology and two-year warranty, this product is perfect for new boats and retrofitting existing vessels.

Product Features:

• Three stage depth alarm warning system with programmable shallow and deep water alarms;
• Easy touch digital programming;

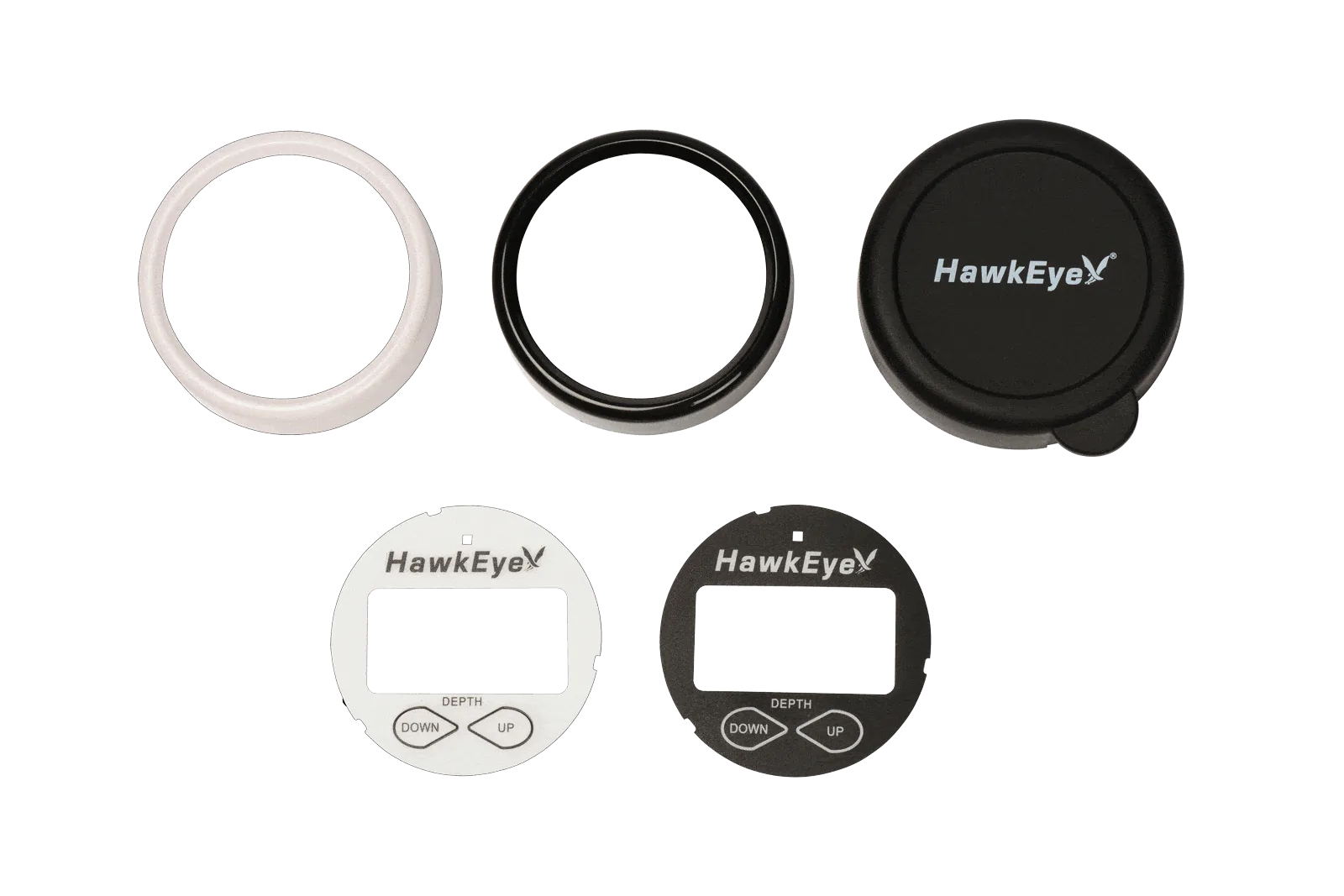

• White & black face plates and trim rings;
• “Keel-Offset” function allows readings to be adjusted for vessel draft;

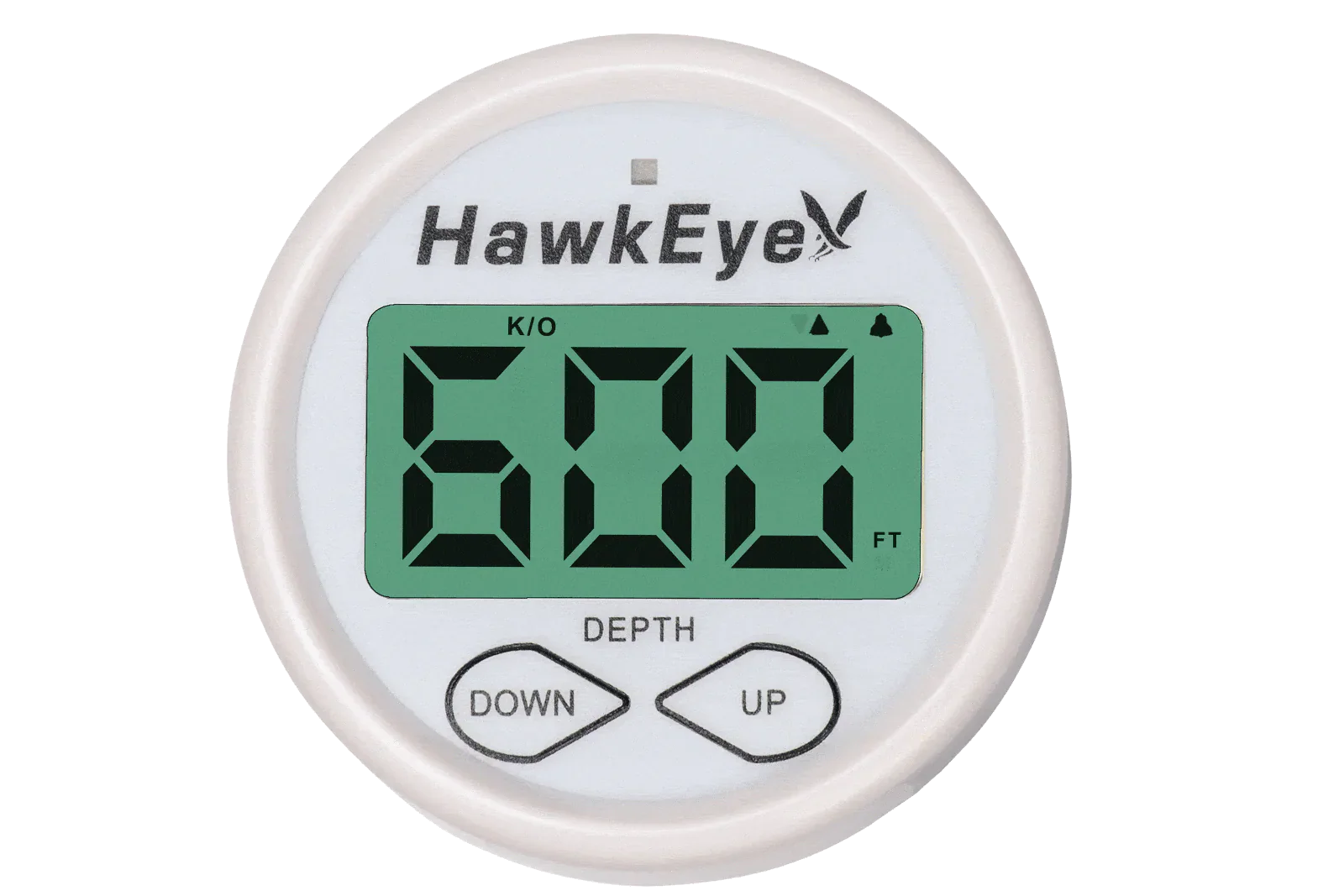

• Waterproof front face & illuminated LCD display;
• Cable length: 30 Feet (9 M);
• Display dimensions: 1.65 x 0.85 inches;
• Two year warranty

Product Specifications:

• Dimensions: 2" Diameter x 1.75" Depth (51 x 45 mm)
• Screen Size: Height: 1.65" Width: .87" (42 x 22 mm)
• Operating Temperature: 0~160°F (-18~71 °c)
• Depth Range: 2.5 ft (.7 m) ~ 600 ft (180 m)
• Transducer Cable Length: 30 ft (9 m)
• Transducer Frequency: 200 kHz
• Transducer Beam Angle: 14/Degrees
• Power Requirement: 12-14 VDC
• Current Draw: 200 mAh
