Jabsco Junior Puppy' self-priming pump 24 volt d.c.

Junior Puppy' self-priming pump 24 volt d.c.

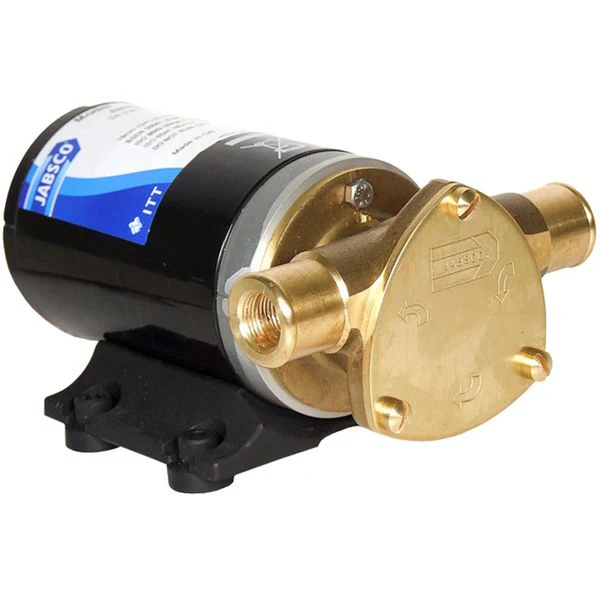

The Jabsco Junior Puppy is a reliable, self priming pump, with a bronze body. All electric impeller pumps must not be mounted vertically where the impeller housing will be above the motor.

This Jabsco puppy pump features a maximum flow rate of 15lpm at 0 head and has a port size of 3/8" BSP female (3/4" OD). The replacement impeller for this pump can be found with part number: CL9200-0023B.

• Connections for 19mm (¾”) bore hose or use 3/8” hose adapters
• Connections: - for 25mm (1”) bore hose or 3/8” BSP
• Dimensions: - 200mm long, 110mm wide, 85mm high
• Fuse Size: - 10(amp)
• Output: - 15 litres/minute (3.3 gallons/minute)
• Medium duty, continuously rated bilge and deckwash pump
• Self-priming up to 1.5m vertical lift
• Simple, fully serviceable design with few wearing parts
• Can generate pressures up to 2 bar (30psi)
• Bronze body, stainless steel shaft
• Packaged Dimensions: L:28.00 x H:14.00 x W:15.00cm
• Actual Weight: 2.51 Kg (Approx. 3.01 Kg packed)
