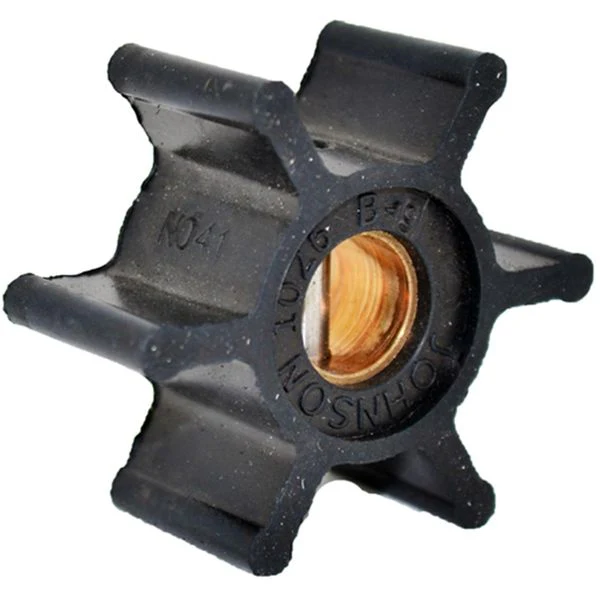

Johnson 09-1026B-9 Impeller Kit F4B-8 Nitrile

The genuine Johnson nitrile flexible impeller is suitable for applications where diesel or light oils are present. The Johnson flexible pump impeller is designed to be installed to some of the F4 range of Johnson Pumps which suits the impeller dimensions listed below, including:

- F4B-8 pumps (10-24074-1)

- Jabsco 2620-237 and 22950-2037 OEM pumps, as well as Jabsco 52020-2001

The Johnson flexible pump impeller has six blades and is supplied complete with O-ring, lubrication gel and instruction manual to aid installation of the impeller into the flexible impeller pump.

The Johnson 09-1026B-9 can be used to replace the Jabsco 0673-0003 Europe and USA flexible impeller and CEF 500216 GX.

It is highly recommended to make sure you use an original pump impeller for your flexible impeller pump as this will ensure that the quality complies with the performance and dimension requirements for each pump type. Johnson Pump impellers are manufactured in strict compliance with the pump specifications set by the engine manufacturers.

• Outer Dia 50.8mm/2"
• Inner Dia 12.0mm/0.47"
• Width       22.0mm/0.87"



Material	Nitrile Rubber
Primary Construction	Nitrile
Drive Type Description	Through Pin Drive
Replaces	Jabsco 0673-0003 & CEF 500216 GX
Brand	Johnson
