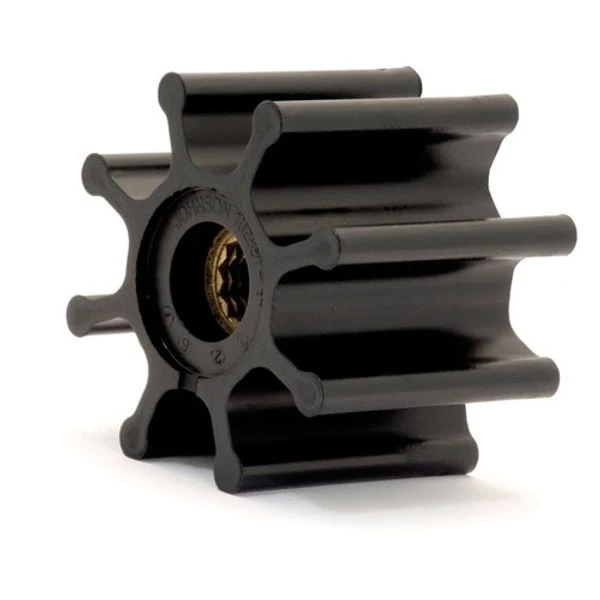

Johnson MC97 flexible impeller

The genuine Johnson MC97 flexible impeller is suitable for general water-pumping duties such as engine cooling, water transfer, wash down and bilge water pumping purposes. The Johnson flexible pump impeller has eight blades and is supplied complete with gaskets, O-ring, lubrication gel and instruction manual to aid installation of the impeller into the flexible impeller pump.

The Johnson 09-1028BT-1 can be used to replace the Johnson 09-1028B neoprene, Jabsco 17937-0001 and 920-0001 Europe and USA flexible impellers as well as the Sherwood 18200 impeller. For applications containing diesel or light oils, use Johnson nitrile impeller 09-1028B-9.

The Johnson flexible pump impeller is designed to be installed to some of the F7 range of Johnson Pumps, including the following:

Pump Suitability for the Johnson 09-1028BT-1 Impeller:

- F7B-3, F7B-3000, F7B-3020, F7B-3030, F7B-30007, F7B-30207 & F7B-30307

- F7B-5, F7B-5000, F7B-5001, F7B-5001 MC & F7B-5007, F7B-50017 & F7B-50017 MC

- F7B-8, F7B-803, F7B-8001, F7B-8007 & F7B-8037





Material	MC97
Primary Construction	MC97
Suitable For	Beta Marine|BMW|Bukh|Caterpillar|Cummins|Ford|Isuzu|John Deere|Johnson Evinrude|Kohler|Kubota|Lister|Lombardini|Mariner|Mercedes|Mercruiser|Mercury|Mermaid|Nanni|Perkins|Thornycroft|Vetus|Volvo|VM|Yanmar
Impeller Shaft Diameter	16mm
Number of Impeller Blades	8
Drive Type Description	Spline Drive
Replaces	Johnson 09-1028B, Jabsco 17937-0001 & 920-0001, Sherwood 18200 Impellers
Brand	Johnson
Application	Some F7B Johnson Pumps, Please See the Description for Full Suitability
Model	09-1028BT-1
Depth	50.2mm
Diameter Description	65mm, ID: 16mm
