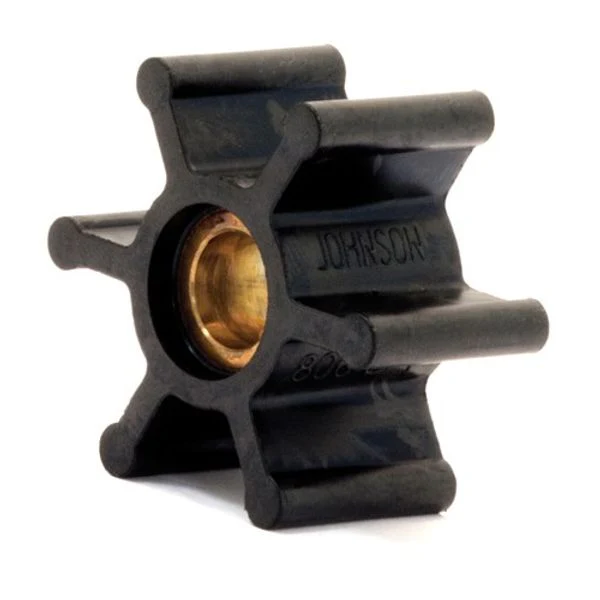

Johnson MC97 flexible impeller

The genuine Johnson MC97 flexible impeller is suitable for general water-pumping duties such as engine cooling, water transfer, wash down and bilge water pumping purposes. The Johnson flexible pump impeller is designed to be installed to some of the F35 range of Johnson Pumps which suits the impeller dimensions listed below, including:

- Johnson F4B-9 and F4B-903 pump models: 10-24463-01 & 10-31934-1

- Johnson F35B-9 and F35B-802 pump models: 10-32280-1, 10-32388-1, 10-32415-, 10-35038-21 & 10-35039-1

MC97 has been developed to meet new environmental regulations for rubber manufacturing processes and will replace the regular Johnson neoprene impeller compound. The development of MC97 has also resulted in an extended service life of the impeller compared to impellers in neoprene.

The Johnson flexible pump impeller has six blades and is supplied complete with gaskets, lubrication gel and instruction manual to aid installation of the impeller into the flexible impeller pump.

The Johnson 09-806B-1 can be used to replace the Jabsco 4528-0001 Europe and USA flexible impeller.

Material	MC97
Primary Construction	MC97
Suitable For	Bukh|Farymann|Nanni|Perkins|Volvo|Yanmar
Impeller Shaft Diameter	9.5mm
Number of Impeller Blades	6
Drive Type Description	Through Pin Drive
Replaces	Jabsco 4528-0001 impeller.
Brand	Johnson
Application	Johnson F35 Pumps
Model	09-806B-1
Depth	19mm (3/4")
Diameter Description	40mm (1.58"), ID: 9.5mm (0.37")
