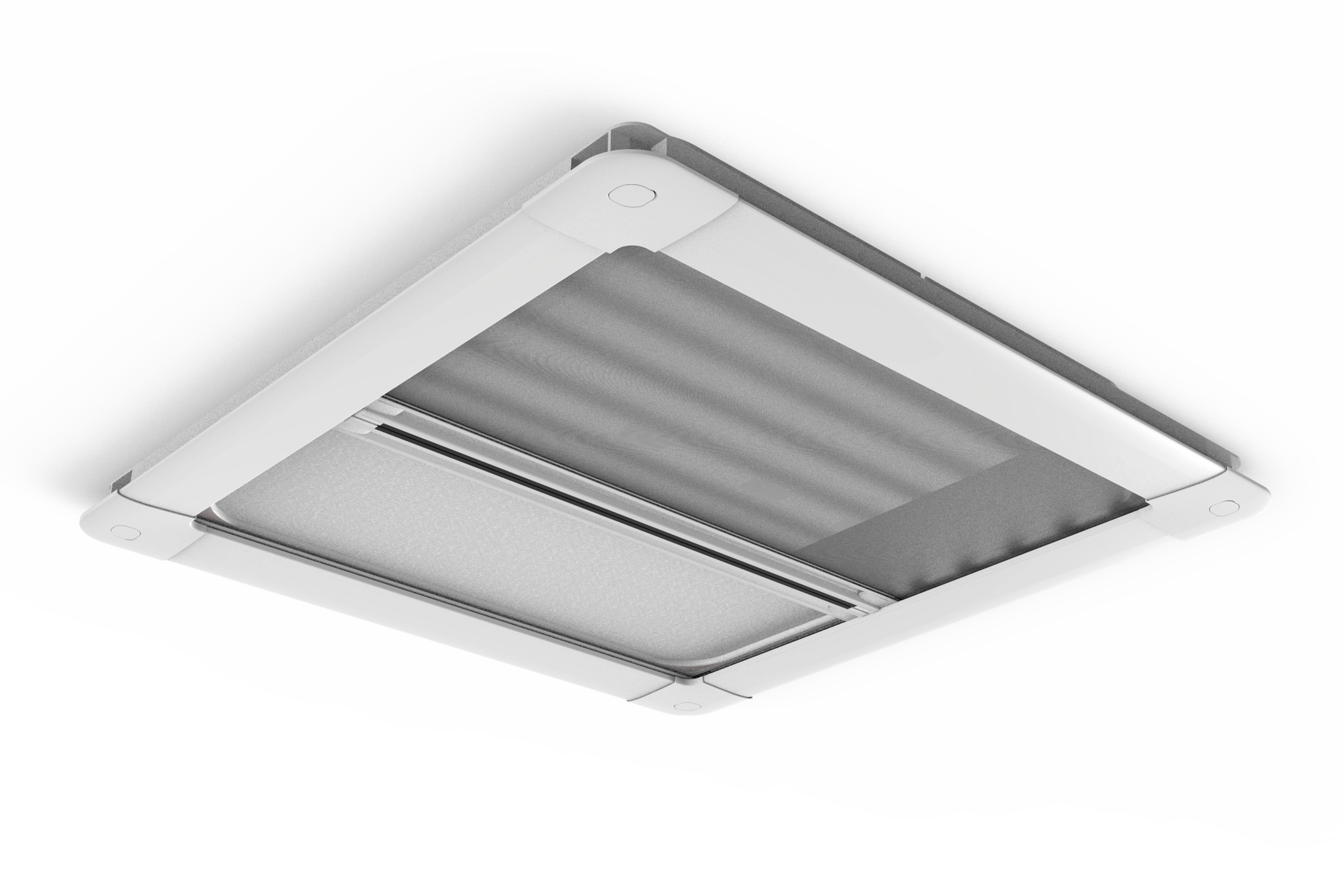

Lewmar Flush Roller Shade
Designed for the perfect fit to our existing range of hatches, the new modular Flush roller shade systems complement any boat.
All components have been specially selected for their suitability in withstanding the harsh marine environment. The chosen polymers and fabrics are easily
cleaned and offer excellent resistance to damp conditions.
Once installed, the Lewmar shade range can be easily maintained and adjusted via the clip together mouldings. Accessing the fabric rollers is simplified, using cassette-type loading and unloading, making a décor colour change simple and fast.
| Size | Overall Size (mm) | Cut-Out Size (mm) |
|---|---|---|
| 00 | 281 x 281 | 211 x 211 |
| 10 | 330 x 330 | 260 x 260 |
| 20 | 417 x 272 | 347 x 202 |
| 30 | 527 x 397 | 457 x 327 |
| 40 | 491 x 491 | 421 x 421 |
| 44 | 512 x 512 | 442 x 442 |
| 50 | 447 x 557 | 377 x 507 |
| 54 | 462 x 577 | 392 x 507 |
| 60 | 577 x 577 | 507 x 507 |
| Size | Overall Size (mm) | Cut-Out Size (mm) |
|---|---|---|
| 10 | 324 x 324 | 260 x 260 |
| 20 | 411 x 266 | 347 x 202 |
| 30 | 521 x 391 | 457 x 327 |
| 40 | 485 x 485 | 421 x 421 |
| 44 | 509 x 509 | 442 x 442 |
| 50 | 574 x 444 | 507 x 377 |
| 54 | 574 x 459 | 507 x 392 |
| 60 | 574 x 574 | 507 x 507 |
| Size | Overall Length (mm) | Overall Width (mm) |
|---|---|---|
| 30 | 527 | 397 |
| 40 | 492 | 492 |
| 44 | 513 | 513 |
| 50 | 578 | 448 |
