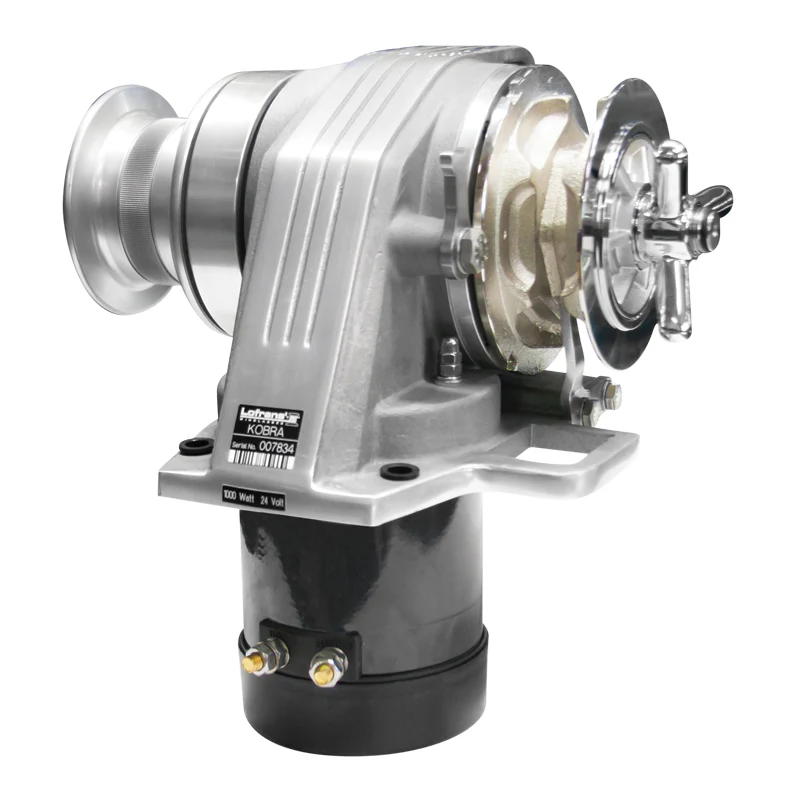

Name: Lofrans Kobra Horizontal Windlass
Brand: Fox's Chandlery
SKU: lofrans-kobra-horizontal-windlass
Availability: InStock

🚚 Free Worldwide Shipping on All Orders!Shop Now

Lofrans Kobra Horizontal Windlass

Lofrans Kobra Horizontal Windlass Features

Box includes:

Windlass assembly filled with oil
Dual direction solenoid pack
Handle or lever
CD instruction manual

Code	Amps at Working Load (A)	Circuit Breaker	Gipsy For Chain	Line Speed at W.L	Max Line Speed	Maximum Pull	Motor size	Net Weight	Power Supply	Type	Working load (kg)
220260	150	187333	8 mm, ISO 4565 DIN 766	16 m/min	32 m/min	1250 kg	1000 W	21 kg	12 V	With Drum	170
220420	80	187332	10 mm, ISO 4565	17 m/min	33 m/min	1325 kg	1000 W	21 kg	24 V	With Drum	170
428747	150	187333	10 mm, ISO 4565	16 m/min	32 m/min	1250 kg	1000 W	21 kg	12 V	With Drum	170
471734	80	187332	10 mm, DIN 766	17 m/min	33 m/min	1325 kg	1000 W	21 kg	24 V	With Drum	170
600051	150	187333	6 mm, ISO 4565 DIN 766	16 m/min	32 m/min	1250 kg	1000 W	21 kg	12 V	With Drum	170
600052	150	187333	10 mm, DIN 766	16 m/min	32 m/min	1250 kg	1000 W	21 kg	12 V	With Drum	170
600513	80	187332	6 mm, ISO 4565 DIN 766	17 m/min	33 m/min	1325 kg	1000 W	21 kg	24 V	With Drum	170
600514	80	187332	8 mm, ISO 4565 DIN 766	17 m/min	33 m/min	1325 kg	1000 W	21 kg	24 V	With Drum	170
