Mantus Anchor Swivel

The Mantus Anchor Swivel is designed to be the ‘The Strongest Link in Your Chain’ and is stronger than its corresponding Grade 40 chain. (WLL is 1/5 UBS).

An integrated swivel shackle design eliminates side loading, making this the safest anchor swivel on the market. The Mantus anchor swivel and shackle is the first to feature an oblong pin to maximise the pin strength.

In addition, the innovative shackle bolt design has a slimmer profile making it easier to pass through your bow roller, the hex head design incorporates holes for safety wire ensuring a secure fit.

Manufactured from 316 L Stainless Steel, it is precision casted, and the body electro-polish finished with the pin made from 2507 Duplex and the shackle from 2205 Duplex.

Available in the following sizes:

• US1
  • 1/4” (6mm), grade 70 HT chain
  • 5/16” (8mm), grade 30, 40 HT chain
• US2
  • 5/16” (8mm), grade 70 HT chain
  • 3/8” (10mm), grade 30, 40 HT chain
• US3
  • 3/8” (10mm), grade 70 HT chain
  • 7/16” (11mm), grade 30, 40 HT chain
  • 1/2” (12mm), grade 30, 40 HT chain

•

  • Body manufactured from 316 L Stainless Steel
  • Pin manufactured from 2507 Duplex
  • Shackle manufactured from 2205 Duplex
  • Oblong pin for maximum strength

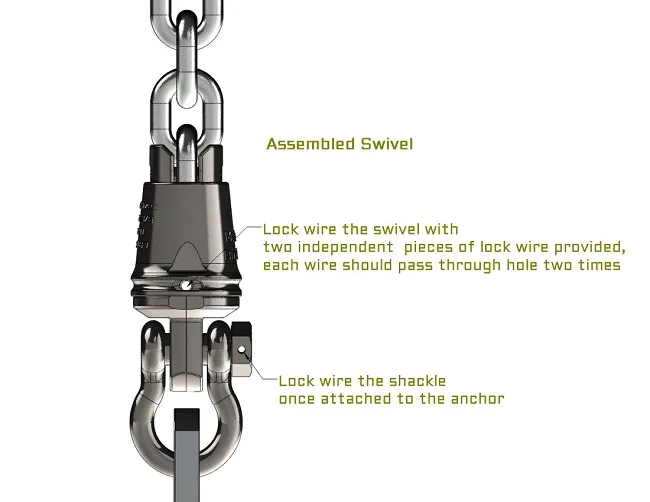

  • Hex head with security wiring point
  • Slim in profile



    See sizing chart below for selection:



    Swivel Specification:



    Chain Guide:
