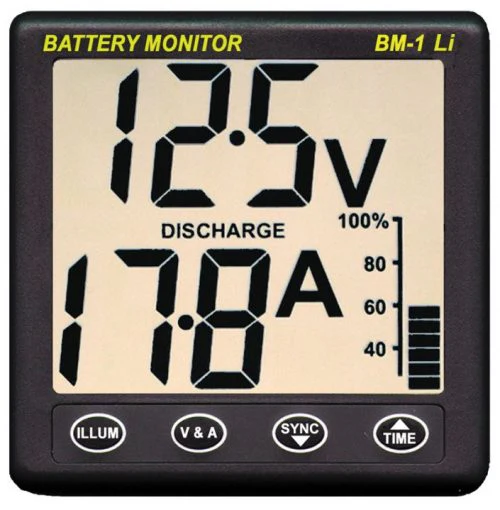

Nasa Clipper BM-1 Lithium (LiFePO4) Battery Monitor

The Nasa Clipper BM-1 Lithium Battery Monitor is the perfect device for 12-Volt lithium iron phosphate battery installation. With a continuous current capacity of 100 Amps, it displays vital information such as battery voltage, charge/discharge current, state of charge, and time to achieve full charge/discharge. This leads to enhanced battery life and reduced risk of failure.

BM-1  12V 8 – 16 Volts DC

Supply current 1.5 milliamps

Battery capacities 20 – 600 AMP Hour

Load current 100 AMPS Maximum

Charge current 100 AMPS Maximum

Shunt Standard 50 millivolt @ 100 AMP

Cables supplied:

• 100 AMP shunt link to M8 Ring terminal.
  5 Metre from display unit to battery – fused and fitted with ring terminals for shunt, fuse holder and M8 ring terminal to battery.
• Display unit
• Standard 110mm square Clipper case. High contrast LCD, backlit for night viewing.
  Minimum voltage visual alarm
  Simple operation – 4 keys to select backlight, Volt/Amp/State of Charge screen,
  AMP hours or Time to run.
