Nasa Clipper BM1 Battery Monitor 24V
NasaĀ Clipper BM-1 24V Battery monitor.
Ā
The Nasa Clipper BM-1 24V Battery Monitor Ā is designed to monitor performance ofĀ 24 volt lead acid battery systems, including AGM and GEL types with capacities of up to 600 Amp hours. It is supplied complete with a precision 100 AMP shunt and a prefabricated cable assembly to enable simple DIY installation. The unit continuously monitors voltage, current (charge or discharge), number of amp/hours (charge or discharge), the batteries state of charge and the time to charge or discharge. It also monitors the voltage of the engine strat battery. This information leads to more efficient use of the battery, which can enhance battery life and reduce the risk of failure.
- Clipper style display
- Monitors 24v lead acid battery systems with capacity of up to 600 Amp hours

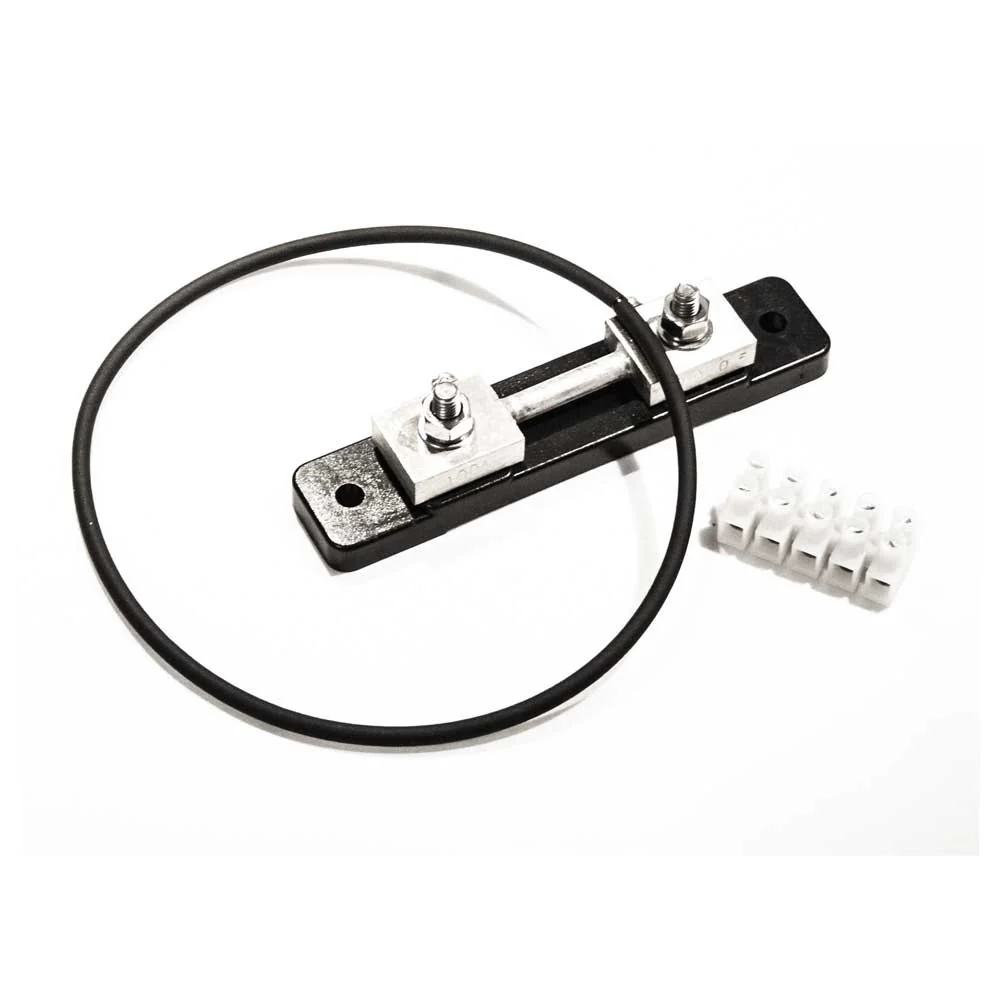

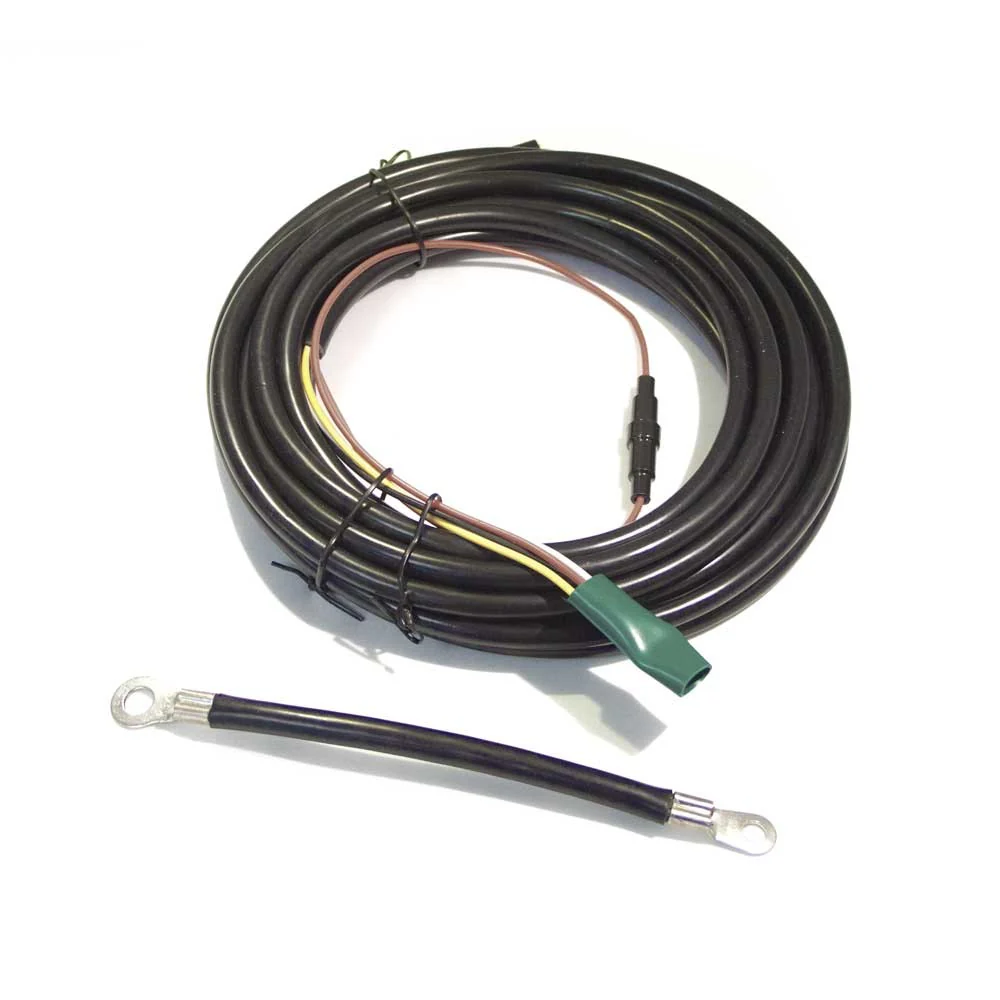

- Supplied with a 50 millivolt @100 amp shunt and prefabricated cable assembly with M8 ring terminals
- Monitors Voltage, Current (charge or discharge), Number ofĀ Amp/hours (charge or discharge), The battery's state of charge and the time to charge or discharge
- Will also measure the charge voltage of the engine start battery
- Supply voltageĀ 9V-32V DC
- Supply currentĀ 1.5 milliamps
- Load current 100amps maximum
- Charge current 100amps maximum
$46.34
Original: $132.41
-65%Nasa Clipper BM1 Battery Monitor 24Vā
$132.41
$46.34Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
NasaĀ Clipper BM-1 24V Battery monitor.
Ā
The Nasa Clipper BM-1 24V Battery Monitor Ā is designed to monitor performance ofĀ 24 volt lead acid battery systems, including AGM and GEL types with capacities of up to 600 Amp hours. It is supplied complete with a precision 100 AMP shunt and a prefabricated cable assembly to enable simple DIY installation. The unit continuously monitors voltage, current (charge or discharge), number of amp/hours (charge or discharge), the batteries state of charge and the time to charge or discharge. It also monitors the voltage of the engine strat battery. This information leads to more efficient use of the battery, which can enhance battery life and reduce the risk of failure.
- Clipper style display
- Monitors 24v lead acid battery systems with capacity of up to 600 Amp hours
- Supplied with a 50 millivolt @100 amp shunt and prefabricated cable assembly with M8 ring terminals
- Monitors Voltage, Current (charge or discharge), Number ofĀ Amp/hours (charge or discharge), The battery's state of charge and the time to charge or discharge
- Will also measure the charge voltage of the engine start battery
- Supply voltageĀ 9V-32V DC
- Supply currentĀ 1.5 milliamps
- Load current 100amps maximum
- Charge current 100amps maximum
