OceanLED X Series Underwater Lighting

The new OceanLED X Series underwater lights have been especially designed for the leisure and fishing market giving you a stunning light performance whether your fishing or just having fun. Merging their XT and XP the X Series offers a simplified collection which can be surface mounted underwater or above the water line (single colour models) and comes in a range of colour and size choices to suit all needs (Choose virtually any colour to display in Colour Models which now combine the standard colour change and DMX control in one light. The approximate light penetration in average water runs from 6m for the X4 and 12 in the X16, almost three times as much in perfect water conditions e.g. Bahamas, Caribbean or Greece. Installation is simple with just  four screws to fix in place and a small 12.5mm hole  to run the cable through the hull. White bezel as standard but optional Stainless Steel  bezel available. To control lighting via your iOS or Android device see the OceanDMX APP Controller Kit

• Perfect for fishing (blue/green lights best choice for fishing)
• Compact, simple design
• Easy to clean with wipe cleanTritonium coating
• Simple to install
• Chemically resistant optical polymer
• Built in driver adjust LED power if above or below water
• Ultra low power draw
• No start up current required
• Reverse polarity protection
• 60 degree circular beam angle allows for a variety of mounting options
• Recommended for boats 9-20m
• 12/24 DC
• 750-4500 lumens (depending on model)

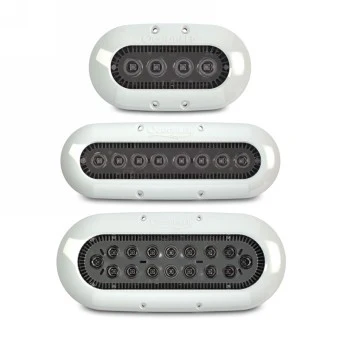

• Sizes: X4, X8, X16
• Colours: Ultra White, Midnight Blue, Colours (X8 and X16 only)

	X4	X8	X16
Recomm.  boat size	Up to 30’ (9M)	Up to 50’ (15M)	Up to 65’ (20M)
Recomm. transom spacing	2-3’ (0.5-1M)	2-4’ (0.5-1.2M)	2-4’(0.5-102M)
Recomm. install depth (to top of fixture)	4-8” (10-20cm)	4-8” (10-20cm	4-8” (10-20cm
Current @ 12 / 24V DC	12v DC 0.8A 24V DC 0.4A	12v DC 0.8A 24V DC 0.4A	12v DC 0.8A 24V DC 0.4A
Max lumens	1450	2900	5800
Fixture lumens	1150	2300	4500
Light Penetration av water	20’ (6M)	26’ (8M)	40’ (12M)
Light Penetratration perfect water	Up to 53’ (16M)	Up to 72’ (22M)	Up to 99’ (30M)
Colour	Blue, White	Blue, White, Colours	Blue, White, Colours
Optional S/S bezel available	Yes	Yes	Yes
