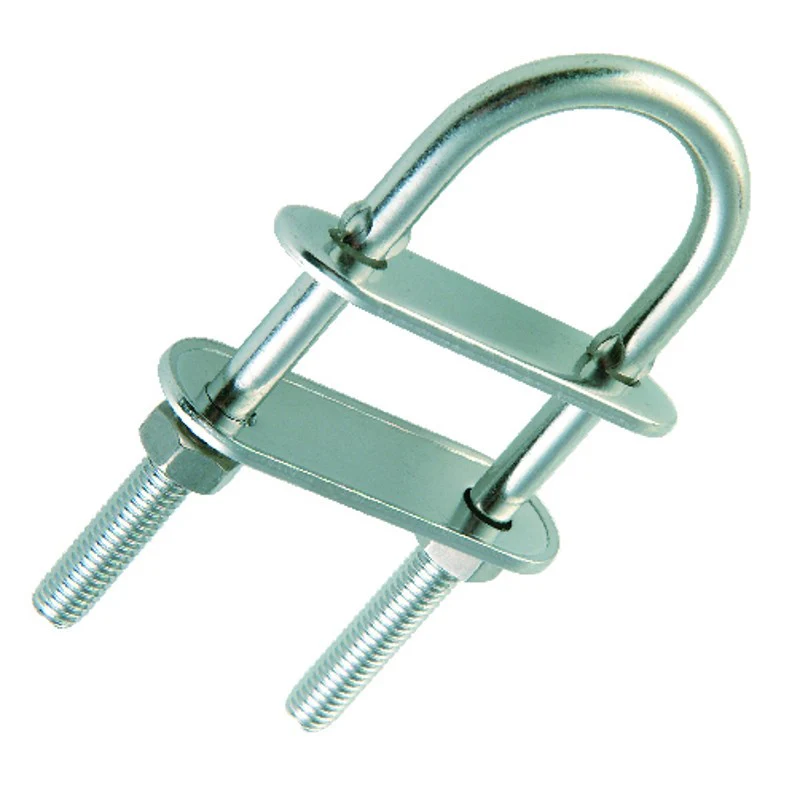

Proboat Stainless Steel U Bolt

Proboat Stainless Steel U Bolt

Also known as Tube Bolts or Clamp Bolts these U Bolts can be used in marine applications where an eye bolt would be too small to use or when extra strength is required. Made of marine grade stainless steel (AISI316) these bolts are supplied with nuts, washers and mounting plates in a wide range of sizes.

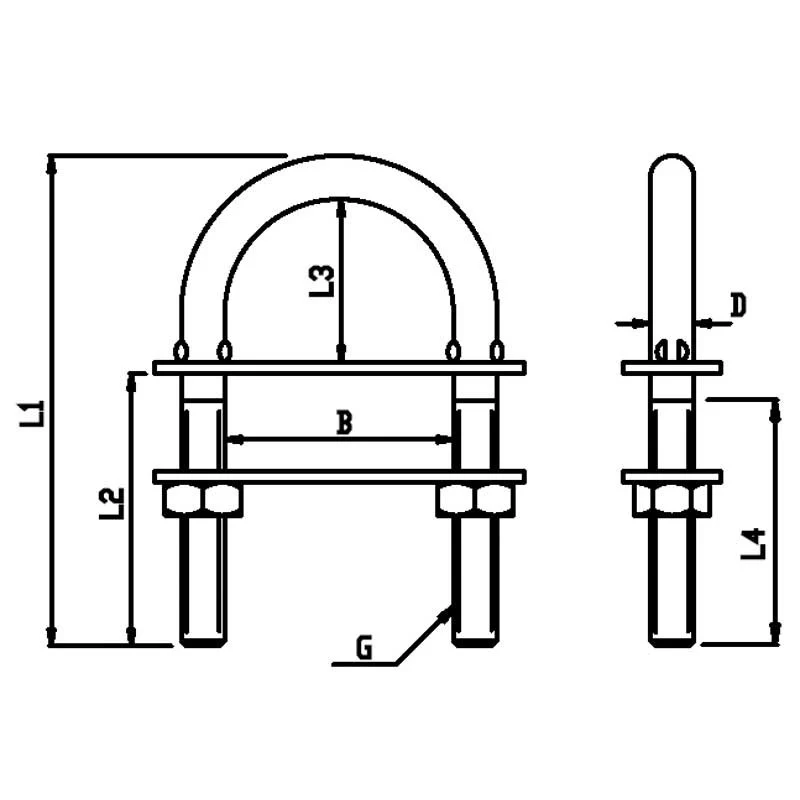

Part No. G(mm) L1(mm) L2(mm) L3(mm) L4(mm) B(mm) D(mm) Break Load(Kg.)
ED-340435 M4 66 35 25 30 26 4.0 750
ED-340535 M5 67 35 25 30 25 4.4 900
ED-340635 M6 67 35 26 30 27 5.3 1250
ED-340650 M6 84 50 26 30 27 5.3 1250
ED-340835 M8 71 35 26 30 25 7.1 1750
ED-340850 M8 86 50 26 30 25 7.1 1750
ED-341045 M10 95 45 40 40 30 10.0 3500
ED-341280 M12 122 80 30 85 35 10.8 5100
Select Hooks-Shackle Size
From $4.59

Original: $13.12

-65%
Proboat Stainless Steel U Bolt—

$13.12

$4.59

Product Information

Shipping & Returns

Description

Also known as Tube Bolts or Clamp Bolts these U Bolts can be used in marine applications where an eye bolt would be too small to use or when extra strength is required. Made of marine grade stainless steel (AISI316) these bolts are supplied with nuts, washers and mounting plates in a wide range of sizes.

Part No. G(mm) L1(mm) L2(mm) L3(mm) L4(mm) B(mm) D(mm) Break Load(Kg.)
ED-340435 M4 66 35 25 30 26 4.0 750
ED-340535 M5 67 35 25 30 25 4.4 900
ED-340635 M6 67 35 26 30 27 5.3 1250
ED-340650 M6 84 50 26 30 27 5.3 1250
ED-340835 M8 71 35 26 30 25 7.1 1750
ED-340850 M8 86 50 26 30 25 7.1 1750
ED-341045 M10 95 45 40 40 30 10.0 3500
ED-341280 M12 122 80 30 85 35 10.8 5100
