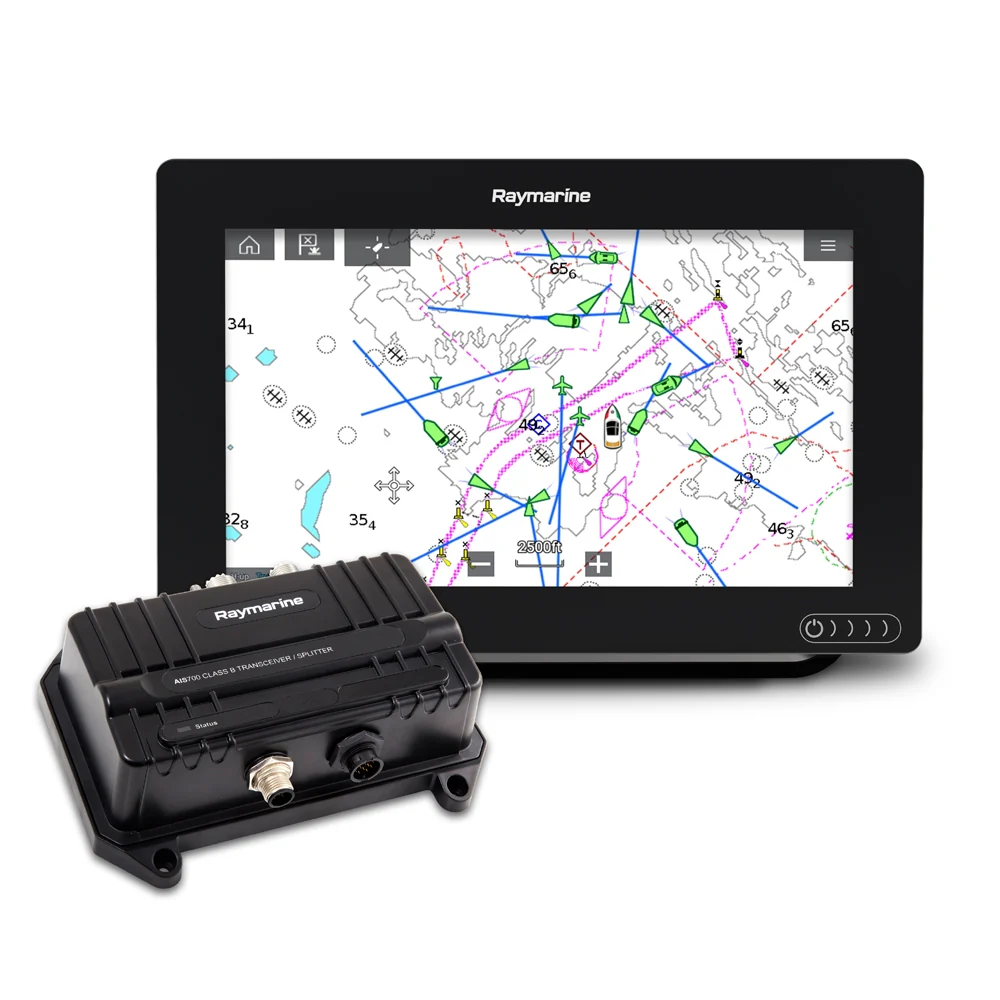

Raymarine AIS700 AIS Transponder with Integrated GPS and Antenna Splitter

Raymarine AIS700 AIS Transponder with Integrated GPS and Antenna Splitter

The integrated splitter allows you to share the boats VHF aerial saving you from fitting an extra aerial or a separate splitter. The AIS700 has a dedicated 72 channel RAIM (RAIM detects and corrects faults in satellite sinals) receiver for superb accuracy and will connect to your multifunction displays using NMEA 2000 and Sea Talking. In case your equipment is older it also has a NMEA0183 multiplexer making connections to older VHF's and displays easier. A silent mode can be deployed which might be useful if sailing through riskier waters, you can see other AIS craft but cannot be seen yourself.

Product Features:

• Transmits and Receives AIS
• Integrated GPS
• SO-TDMA networking gives a longer range and faster performance
• NMEA2000, NMEA0183, PC and SeaTalking compatible
• Silent Mode available
• IPX and IPX7 Waterproofing
• 12V and 24V
• Less than 3W power consumption
• 3A peak current

In The Box

• AIS700 Class B Transceiver with VHF Antenna Splitter
• GNSS (GPS) Antenna with fixings
• VHF Radio cable 1M
• Devicenet to SeaTalking adaptor cable 1M
• GNSS Antenna Gasket
• 4 of size 8 x 19mm self tapping screws
• M5 nut and washer (grounding)
• Documentation Kit
• Software CD
