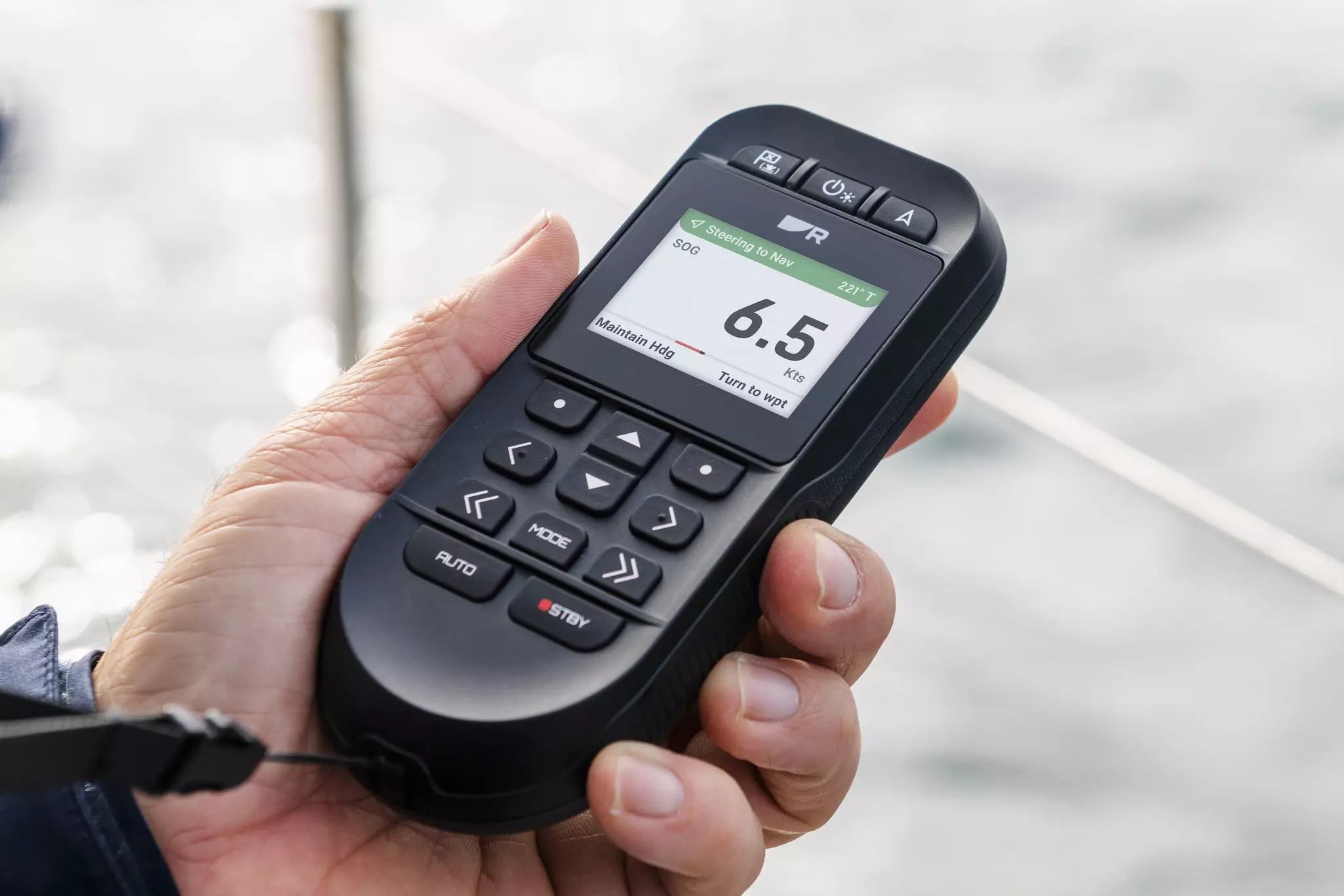

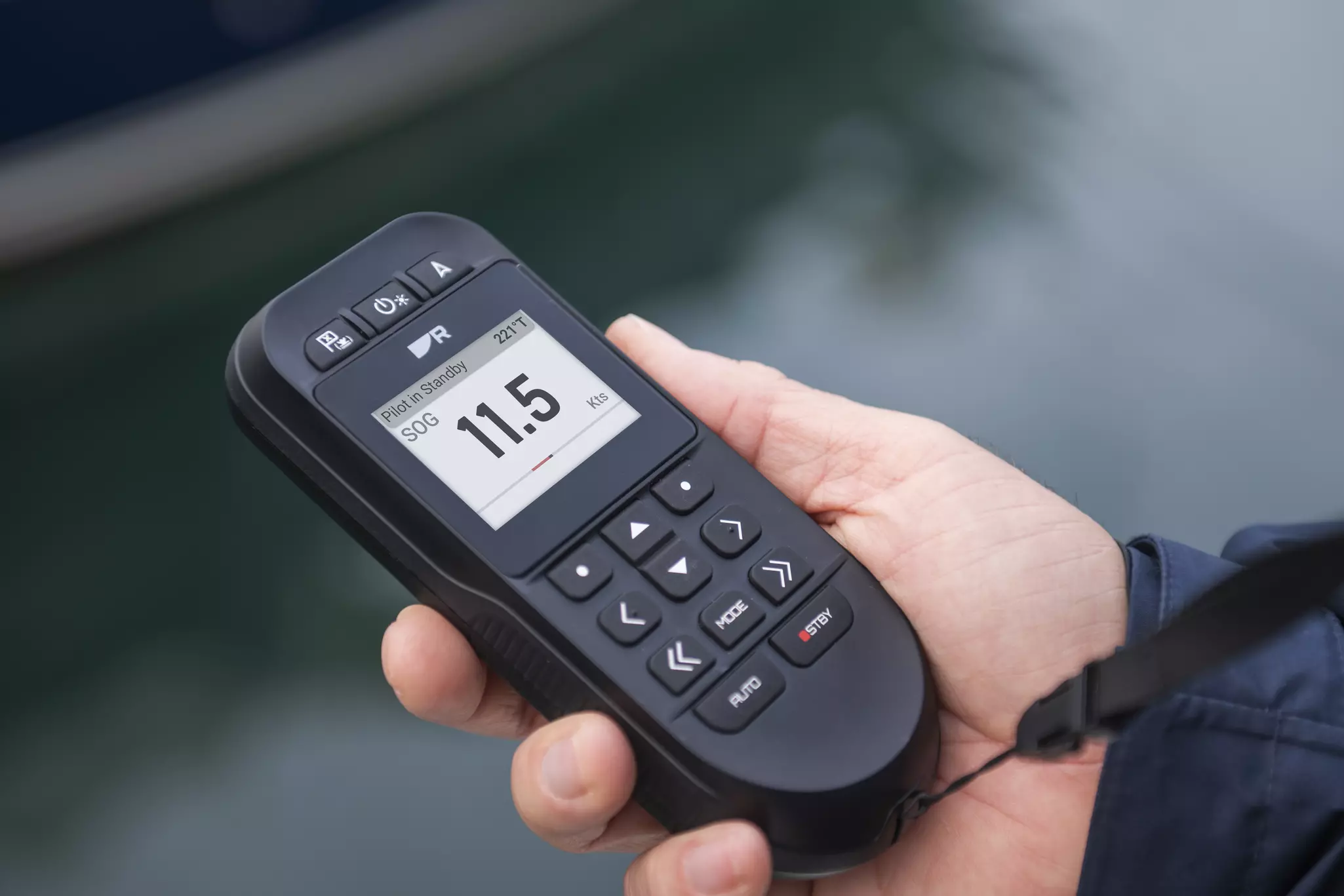

Raymarine RCU-1 Autopilot Remote Control Kit with WG-1

The Raymarine RCU-1 Autopilot Remote Control Kit with WG-1 gives you wireless command of your vessel's autopilot system from anywhere on deck. This compact remote control unit pairs seamlessly with the WG-1 wireless gateway, eliminating the need for hardwired connections and offering greater flexibility during navigation. Ideal for cruising sailors and professional mariners, the RCU-1 delivers responsive control with an intuitive interface. The wireless connection maintains reliable

Wireless Autopilot Control

Enjoy the freedom of engaging and disengaging your boat's Evolution autopilot from anywhere onboard.

Intuitive Control

Set a new course with Point-and-Go mode. Simply aim the RCU-1 in direction you want the autopilot to follow.

Enhanced Safety

Solo Sailor Mode automatically points the boat into the wind when a wearer-overboard situation is detected.

Long Battery Life

Powered by two AA batteries for up to 30 days of continuous use.

Live Navigation Data

View heading, speed, depth, wind, and waypoint info on a bright handheld display.

Built for the Marine Environment

Rugged, waterproof design and a bright sunlight viewable display.

Size	AA
Types	Alkaline Lithium Rechargeable



Environmental
Operating temperature range	-25°C (-13°F) to + 55°C (131°F)
Storage temperature range	-30°C (-22°F) to + 70°C (158°F)
Humidity	up to 95% @ 40 C (104°F)
Water ingress protection	IP67
Installation location	Above decks Below decks



AHRS	3–Axis Accelerometer 3–Axis Magnetometer 3–Axis Gyroscope
Magnetic compass accuracy	Static = ±1° RMS Dynamic = ±5° RMS
Pitch, Roll and Yaw accuracy	±1°
Heading, Pitch, Roll and Rate of Turn update rate	10 Hz



Bluetooth Version	5.1
Connection range	Up to 30m (98.43ft) with clear line of sight



UK

SI 2016:1091: Electromagnetic Compatibility (EMC) Regulations 2016 SI 2017:1206: The Radio Equipment Regulations 2017 SI 2023:1542: Battery Regulations SI 2014:1638: The Restriction of the Use of Certain Hazardous Substances (RoHS) in Electrical and Electronic Equipment Regulations 2012 SI 2013:3113 The Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 Product Security And Telecommunications Infrastructure (PSTI) Act 2022

EU & EFTA

Directive 2014/30/EC: Electromagnetic Compatibility (EMC) directive Directive 2014/53/EU: Radio Equipment Directive (RED) Directive 2023/66/EC: Batteries Directive Directive 2002/95/EC: Restriction of the use of certain hazardous substances (RoHS) in electrical and electronic equipment directive Directive 2002/96/EC: Waste Electrical and Electronic Equipment (WEEE) directive
