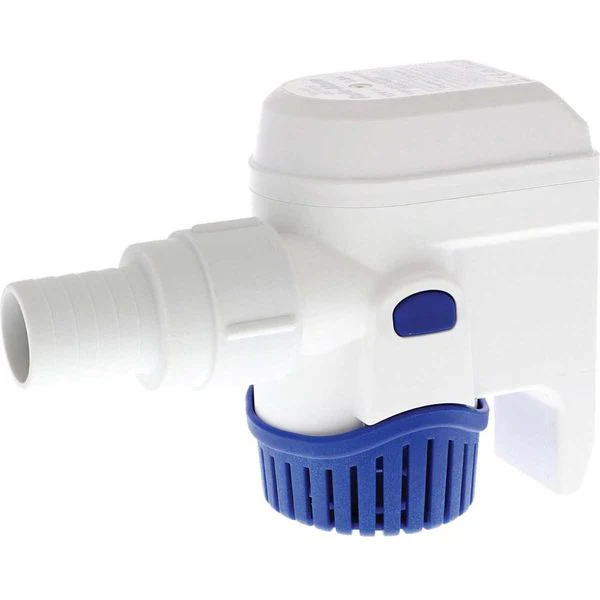

Rule Mate RM1100B Submersible Bilge Pump (69 LPM / 12V)
RuleThe Rule Mate RM1100B Submersible Bilge Pump delivers reliable dewatering performance with a flow rate of 69 litres per minute, powered by a 12V system. Designed for marine environments, its robust construction ensures efficient removal of bilge water, safeguarding your vessel from flooding. Compact and durable, it offers expert-level reliability essential for maintaining vessel safety and operational integrity. Ideal for a range of small to medium-sized boats, this pump combines effective water management with dependable electrical performance.
The Rule Mate RM1100B automatic submersible bilge pump eliminates the need for a separate float switch to activate the pump. Once power is supplied to the bilge pump, the pump will activate once the water reaches 2" (5cm), once the water reaches 3/8" (0.9cm) the pump will turn off until the water hits 2" again.
The Rule Mate bilge pump is 2/3 of the size of the old models creating a smaller footprint, this new model also has a built in thermal cut-off to add extra protection for the pump and vessel.
The Rule Mate 1100B submersible bilge pump is recommended for discharge heads up to a maximum of 3 metres. The submersible bilge pump meets ISO8846 marine (ignition) and ISO8849 marine (bilge pump) standards.
Rule Mate pumps feature a backup device that knows if the electronic bilge switch becomes covered by oil, grease and debris, by checking for water resistance against the impeller. If no water is present the pump will revert to an auto-timed mode, where the pump cycles every 2.5 minutes to check for water, until the sensor has been cleaned. Once the switch is cleaned the pump will revert back to the level sensing mode.
Includes Check Valve and a 60cm wire.
Suitable for 12 Volt systems.
| Approvals | ISO 8849 Marine |
| Consumption | 3.7 a |
| Flow Rate Description | 1100 GPH (4164 LPH), 800 GPH at 1m head, 500 GPH at 2m head |
| Fuse | 7.5A |
| Height Description | 112mm (4.4") |
| Length | 130mm |
| Outlet | 25mm (1") ID Hose |
| Voltage Description | 12V DC |
| Weight | 0.48kg |
| Width | 73mm |
| Brand | Rule |
| Automatic Bilge Pumps | Yes |
| Maximum Pump Head | 2.3 to 4.27 Metres |
| Hose Size | 25mm / 1", 29mm / 1-1/8" |
| Ignition Protected | ISO 8846 Marine |
| Maximum Recommended Head | 2 Metres (6.5 Feet) |
| Model | RM1100B |
| Inlet Outlet | 25mm (1") NPSM Thread and Hose Bard, 28mm (1-1/8") Hose Barb |
| Amps Description | 3.8A at 12V, 4.8A at 13.6V |
