Tru Design Load Bearing Collar

TruDesign Composite Load Bearing Collars

TruDesign Load Bearing Collars are the ideal choice for all your marine underwater applications and they are designed for use with trudesign skin fittings and ball valves. Unlike other metals which were more preferred back in the days such as bronze they are moulded from a glass-reinforced Nylon composite and will outperform any other marine metals used underwater.

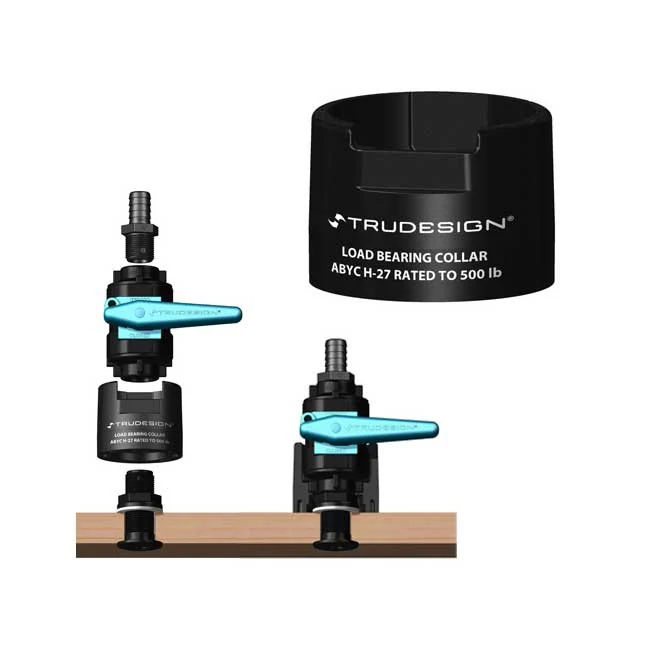

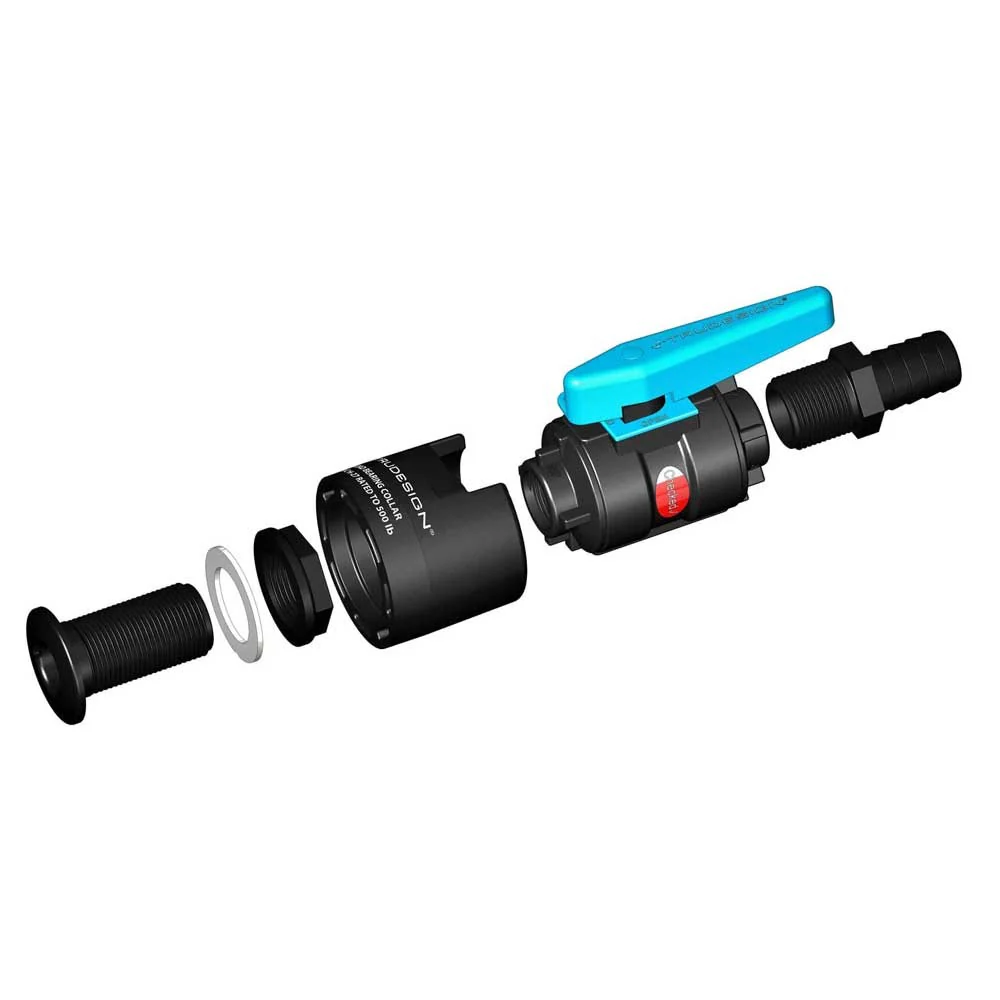

By using the TruDesign Load Bearing Collars your entire assembly will comply with ABYC H-27 and will also provide greater strength and durability. Having a load bearing collar fitted with your skin fitting, ball valve or hose tail assembly it will withstand a 227kg static force applied to the hose tail end and assembly for a minimum of 30 seconds which is a requirement for compliance with ABYC H-27 regulation.

Why Using Composite Load Bearing Collars?

• Durable and lightweight they offer maximum protection to vulnerable areas such as the exposed section of thread  and a compact footprint
• They can be retrofitted to existing TruDesign assemblies
• Manufactured from a glass-reinforced nylon composite - immune to corrosion and electrolysis

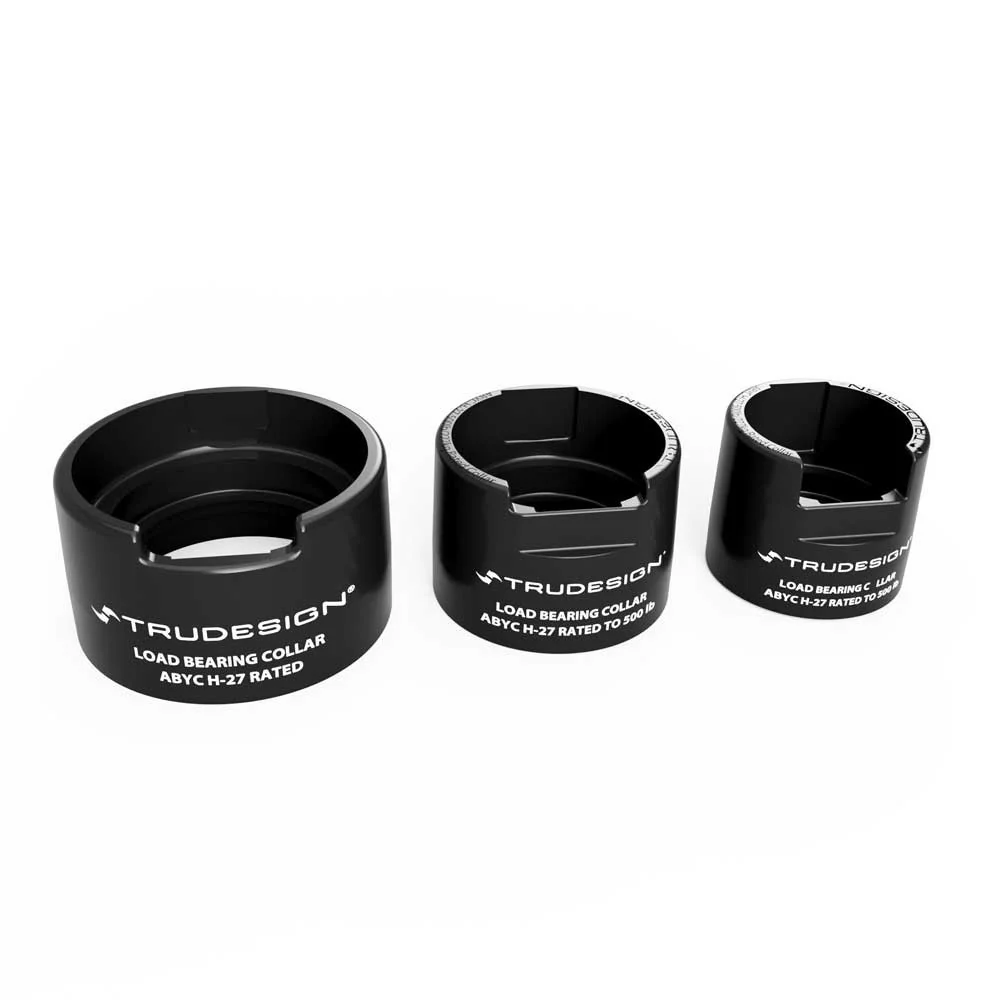

Available in a range of sizes:

• (TruDesign Part No 90856) Small - Fits ½”, ¾” and 1” ball valves
• (TruDesign Part No 90857) Medium - Fits 1 ¼” and 1 ½” ball valves
• (TruDesign Part No 90920) Large - Fits 2” ball valves
