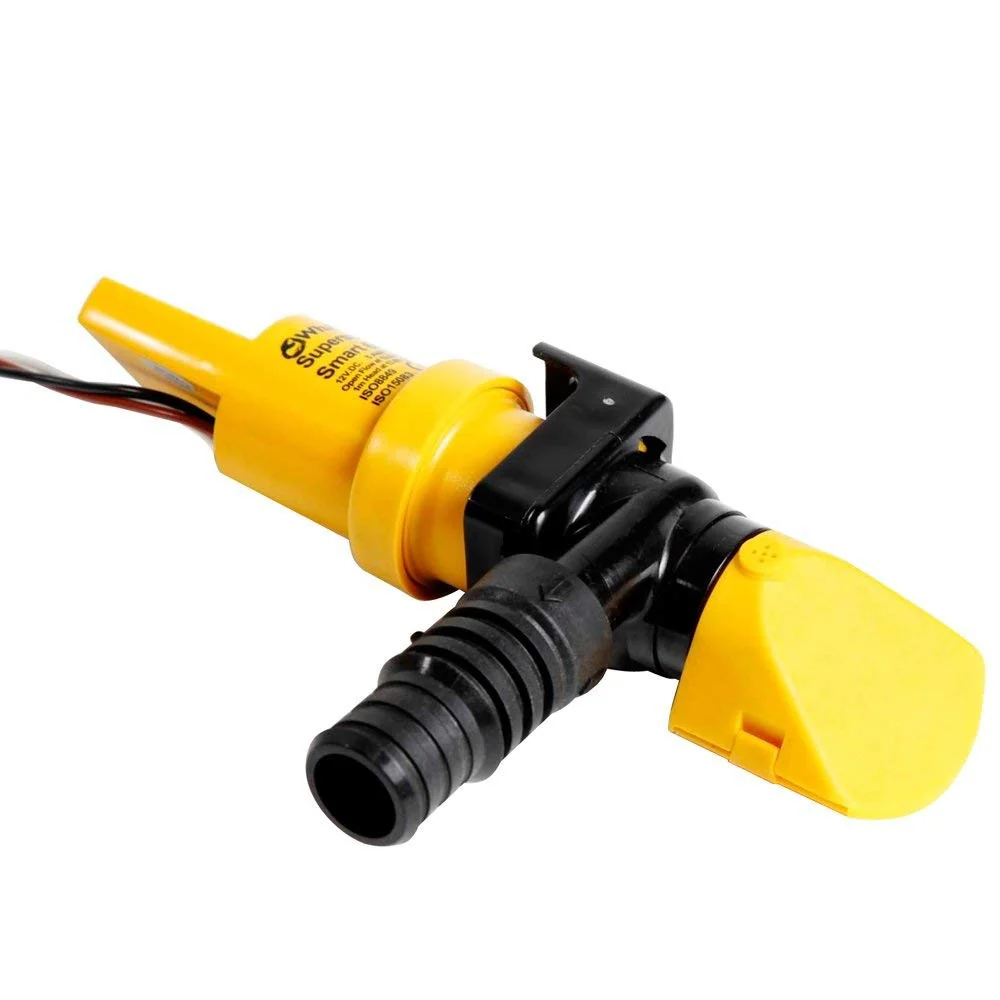

Whale Supersub 1100GPH 24V Smart Low Profile Automatic Bilge Pump

Whale Supersub 24V 1100GPH Smart Low Profile Automatic Bilge Pump

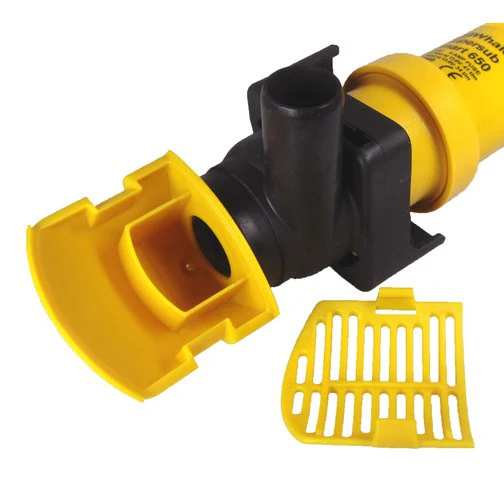

The original award winning low profile narrow automatic electric bilge pump fits right at the bottom of your bilge where traditional bilge pumps can't fit. With a high performance flow which can reach up to 1100 gals per hour, the new and improved 1100GPH 24V Whale Supersub bilge pump can be pre-installed with mounting wedges for best installation and best performance. Easy to clean do to its snap fit assembly, unique clever strainer design. The integrated non return valve ensures that the water cannot flow back down into the boat, while the sensor automatically senses bilge water level and switches on and off when needed. The strainer and the discharge head rotates to offer a much more easier installation while the bracket allows you to fit the pump either vertically or horizontally, maintaining the optimum angle of 8 degrees for maximum performance.

For sail boats the Supersub Smart 11000GPH 24V pump can easily fit into narrow keels or shallow keels while is also the ideal choice  for any other boat type such as day cruisers, runabout boats, cruiser boats and centre console fishing boats.

Whale 1100 GPH 24V Supersub Smart Features

• 3 Year Warranty
• Electric filed sensor technology
• No separate switch needed
• Quick and easy installation
• Environmentally friendly - Mercury free
• Includes manual override facility
• Efficient strainer - Drains down to 9mm (1/3")
• Integrated non-return valve
• Retrofitable
• Solid state switching - No moving parts
• Incorporates time delays for optimal bilge drainage
• Unaffected by wave motion
• Conforms to ISO 8849 and ISO 15083
• Ingnition protected per ABYC and USCG standards
• CE Certified Directive 2004/108/EC - EMC compliant
• NMMA type approved.

Whale Supersub Smart  SS1224 24V 650GPH Technical Information

• Model description - Supersub Smart SS1224 with non return valve
• Open flow rate at 13.6 V d.c - 1100GPH (66 litres/minute)
• Flow rate at 1m head - 750GPH (47 litres/minute)
• Nominal voltage - 24V
• Maximum current draw - 2.2 Amps
• Recommended automotive fuse - 2.5 Amp
• Caulked wire length - 1m
• Weight - 0.45kg (0.99lbs)
• Hose connection - 25mm (1") / 28mm (1 1/8")
• Body material - Pump Body  (Polypropylene, High Temperature ABS, Fully Potted Circuitry), Locking Ring (Acetal), Impeller (Glass filled PBT), Seals (Nitrile), Fasteners (Stainless Steel)
• Maximum Discharge Head - 3m (10ft)
• Maximum Overall Width - 54mm (2 1/8")
• Maximum Overall Height (Excl. Non Return Valve) - 75mm (3")
• Maximum Overal Height (Incl. Non Return Valve) - 133mm (5 3/16")
• Overal Length - 240mm (9 1/2").
