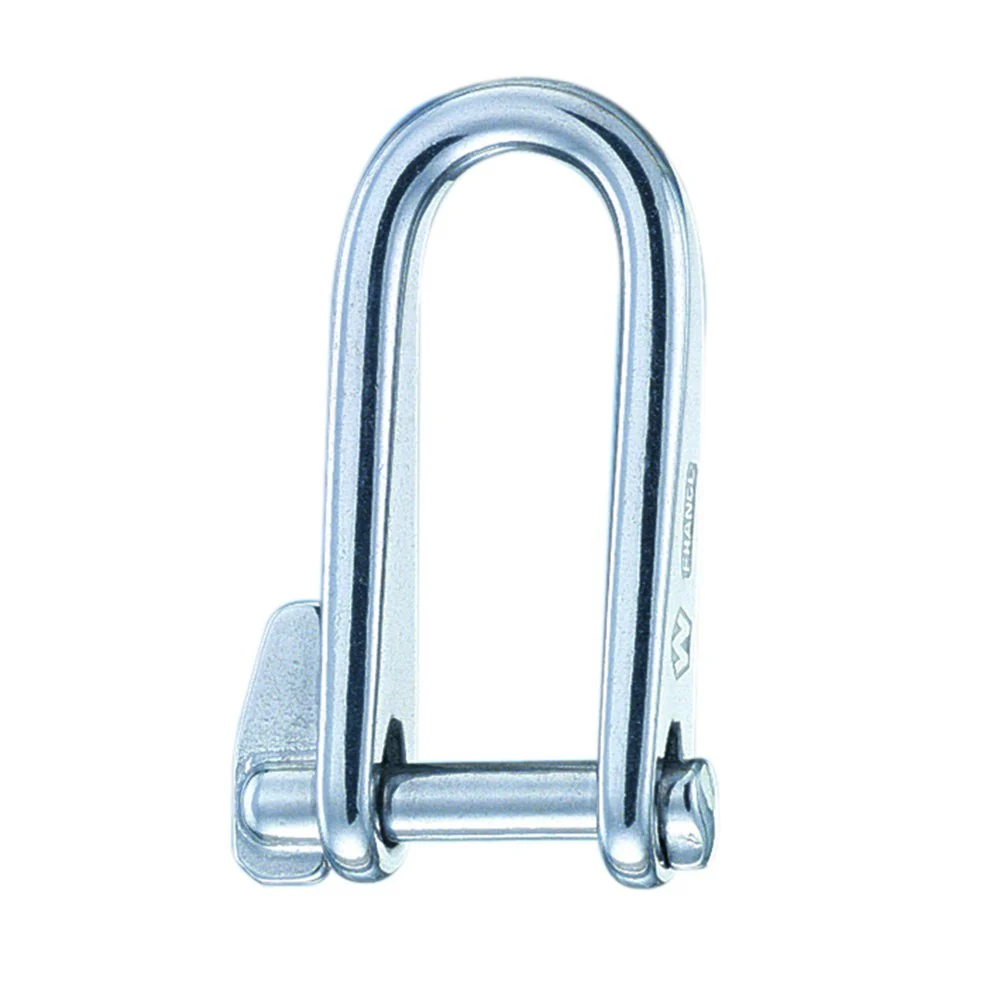

Wichard Key Pin Shackle
Wichard Key Pin Shackles made of 316 marine grade forged stainless steel featuring key pin shackle at one end. Close these threadless shackles by rotating the pin half turn. Due to its design the pin will not fall because of a small indentation into the shackle body.
| Part No. | Pin Dia.(mm) | A (mm) | B (mm) | D (mm) | Work L(kg) | Break L(kg) |
|---|---|---|---|---|---|---|
| WD-1432 | 5 | 37 | 13 | 400 | 1000 | |
| WD-1433 | 6 | 45 | 16 | 520 | 1500 | |
| WD-1434 | 8 | 59 | 21 | 800 | 2300 |
Select Hooks-Shackle Size
From $5.94
Original: $16.96
-65%Wichard Key Pin Shackleā
$16.96
$5.94Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Wichard Key Pin Shackles made of 316 marine grade forged stainless steel featuring key pin shackle at one end. Close these threadless shackles by rotating the pin half turn. Due to its design the pin will not fall because of a small indentation into the shackle body.
| Part No. | Pin Dia.(mm) | A (mm) | B (mm) | D (mm) | Work L(kg) | Break L(kg) |
|---|---|---|---|---|---|---|
| WD-1432 | 5 | 37 | 13 | 400 | 1000 | |
| WD-1433 | 6 | 45 | 16 | 520 | 1500 | |
| WD-1434 | 8 | 59 | 21 | 800 | 2300 |
