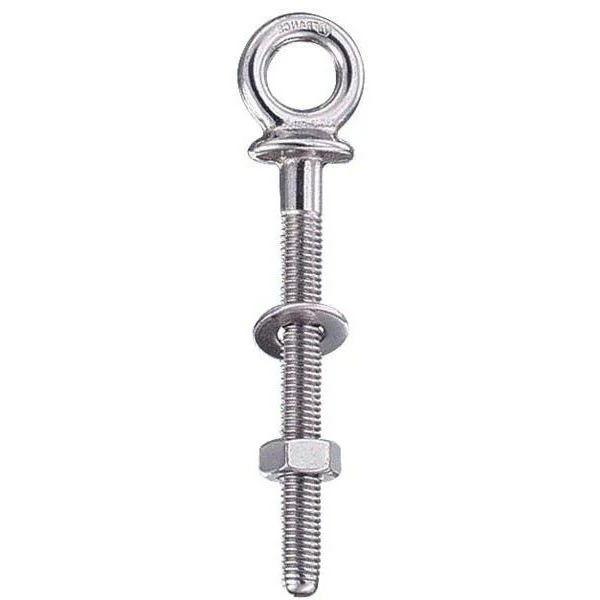

Wichard Stainless Steel Eye Bolt
Wichard rigging screws or also known as eye bolts are made of single pieceĀ high quality forged marine grade stainless steel which guarantee excellent safety standards of your fastening. AllĀ Wichard components are ideal for use in corrosive environments while their strength perform excellent under high loads.
| Part No. | A(mm) | F(mm) | B(mm) | C(mm) | D(mm) | E(mm) | G(mm) | Work Load Kg) | Break Load (Kg) | Max Tight Torque NM |
|---|---|---|---|---|---|---|---|---|---|---|
| WD-6490 | M6 | 40 | 12 | 25 | 5 | 17 | 34 | 560 | 900 | 7.5 |
| WD-6491 | M6 | 60 | 12 | 25 | 5 | 17 | 34 | 560 | 900 | 7.5 |
| WD-6492 | M8 | 80 | 14 | 30 | 6 | 20 | 70 | 960 | 1500 | 18 |
| WD-6495 | M10 | 100 | 16 | 36 | 7 | 25 | 88 | 1600 | 2700 | 36 |
| WD-6497 | M12 | 120 | 18 | 41 | 8 | 28 | 105 | 2400 | 3500 | 60 |
Select Hooks-Shackle Size
From $5.98
Original: $17.09
-65%Wichard Stainless Steel Eye Boltā
$17.09
$5.98Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Wichard rigging screws or also known as eye bolts are made of single pieceĀ high quality forged marine grade stainless steel which guarantee excellent safety standards of your fastening. AllĀ Wichard components are ideal for use in corrosive environments while their strength perform excellent under high loads.
| Part No. | A(mm) | F(mm) | B(mm) | C(mm) | D(mm) | E(mm) | G(mm) | Work Load Kg) | Break Load (Kg) | Max Tight Torque NM |
|---|---|---|---|---|---|---|---|---|---|---|
| WD-6490 | M6 | 40 | 12 | 25 | 5 | 17 | 34 | 560 | 900 | 7.5 |
| WD-6491 | M6 | 60 | 12 | 25 | 5 | 17 | 34 | 560 | 900 | 7.5 |
| WD-6492 | M8 | 80 | 14 | 30 | 6 | 20 | 70 | 960 | 1500 | 18 |
| WD-6495 | M10 | 100 | 16 | 36 | 7 | 25 | 88 | 1600 | 2700 | 36 |
| WD-6497 | M12 | 120 | 18 | 41 | 8 | 28 | 105 | 2400 | 3500 | 60 |
