Garmin GSD 25 Traditional Sonar With ClearVu, SideVu 010-01159-00

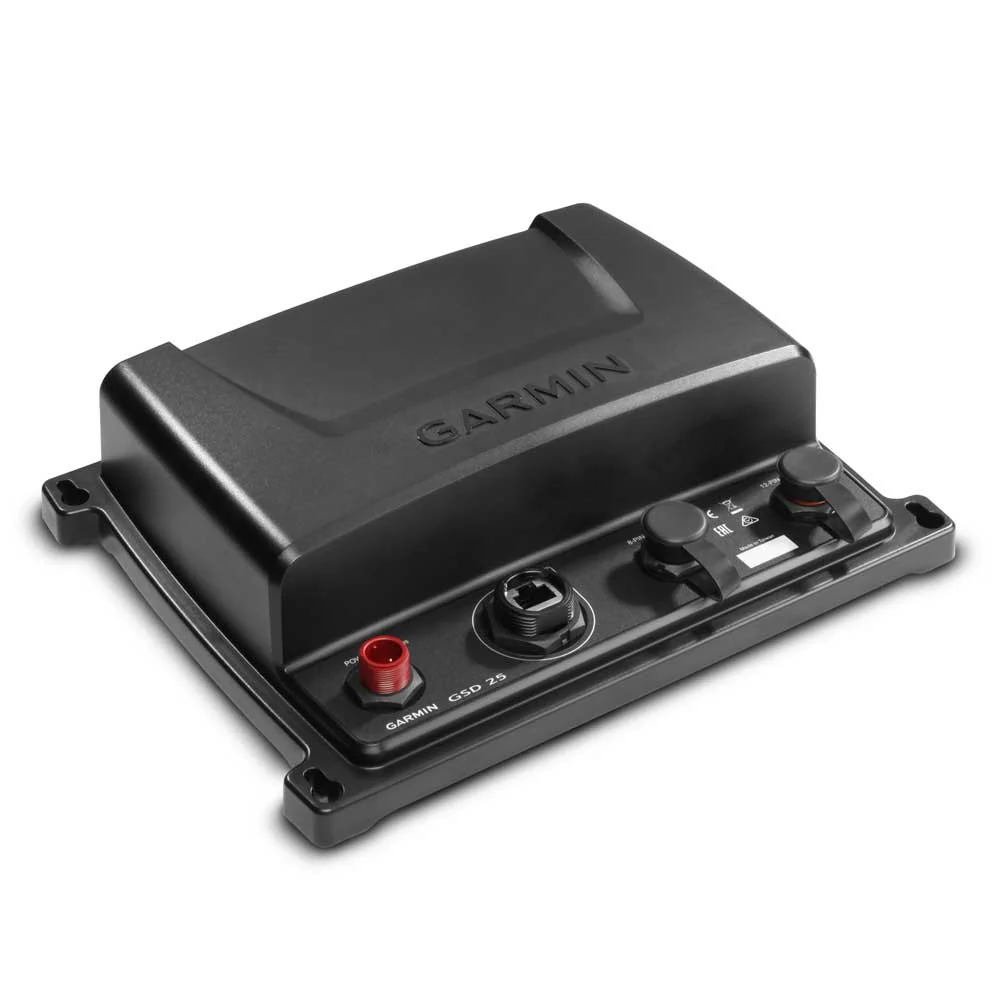

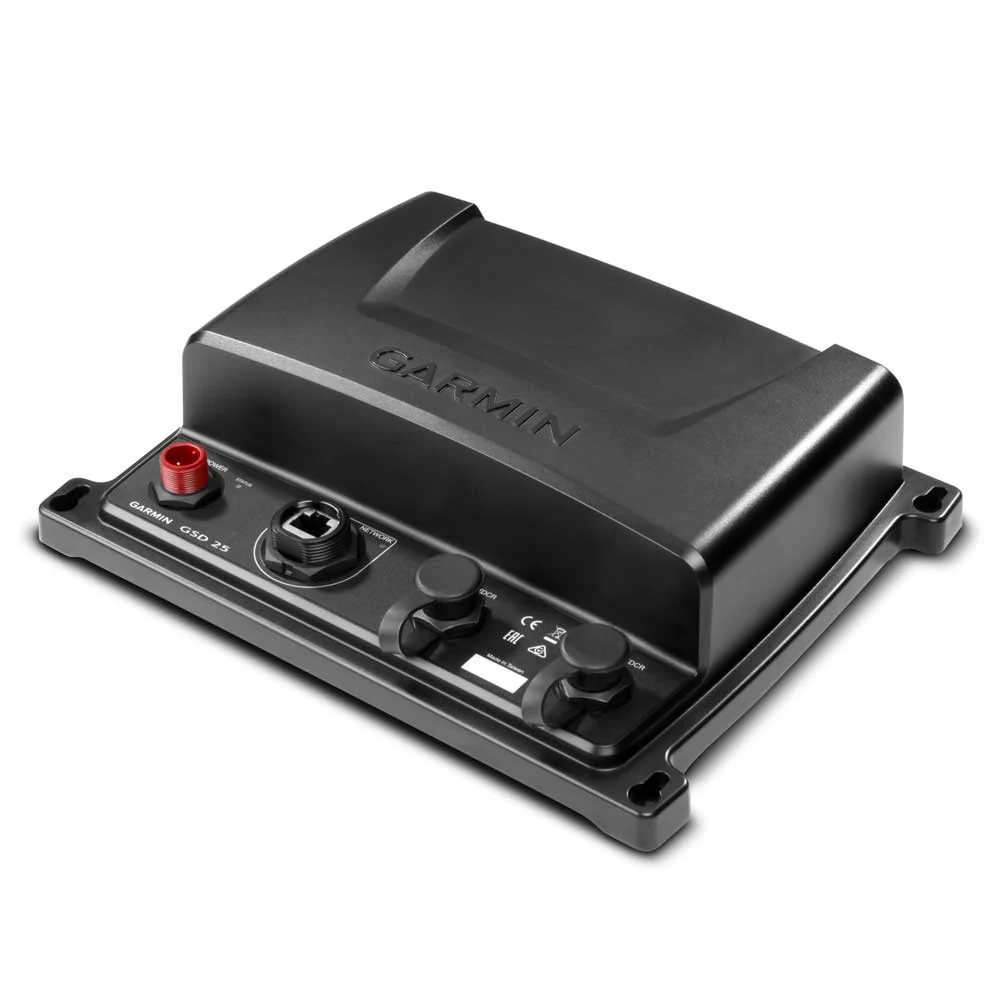

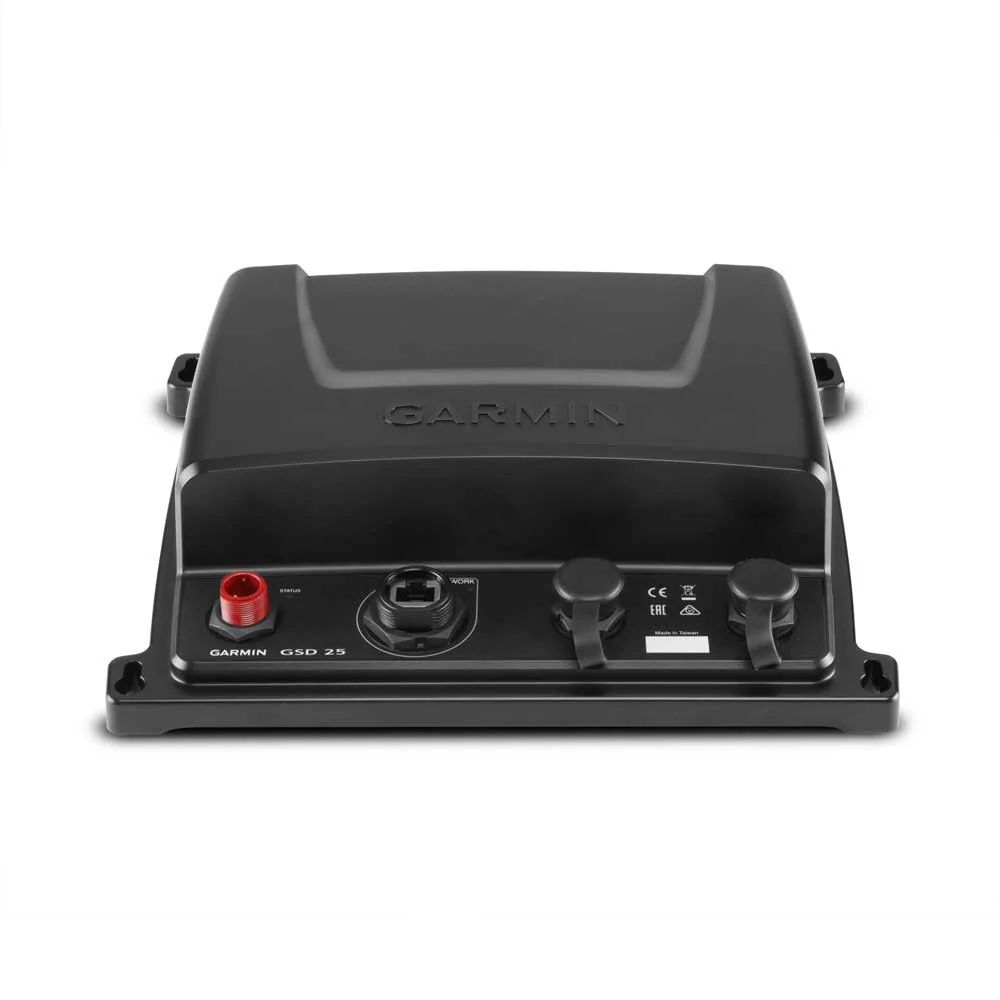

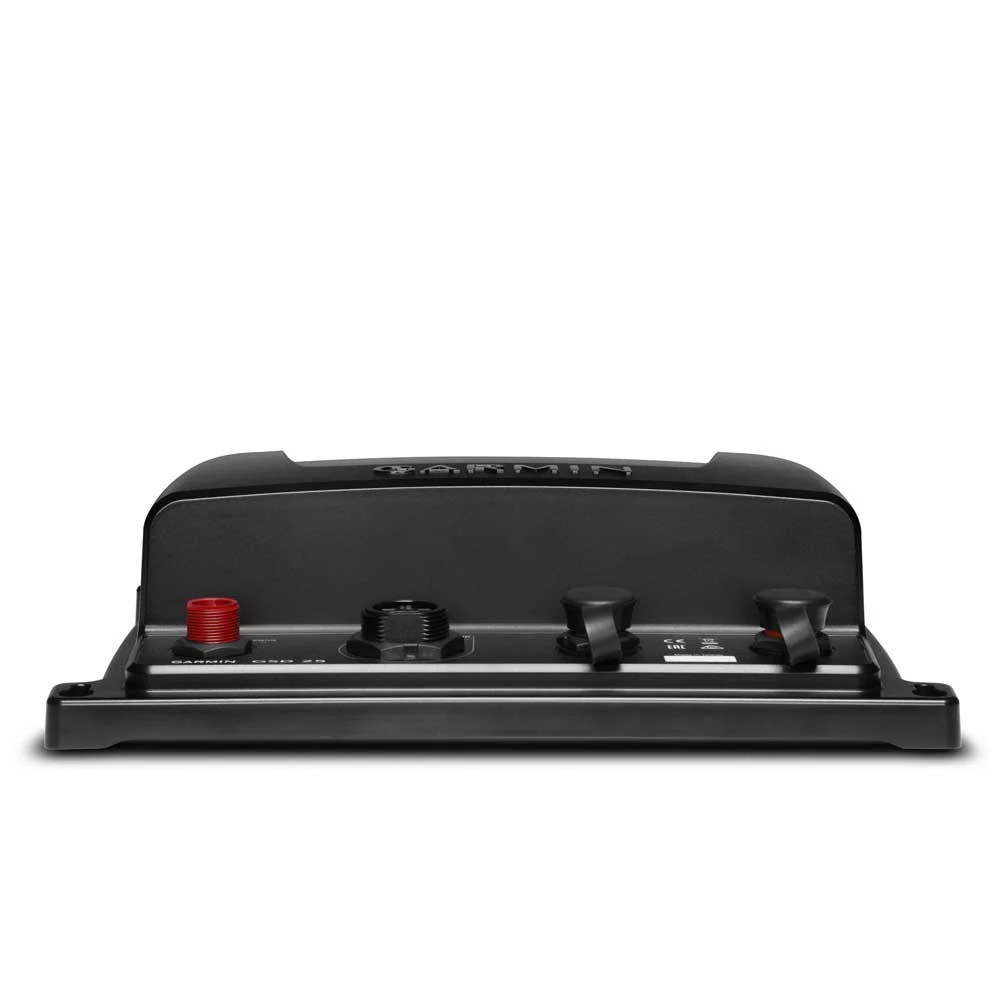

GSD 25 Traditional Sonar Module - ClearVu - SideVu

The GSD 25 traditional sonar module offers a dual-channel 1 kW CHIRP, ClearVu and SideVu scanning capability for bottom and both sides of your boat up to 5.000 feet depths. The image returned is so clear that you can actually distinguish the difference between small and closely spaced fish.

The CHIRP Technology (Compressed High Intensity Radiated Pulse) is the most advanced sonar technology available for use by fishing and public nowadays, offering a much better and clearer image under water, comparing to any other sonar system. With the 1 kW CHIRP you can easily adjust the frequency to  low/medium, low/high and medium/high so that you can obtain the best performance from your sonar.

The CHIRP, ClearVu and SideVu technology is built-in to Garmin's GPSMAP xsv combos and GSD25 Premium Sonar Module.

GSD 25 General Specifications

• Case made of polycarbonate
• Physical Dimensions: 251 x 192 x 66mm
• Weight: 0.77kg
• IPX7 Water Rating
• 1 x Garmin Marine Network Ports
• Temperature Range From -15°C to 70°C

Sonar Specifications and Features

• Supported Frequencis

            - Traditional: 50/200, 77/200. 83/200

            - Single Channel CHIRP: 40  - 250

            - Dual Channel CHIRP: 40 - 250

            - SideVu/ClearVu: CHIRP 455/800 and CHIRP 260/455 (dependent on transducer - Sold Separately)

• 1 kW Transmit Power
• Maximum Depth 1,524m

Electrical Specifications

• Power input: 10 - 35V
• Power usage: 26.84 W maximum
• Fuse 4.0A
• Compass-safe distance: 30cm (11.8in).

What's In The Box?

• GSD 25
• Right-angle power cable (6 feet)
• Right-angle network cable (6 feet)
• Mounting hardware
• Product Documentation
