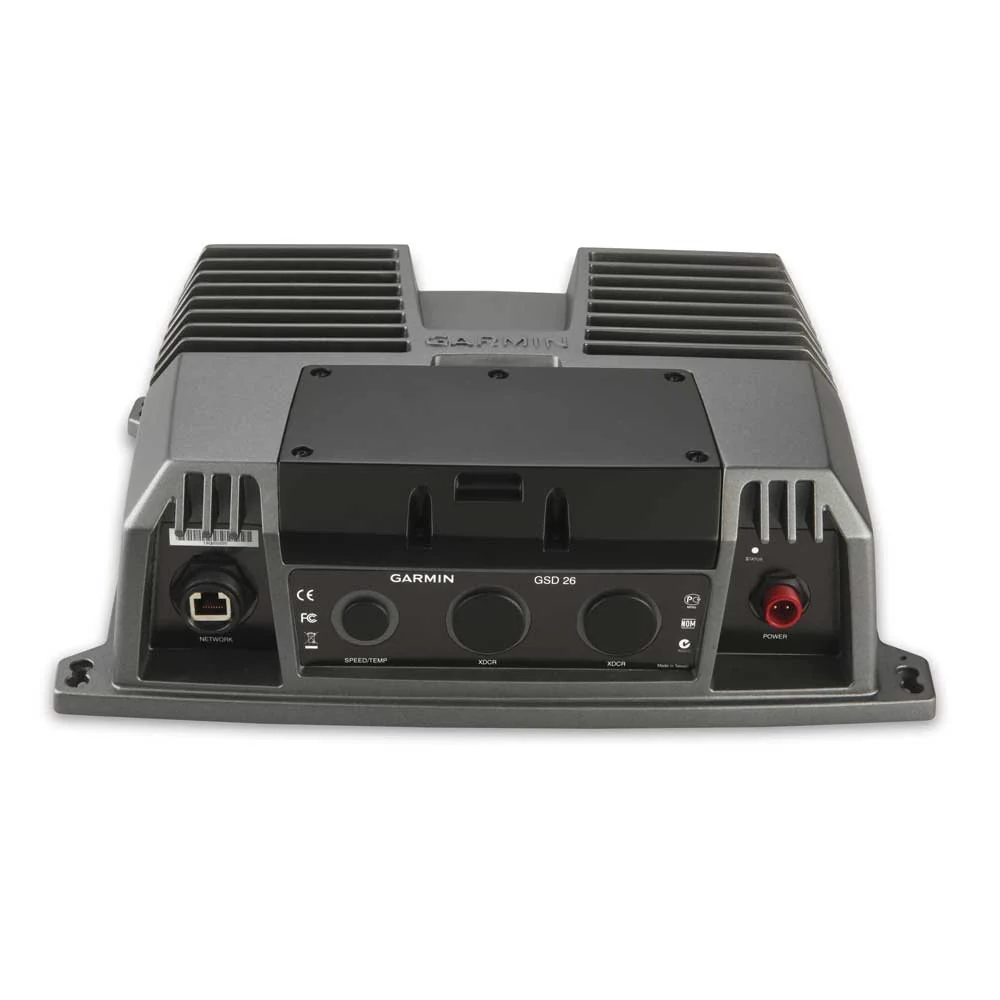

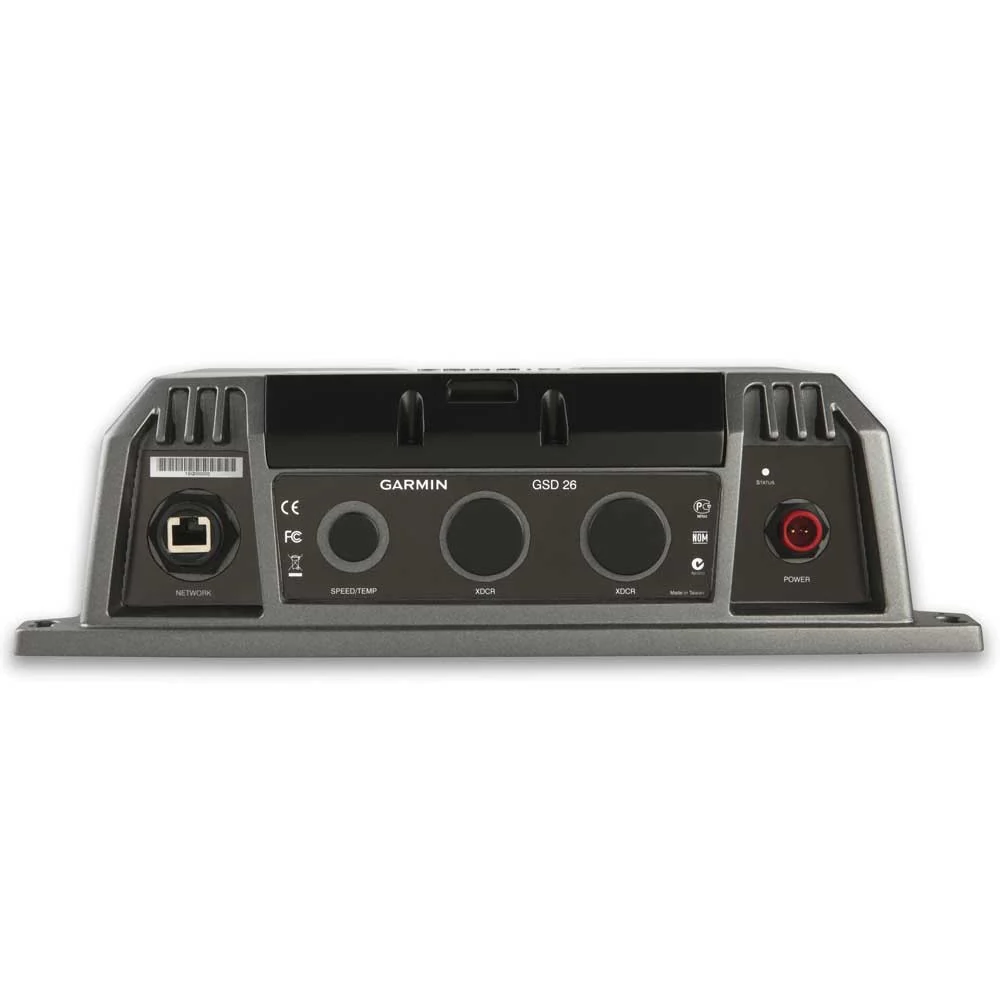

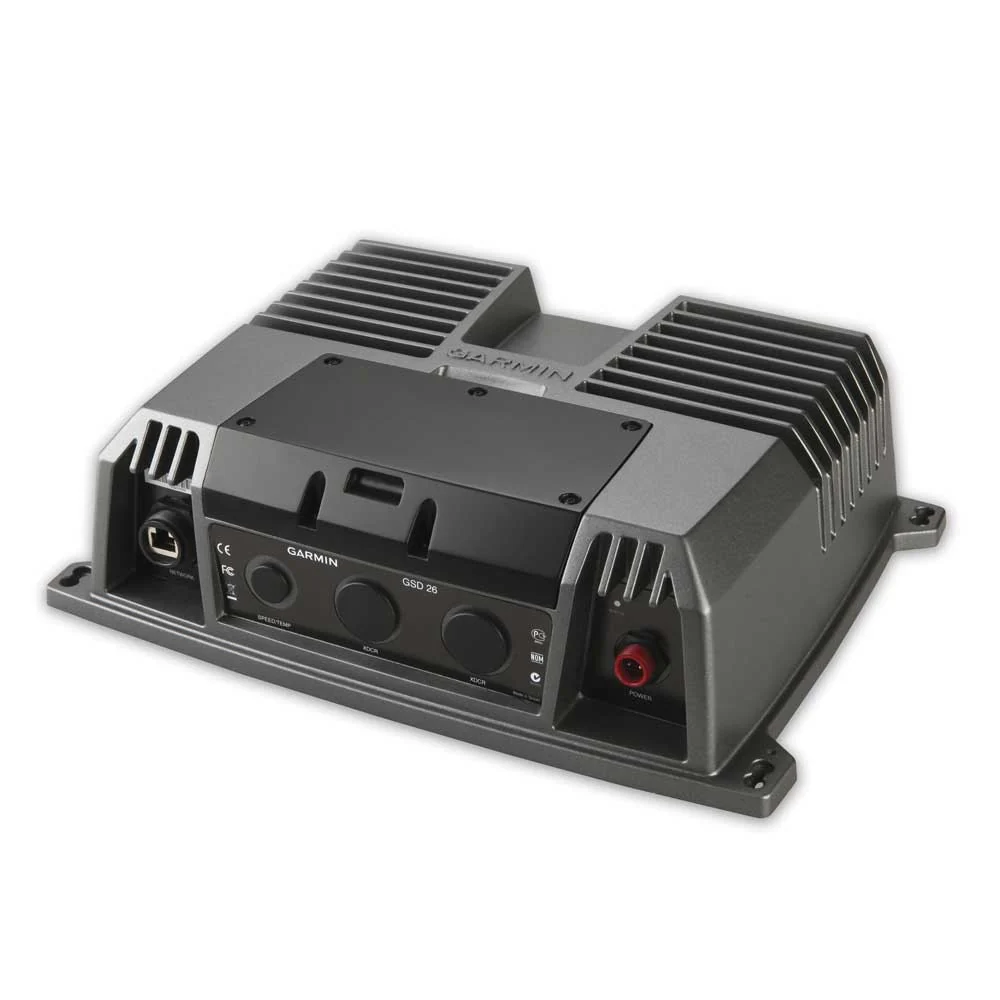

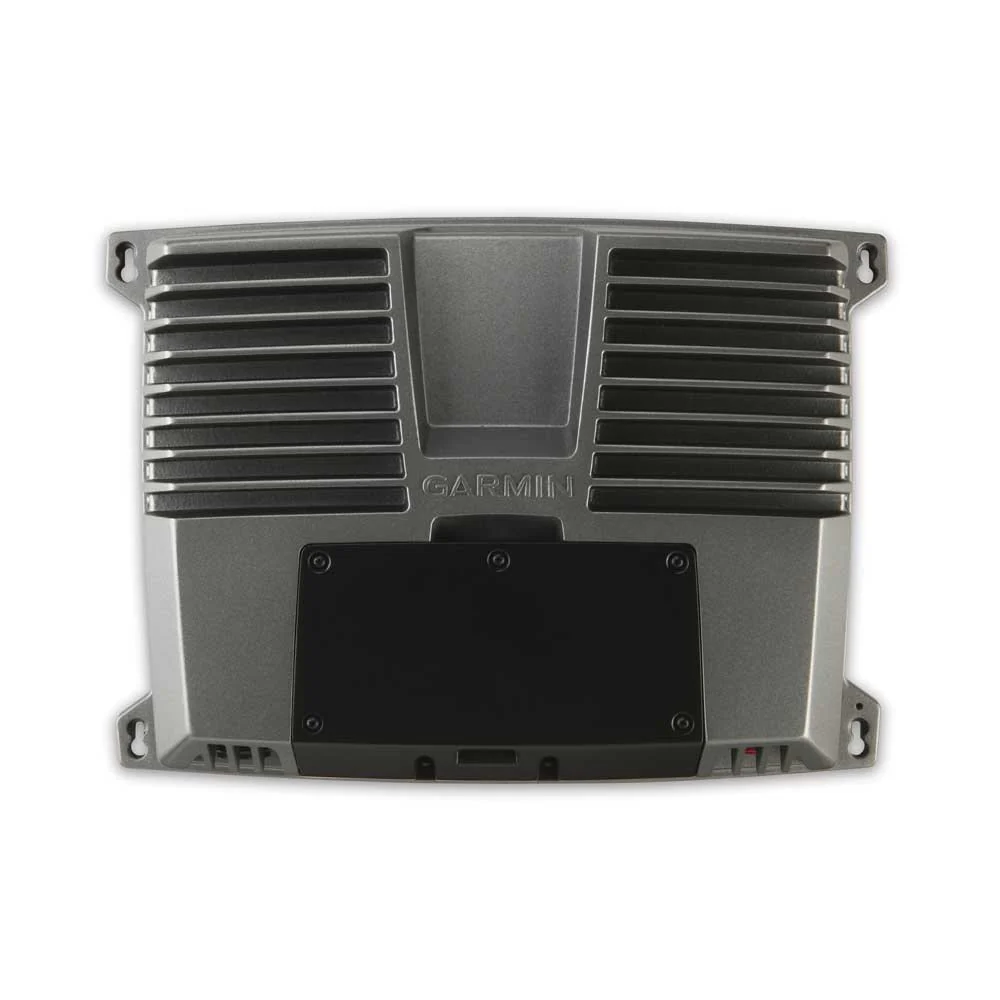

Garmin GSD 26 CHIRP Sonar Module 010-00958-00

Garmin's new Spread Spectrum black box sounder is able to scan on multiple frequencies at the same time and return a comprehensive amount of data and display it on your Garmin charplotter via the Garmin Marine Network. Easy to install and use the GSD 26 CHIRP Professional Sounder Module is compatible with 40xx, 50xx, 60xx and 70xx series multi function displays and offer excellent sonar performance for fishermen and unrivaled target separation at far greater depth than traditional sonar (up to 10.000ft).

Garmin GSD 26 CHIRP Sonar Module Specifications

• Fully gasketed, aluminium and steel housing with plastic access panel
• Physical Dimensins: 274mm x 373mm x 100mm
• Weight: 5.67kg
• IPX7 Water Rating
• 1 x Garmin Marine Network Ports
• Temperature range: From -15°C to 70°C

Sonar Specifications and Features

• Supported Frequencies: 25 - 210 kHz - depending on transducer (Transducer sold separately)
• Transmit Power: 25 - 3000 W rms
• ClearVu and SideVu: Not Avaialable
• Maximum Depth: up to 10.000ft (dependent on transducer, water salinity, bottom type and other water conditions)
• Traditional CHIRP Capable

Electrical Specifications

• Power Input: 10 - 35V
• Power Usage: max 100 W
• 10A Fuse
• 60cm Compass Safe Distance

What's In The Box?

• GSD 26 CHIRP Sonar Module Unit
• Power Cable
• Marine Network Cable (6 ft)
• Mounting Hardware
• Software update SD card
• Documentation
