Garmin ECHOMAP Ultra2 102sv, WW, w/GT56UHD-TM xducer

Maximize your fishing experience with the Garmin ECHOMAP Ultra2 102sv. This advanced fish finder features a GT56UHD-TM transducer for exceptional underwater clarity. With precise GPS navigation and CHIRP traditional, ClearVü, and SideVü sonar capabilities, you can easily locate and catch more fish than ever before.

• In The Box
• ECHOMAP Ultra 102sv
• GT56UHD-TM transducer
• Charging/data cable

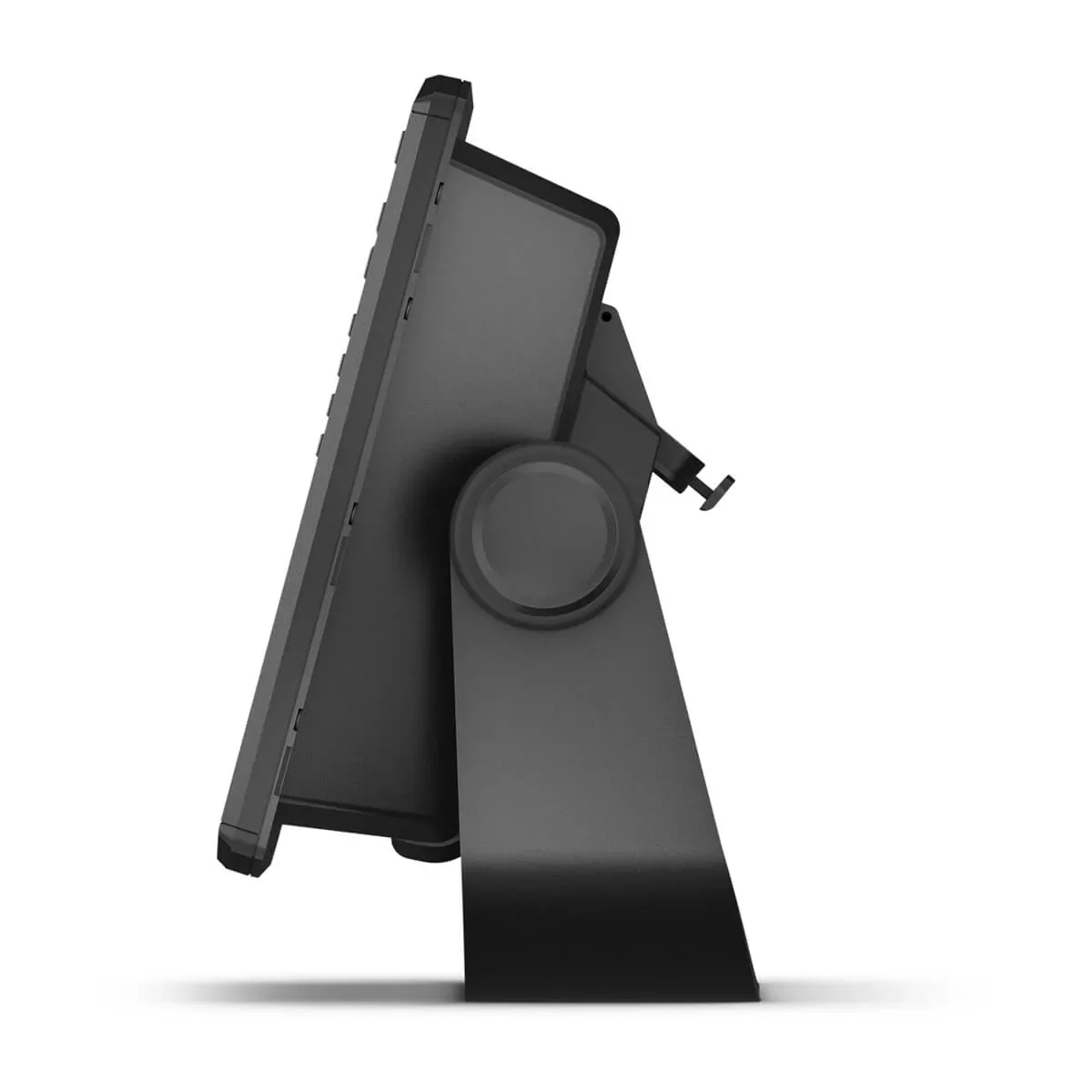

• Bail Mount With Quick Release Cradle
• Protective sun cover
• Hardware
• Documentation

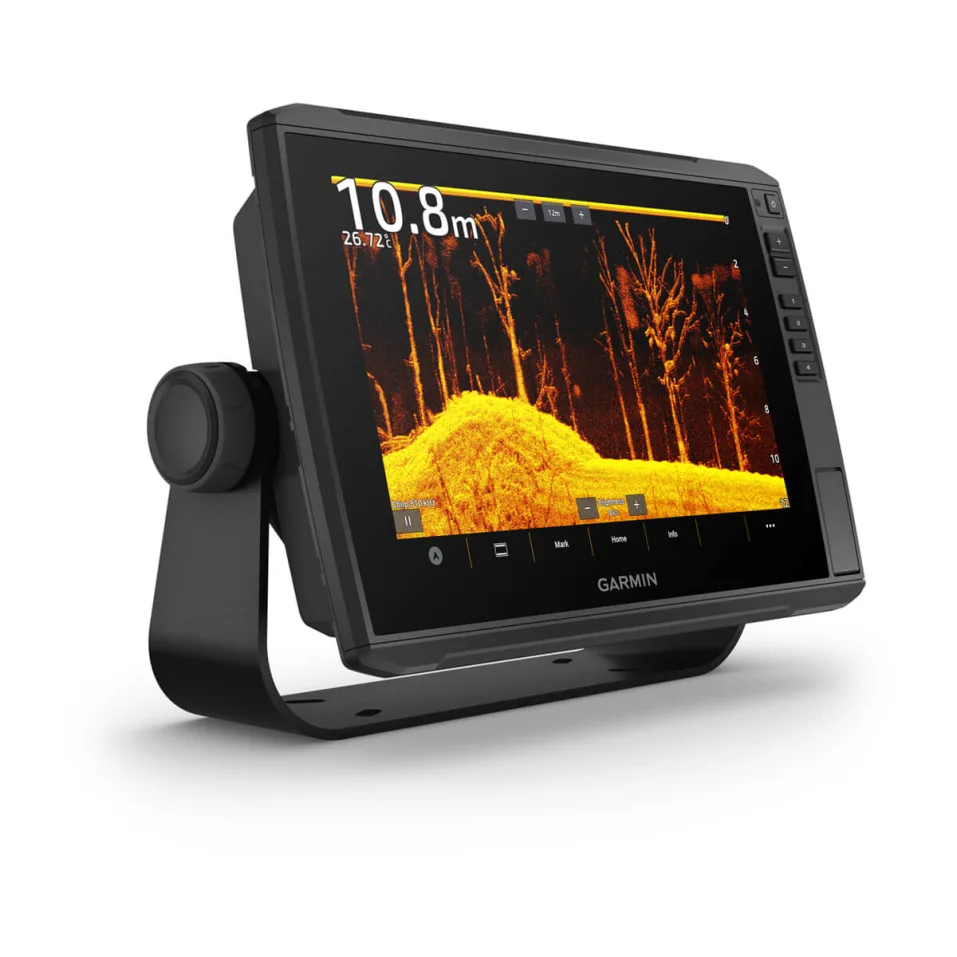

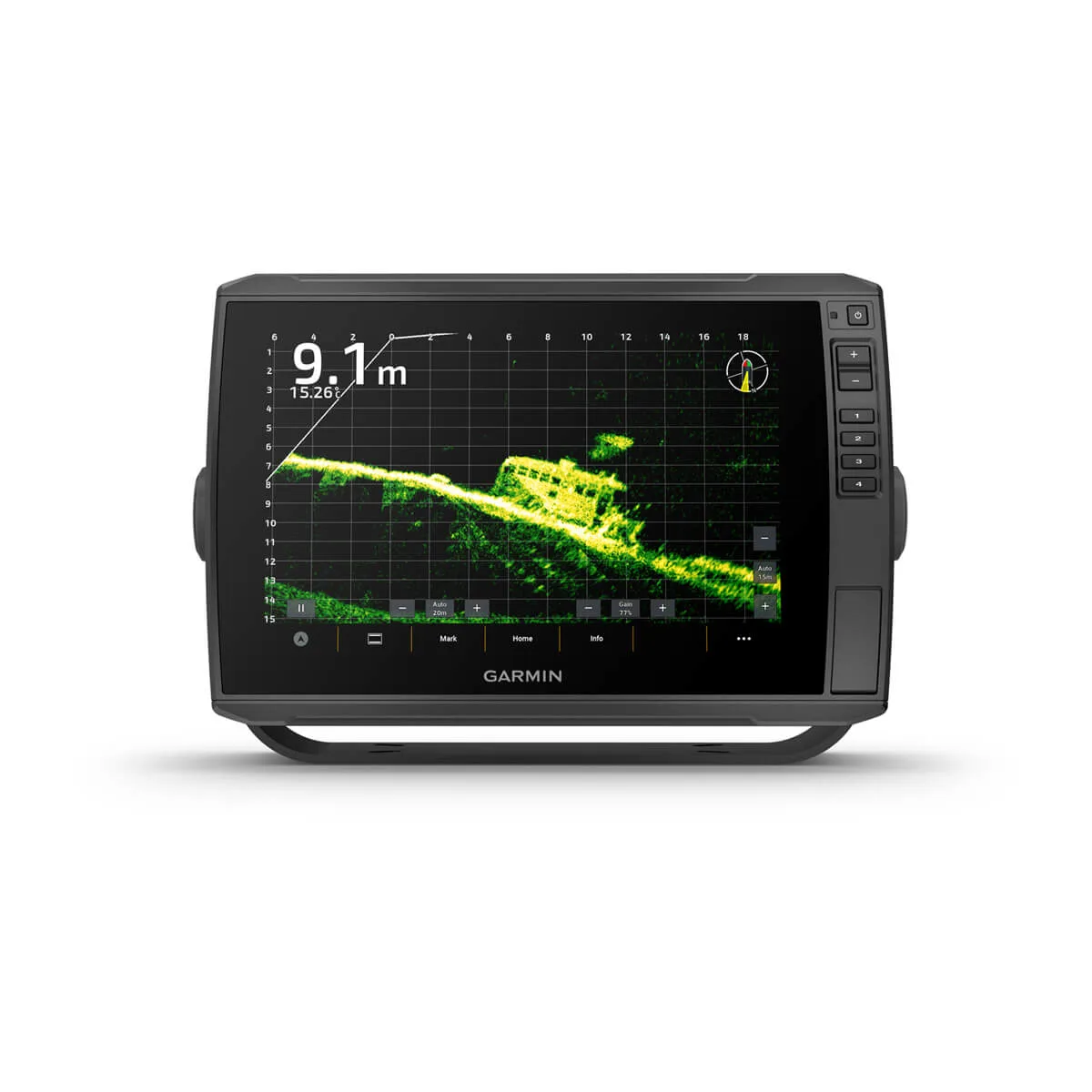

  Maximize your time on the water with the ECHOMAP^™ Ultra 2 chartplotter. Offering all the built-in tools you need to find and catch fish, this version features a 10” touchscreen with keyed assist, in-plane switching display and available preloaded Garmin Navionics+^™ maps. Plus, there’s support for the full line of LiveScope^™ sonars as well as Ultra High-Definition ClearVü^™ and SideVü^™ scanning sonars and Garmin CHIRP traditional sonar (sold separately). It includes Quickdraw Contours software and supports Garmin Navionics+ and premium Garmin Navionics Vision+^™ mapping with relief shading plus Auto Guidance+^™ technology (for planning purposes only; does not replace safe navigation operations). With a wireless connection to your Force^® trolling motor, it lets you create and follow routes, navigate to waypoints, control speed, check battery life and more.

  ·      Multi-band GPS technology with fast 10 Hz updates not only gives improved position accuracy, it also delivers improved signal reception, particularly in areas where signals are reflected or weak

  ·      Offers NMEA 2000^® network support for autopilot, FUSION-Link^™ audio system, engine data and digital switching

  ·      Wireless connectivity with Force^® trolling motors offers boat control features from the chartplotter; create and follow routes, navigate to waypoints, control speed, check battery life and more

  ·      Use the screen recording feature through the ActiveCaptain^® app on your compatible smartphone to capture what you see on the chartplotter so you can save and share your fish catches (including LiveScope™ sonar, if installed)

  ·      Built-in Quickdraw Contours mapping software creates personalized fishing maps on-screen with 1’ contours as you fish

  ·      Built-in Wi-Fi^® connectivity pairs with the free ActiveCaptain^® app on your compatible smartphone for access to the OneChart^™ feature to purchase and download new charts; also receive access to daily chart updates, smart notifications, software updates, Garmin Quickdraw^™ Community data and more

  • Quick-release mount for fast and easy mobility
  • Dimension    29.5 x 19.5 x 9.8 cm (11.6″ x 7.7″ x 3.9″)
  • Weight    1.8 kg (4 lbs)
  • Water rating    IPX7

  • Touchscreen
  • Display Type    WXGA, IPS
  • Display Size    21.7 x 13.6 cm; 21.7 cm diagonal (8.5″ x 5.4″; 10″ diagonal)
  • Display Resolution    1280 x 800 pixels
  • Mounting Options    Bail or flush
  • Input    Touchscreen with Keyed Assist
  • Maps & memory
  • Accepts Data Cards    2 microSD Cards
  • Waypoints    5000
  • Track points    50,000
  • Tracks    50 saved tracks
  • Navigation Routes    100
  • Sensors
  • GPS    GLONASS    Galileo    BeiDou
  • Has built-in receiver
  • Receiver    10 Hz
  • NMEA 2000® compatible
  • Supports WAAS
  • Supports multi-band, multi-constellation GPS
  • Optional map support
  • BlueChart g3    BlueChart g3 Vision    Garmin Navionics+™    Garmin Navionics Vision+™
  • TOPO 100K
  • Standard Mapping
  • Garmin Quickdraw Contours
  • Chartplotter features
  • AIS    DSC
  • Supports Fusion-Link™ compatible radios
  • ActiveCaptain Mobile Planning Compatible
  • Sailing features
  • Electrical features
  • Power Input    9 to 18 Vdc
  • Typical current draw at 12 Vdc    2.3 A
  • Maximum current draw at 12 Vdc    5 A
  • Maximum power usage at 10 Vdc    34 W
  • Sonar features & specifications
  • Displays sonar
  • Power output    600 W
  • Traditional sonar (dual frequency/beam)    built-in (single channel
  • CHIRP, 70/83/200 kHz, L, M, H CHIRP)
  • ClearVü    Built-in 260/455/800/1000/1200 kHz
  • SideVü    Built-in 260/455/800/1000/1200 kHz
  • Panoptix™ sonar
  • LiveScope

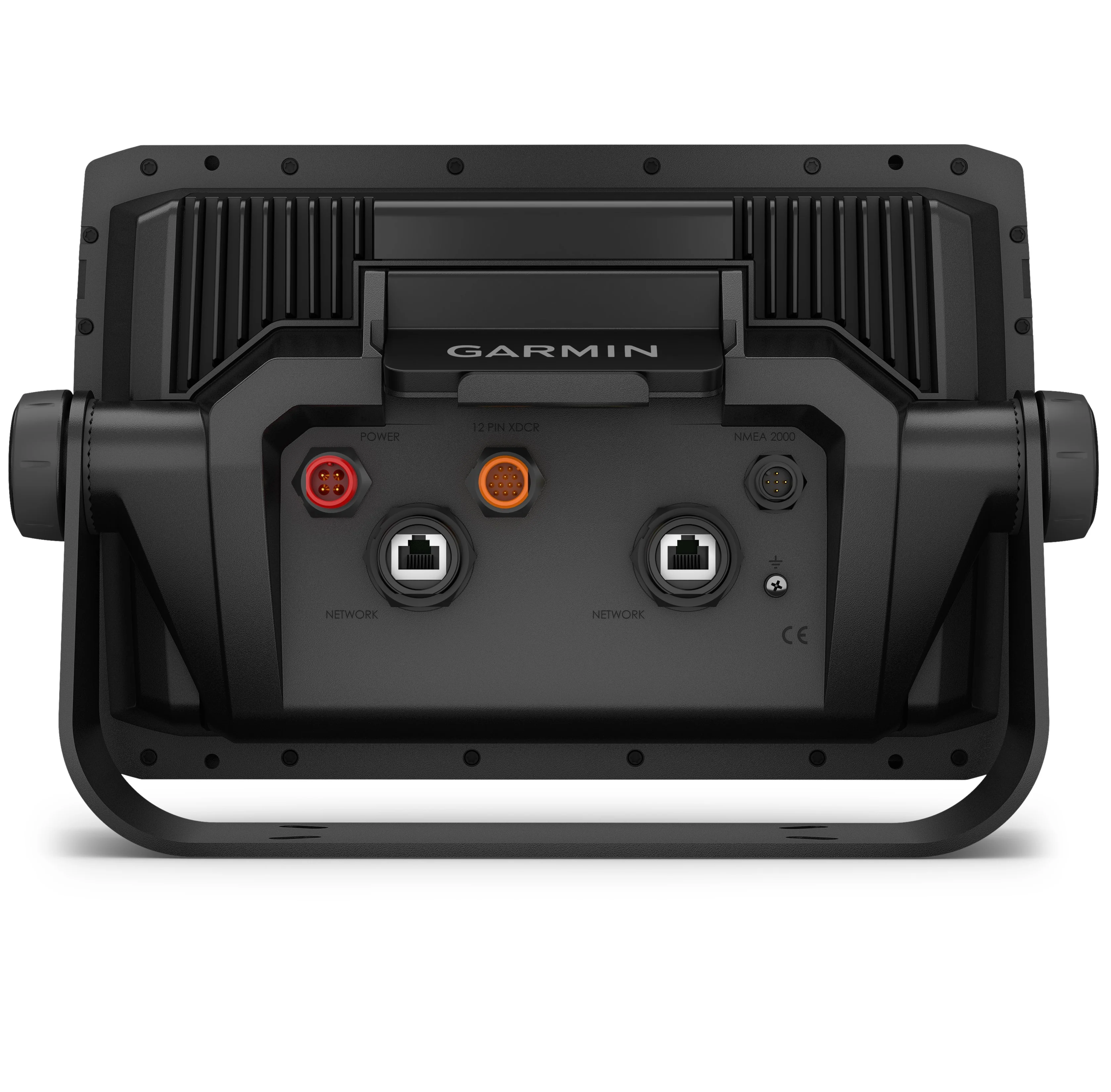

  • Connections
  • NMEA 2000® ports    1
  • Garmin Marine Network Ports    2 (large connector)
  • 12-pin transducer ports    12-pin scanning sonar
  • ANT+ (Connectivity)
  • Garmin Wi-Fi network (local connection)
