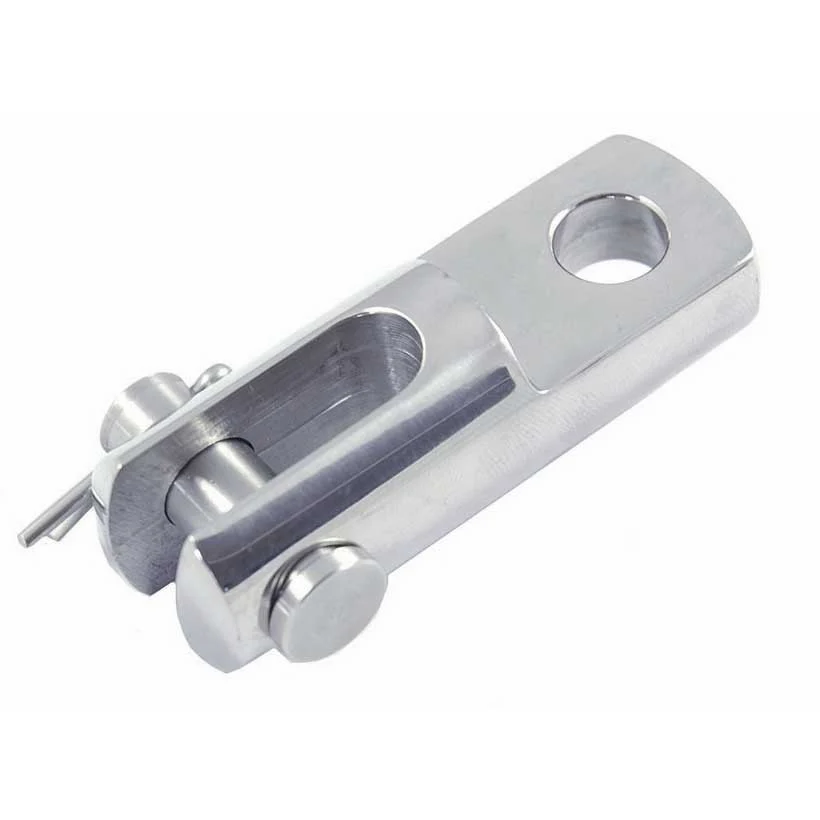

Proboat Stainless Steel Machined Toggle
Forged Stainless Steel machined toggle suitable for all types of marine applications. Used to extend standing rigging, mainly added to the bottom of a turnbuckle or also known asĀ rigging screw to provide flexibility (toggle) at the chain plate. Available in different pin sizes.

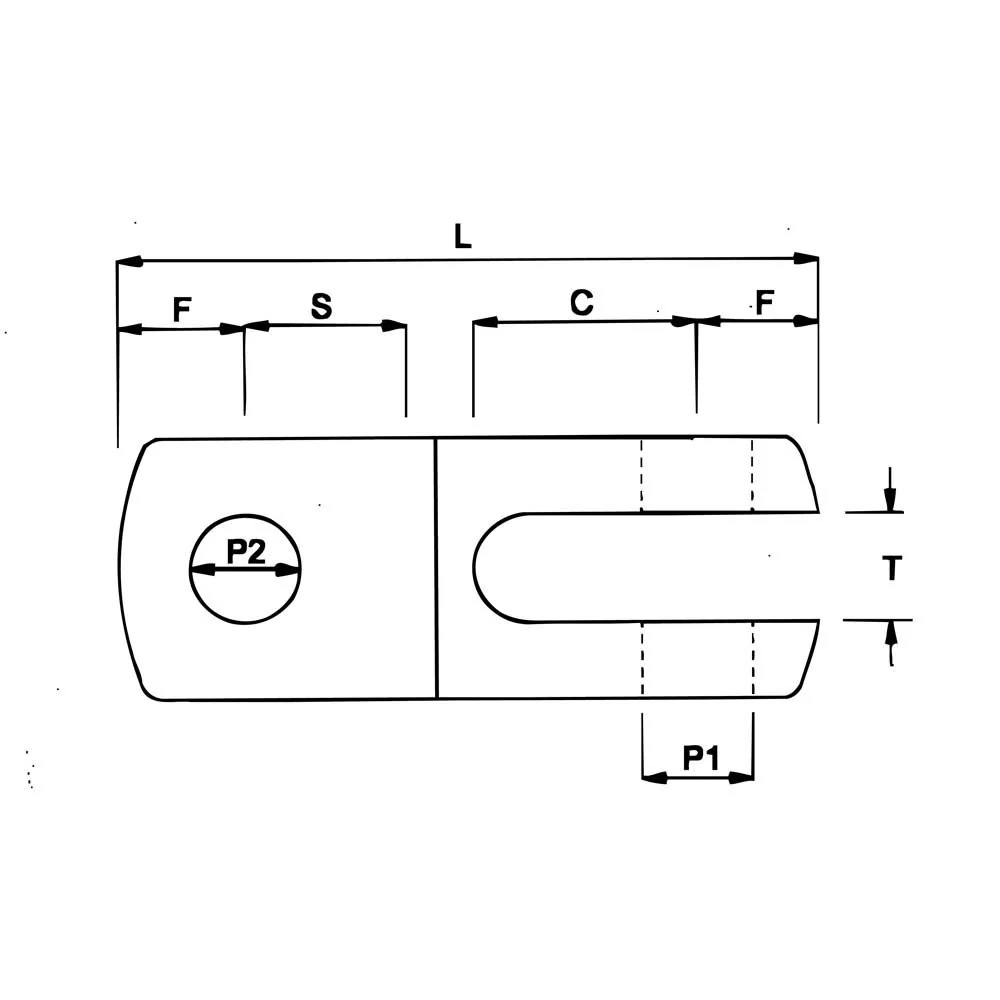

| Part No. | P1 (mm) | P2 (mm) | F (mm) | S (mm) | C (mm) | T (mm) | L (mm) | Break Load(Kg.) |
|---|---|---|---|---|---|---|---|---|
| LX-G103 | 6 | 6.3 | 7 | 10 | 13 | 6.3 | 42 | 1200 |
| LX-G104 | 8 | 8.0 | 9 | 13 | 16 | 8 | 53 | 1950 |
| LX-G105 | 9.5 | 9.5 | 11 | 16 | 19 | 10 | 64 | 3000 |
| LX-G106 | 11 | 11.1 | 12 | 18 | 22 | 11 | 72 | 4200 |
Select Hooks-Shackle Size
From $13.30
Original: $37.99
-65%Proboat Stainless Steel Machined Toggleā
$37.99
$13.30Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Forged Stainless Steel machined toggle suitable for all types of marine applications. Used to extend standing rigging, mainly added to the bottom of a turnbuckle or also known asĀ rigging screw to provide flexibility (toggle) at the chain plate. Available in different pin sizes.
| Part No. | P1 (mm) | P2 (mm) | F (mm) | S (mm) | C (mm) | T (mm) | L (mm) | Break Load(Kg.) |
|---|---|---|---|---|---|---|---|---|
| LX-G103 | 6 | 6.3 | 7 | 10 | 13 | 6.3 | 42 | 1200 |
| LX-G104 | 8 | 8.0 | 9 | 13 | 16 | 8 | 53 | 1950 |
| LX-G105 | 9.5 | 9.5 | 11 | 16 | 19 | 10 | 64 | 3000 |
| LX-G106 | 11 | 11.1 | 12 | 18 | 22 | 11 | 72 | 4200 |
