Stainless Steel Fork and Fork Rigging Screw

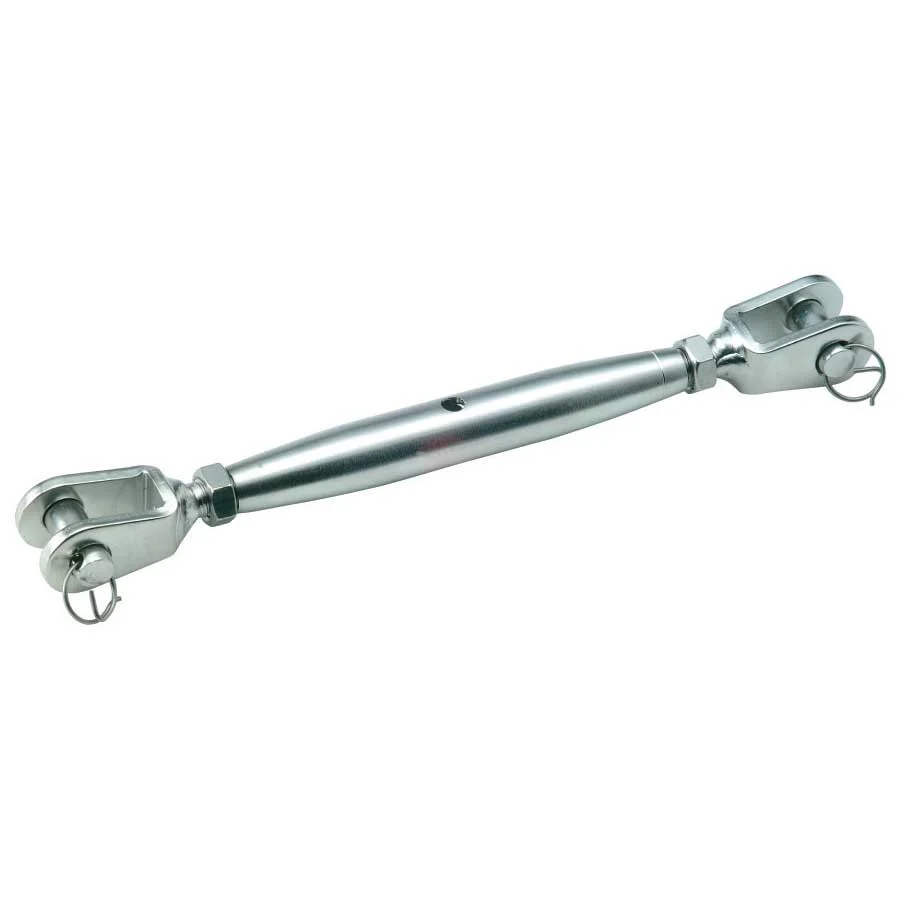

A closed body rigging screw or also known as turnbuckle, tensioner or bottle screw, made ofĀ marine grade stainless steel with fork and clevis pin at each end.Ā Polished to aĀ mirror finish, these turnbuckles are the perfect choice for a wide range of marine applications or in other high corrosive environments. Ā

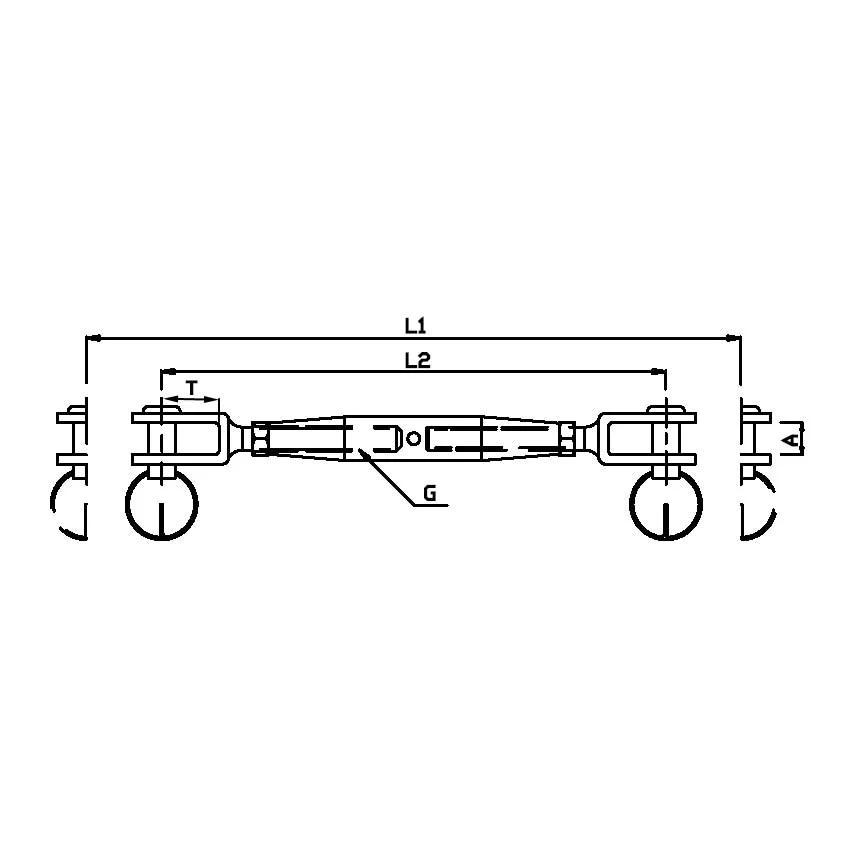

| Part No. | Thread | Pin Dia.(mm) | A(mm) | L1(mm) | L2(mm) | T(mm) | Break Load(Kg.) |
|---|---|---|---|---|---|---|---|
| BW-120005 | M5 | 5.0 | 7.5 | 180 | 126 | 12 | 800 |
| ED-120006 | M6 | 5.0 | 7.5 | 200 | 138 | 12 | 1000 |
| ED-120008 | M8 | 6.0 | 9.5 | 234 | 158 | 13 | 1600 |
| ED-120010 | M10 | 8.0 | 11 | 272 | 188 | 15 | 3200 |
| ED-120012 | M12 | 12.0 | 14 | 350 | 244 | 25 | 5100 |
Select Hooks-Shackle Size
From $32.04
Stainless Steel Fork and Fork Rigging Screwā
$32.04
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
A closed body rigging screw or also known as turnbuckle, tensioner or bottle screw, made ofĀ marine grade stainless steel with fork and clevis pin at each end.Ā Polished to aĀ mirror finish, these turnbuckles are the perfect choice for a wide range of marine applications or in other high corrosive environments. Ā
| Part No. | Thread | Pin Dia.(mm) | A(mm) | L1(mm) | L2(mm) | T(mm) | Break Load(Kg.) |
|---|---|---|---|---|---|---|---|
| BW-120005 | M5 | 5.0 | 7.5 | 180 | 126 | 12 | 800 |
| ED-120006 | M6 | 5.0 | 7.5 | 200 | 138 | 12 | 1000 |
| ED-120008 | M8 | 6.0 | 9.5 | 234 | 158 | 13 | 1600 |
| ED-120010 | M10 | 8.0 | 11 | 272 | 188 | 15 | 3200 |
| ED-120012 | M12 | 12.0 | 14 | 350 | 244 | 25 | 5100 |
