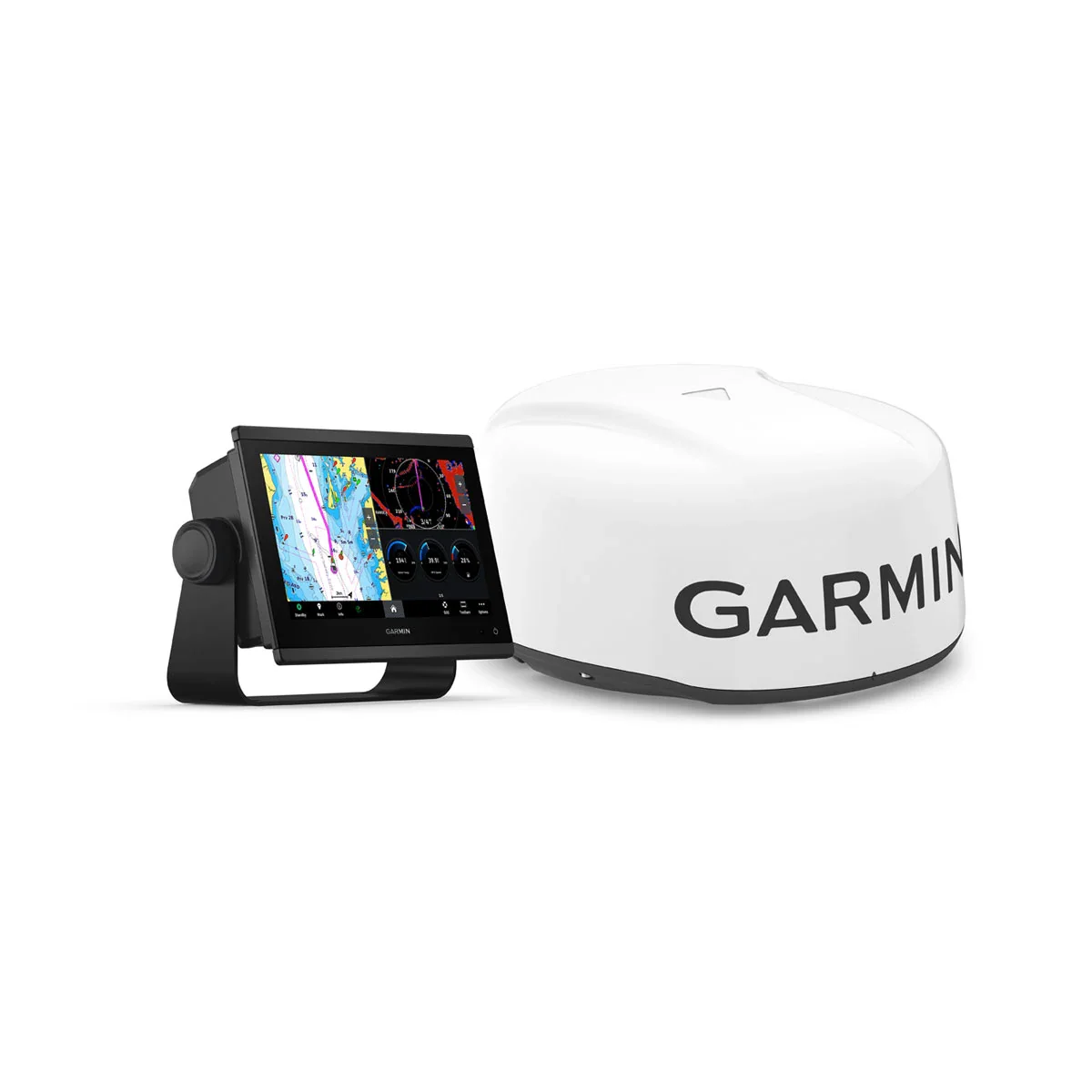

Garmin GPSMAP® 923xsv With GMR™ 18 HD3 Radome Part Number:010-02366-52

• GPSMAP 923xsv chartplotter
• microSD™ card preinstalled
• Power cable
• NMEA 2000^® T-connector
• NMEA 2000 drop cable (2 metres)
• 8-pin transducer to 12-pin sounder adapter cable
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation

With 18 HD+ Radar

Above contents plus:

• GMR 18 HD+ radome
• Mounting hardware kit
• Power cable (15 metres)
• Network cable (15 metres)
• Installation instructions
• Mounting template


  Dimension	9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm)
  Weight	3.6 lbs (1.6 kg)
  Water rating	IPX7
  Touchscreen	Yes
  Display Type	WXGA display
  Display Size	7.8" x 4.4"; 9.0" diagonal (19.9 x 11.2 cm; 22.9 cm diagonal)
  Display Resolution	1280 x 720 pixels
  Mounting Options	Bail, flush or flat
  Input	Touchscreen

  Maps & memory
  Accepts Data Cards	2 microSD™ cards (back of unit)
  Waypoints	5,000
  Track points	50,000
  Tracks	50 saved tracks
  Navigation Routes	100

  Sensors
  GPS	Yes
  GLONASS	Yes
  Galileo	Yes
  Has built-in receiver	Yes
  Receiver	10 Hz high-sensitivity
  NMEA 2000® compatible	Yes
  NMEA 0183 Compatible	Yes
  Supports WAAS	Yes

  Built-in maps
  Tide tables	Yes

  Optional map support
  BlueChart g3	Yes
  BlueChart g3 Vision	Yes
  LakeVü g3	Yes
  LakeVü g3 Ultra	Yes
  Garmin Navionics+™	Yes
  Garmin Navionics Vision+™	Yes
  TOPO 100K	Yes
  Standard Mapping	Yes
  Garmin Quickdraw Contours	Yes
  Raster chart support	Yes

  Chartplotter features
  Garmin SmartMode compatible (customisable monitor presets)	Yes
  AIS	Yes
  DSC	Yes
  Supports Fusion-Link™ compatible radios	Yes
  GSD Black Box Sonar Support	Yes
  GCV Black Box Sonar Support	Yes
  ActiveCaptain Mobile Planning Compatible	yes
  GRID (Garmin Remote Input Device) compatible	Yes
  Wireless Remote Compatible	Yes
  Sailing features	Yes
  Spoken audio alerts	Yes
  OneHelm support	Yes

  Electrical features
  Power Input	10 to 32 Vdc
  Typical current draw at 12 Vdc	1.37 A
  Maximum current draw at 12 Vdc	3.20 A
  Maximum power usage at 10 Vdc	40.2W

  Sonar features & specifications
  Displays sonar	Yes
  Power output	1 kW
  Traditional sonar (dual frequency/beam)	built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
  ClearVü	Built-in 260/455/800/1000/1200 kHz
  SideVü	Built-in 260/455/800/1000/1200 kHz
  Panoptix™ sonar	Yes
  LiveScope	Yes

  Connections
  NMEA 2000® ports	1
  NMEA 0183 Input (Rx) Ports	1 (Differential)
  NMEA 0183 output (Tx) ports	1
  Video input ports	1 BNC
  J1939 ports	1
  Garmin Marine Network Ports	1
  12-pin transducer ports	1
  USB ports	Yes
  Bluetooth® calling	Yes
  ANT+ (Connectivity)	Yes
  Garmin Wi-Fi network (local connection)	Yes
