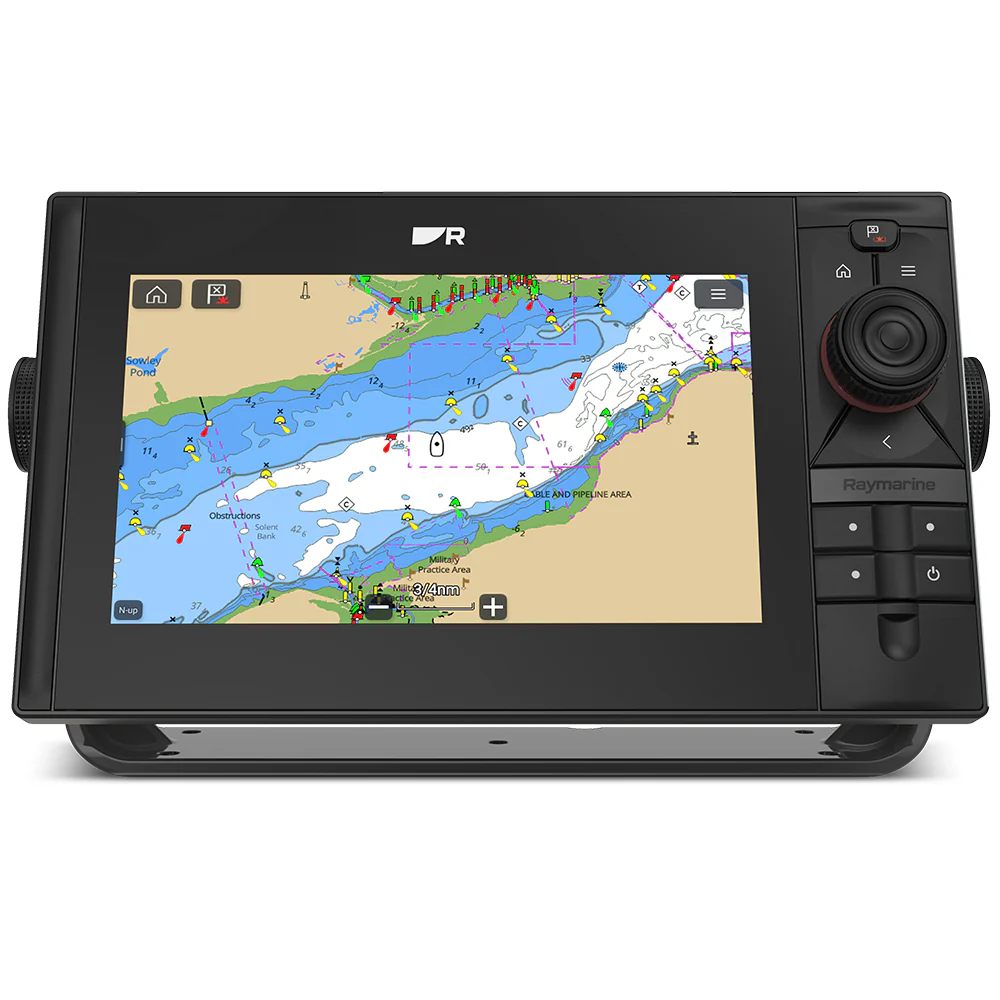

Raymarine Axiom2 PRO
The Raymarine Axiom2 PRO is a professional-grade marine multifunction display available in three screen sizes—9", 12.1", and 15.6"—delivering exceptional clarity with HD to Full HD resolution. Built for serious mariners, it combines advanced GPS/GNSS positioning with CHIRP conical sonar, supporting depths from 2 feet to 900 feet depending on water conditions. The unit features dual RayNet Ethernet ports, NMEA 2000 connectivity, Wi-Fi, Bluetooth, and comprehensive video/audio inputs for integrated vessel systems. With 64GB internal storage, dual MicroSDXC card slots, and IPS touchscreen technology supporting up to 16 simultaneous touches, the Axiom2 PRO handles complex navigation and fish-finding tasks with ease. Rated IPx6/IPx7 waterproof and operating across -25°C to +55°C, it's engineered for demanding marine environments. Power-efficient at 28–42W depending on model, it integrates seamlessly into 12V or 24V DC systems.
| Physical | |
|---|---|
| Dimensions (Trunnion mounted) |
Axiom 2 Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in) Axiom 2 Pro 12: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in) Axiom 2 Pro 16: Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in) |
| Dimensions (Surface/Flush mounted) |
Axiom 2 Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in) Axiom 2 Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in) Axiom 2 Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in) |
| Connections | |
|---|---|
| Ethernet connection |
2 RayNet (10/100/1,000 Mbits/s) ports |
| NMEA 2000 connection |
DeviceNet connector |
| Wi-Fi |
Multiband - 2.4GHz, and 5Ghz 802.11b/g/n |
| Bluetooth |
v4.0 |
| Accessory connection |
USB Micro B |
| Internal storage |
64GB Solid State |
| External storage |
2 front mounted MicroSDXC card slots |
| Digital Video and Audio |
HDMI Out Micro connector type D |
| Analog video connections |
BNC Analog video input (on power cable) |
| Analog audio connections |
RCA connectors via power cable |
| External GPS anternna |
TNC connector |
| Power consumption @ 12 V dc |
Axiom Pro 9: 33.12 W Axiom Pro 12: 29.88 W Axiom Pro 16: 42.36 W |
| Power consumption @ 24 V dc |
Axiom Pro 9: 30.96 W Axiom Pro 12: 28.8 W Axiom Pro 16: 40.8 W |
| Operating voltage range |
8 V dc to 32 V dc |
| Nominal supply voltage |
12 V dc / 24 V dc |
| Off current @ 12 V dc |
11 mA (0.13 W) |
| Off current @ 24 V dc |
18 mA (0.43 W) |
| LEN (NMEA 2000 Load Equivalency Number) |
1 |
| Current |
5 A |
| Fuse rating |
15 A |
| GPS (GNSS) | |
|---|---|
| Position Accuracy |
Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
| Geodetic Datum |
WGS-84 (alternatives can be selected on the MFD) |
| Satellite Differential Type (SBAS) |
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
| Channels |
Track up to 28 satellites simultaneously |
| Antenna |
Internal - Ceramic chip mounted near top of unit |
| GNSS compatibility |
GPS, Galileo, GLONASS, Beidou |
| Almanac Update |
Automatic |
| Signal Acquisition |
Automatic |
| Receiver IC Sensitivity |
165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
| Operating frequency |
1574 MHz to 1605 MHz |
| Refresh rate |
10 Hz (10 times per second) |
| Time to first fix from cold start |
< 2 minutes |
| Operating temperature |
-25°C to +55°C (-13°F to 131°F) |
| Storage temperature |
-30°C to +70°C (-22°F to 158°F) |
| Relative humidity |
Up to 93% @ 40°C (104°F) |
| Waterproof rating |
IPx6, IPx7 |
| Size (diagonal) |
Axiom 2 Pro 9: 9.0" Axiom 2 Pro 12: 12.1" Axiom 2 Pro 16: 15.6" |
| Ratio |
Axiom 2 Pro 9: 16:9 Axiom 2 Pro 12: 16:9 Axiom 2 Pro 16: 16:10 |
| Resolution |
Axiom 2 Pro 9: 1280 x 720 HD Axiom 2 Pro 12: 1280 x 800 WXGA Axiom 2 Pro 16: 1920 x 1080 FHD |
| Viewing angle |
Top 88° / Bottom 88° / Left 88° / Right 88° |
| Type |
IPS (In-Plane Switching) |
| Color depth |
24-bit |
| Illumination |
Axiom 2 Pro 9 1300 nits / 1300 cd/m2 |
| Number of simultaneous touches |
1 to 16 |
| Channels |
CHIRP conical sonar |
| Depth range |
0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions |
| Transducer connection |
25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers |
